Specified values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Check wire connection between instrument cluster and sender for fuel gauge -G- or -G169- according to wiring diagram if specified values are not obtained.

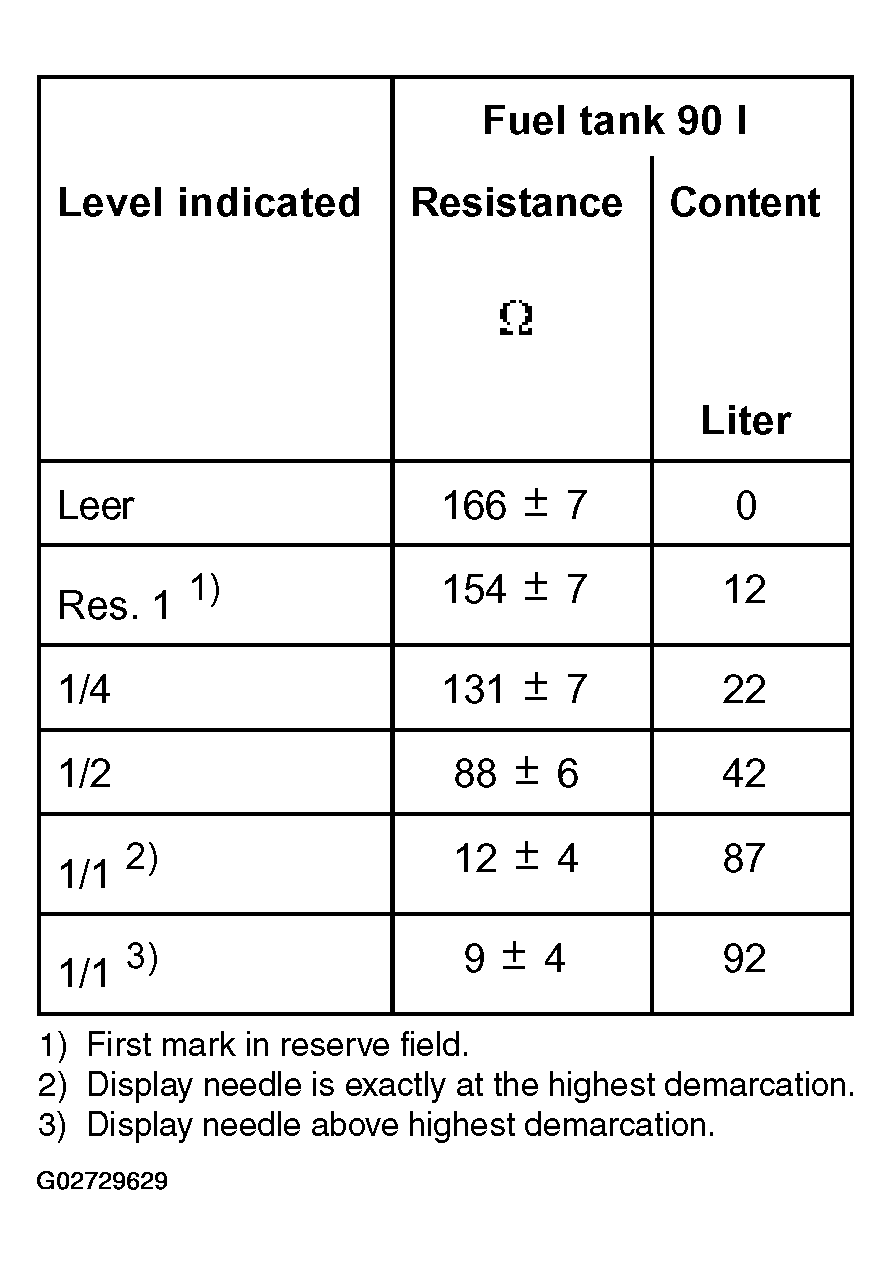

Fig 1: Fuel Gauge Sender Specified Values Chart
Courtesy of AUDI OF AMERICA, INC.

See appropriate System Wiring Diagram article.
Check sender for fuel gauge -G- or -G169- if there is neither an open circuit or a short circuit.
Check sender for fuel gauge.
See FUEL SUPPLY COMPONENTS, REMOVING AND INSTALLING .
If specified values are not obtained, malfunction is at instrument cluster, i.e. instrument cluster must be replaced. See INSTRUMENT CLUSTER, REMOVING AND INSTALLING .
