Display group overview:

NOTE: Some OBD program text/data generated by control modules may not be recognized by VAG 1551/1552 scan tools with the latest program card. For example: scan tool display shows "text 799", "01529 /references" or similar. In these cases, use VAS 5051 tester instead.

Fig 1: Display Group Overview, Telematics (Group Nos. 001 To 005)

Courtesy of AUDI OF AMERICA, INC.

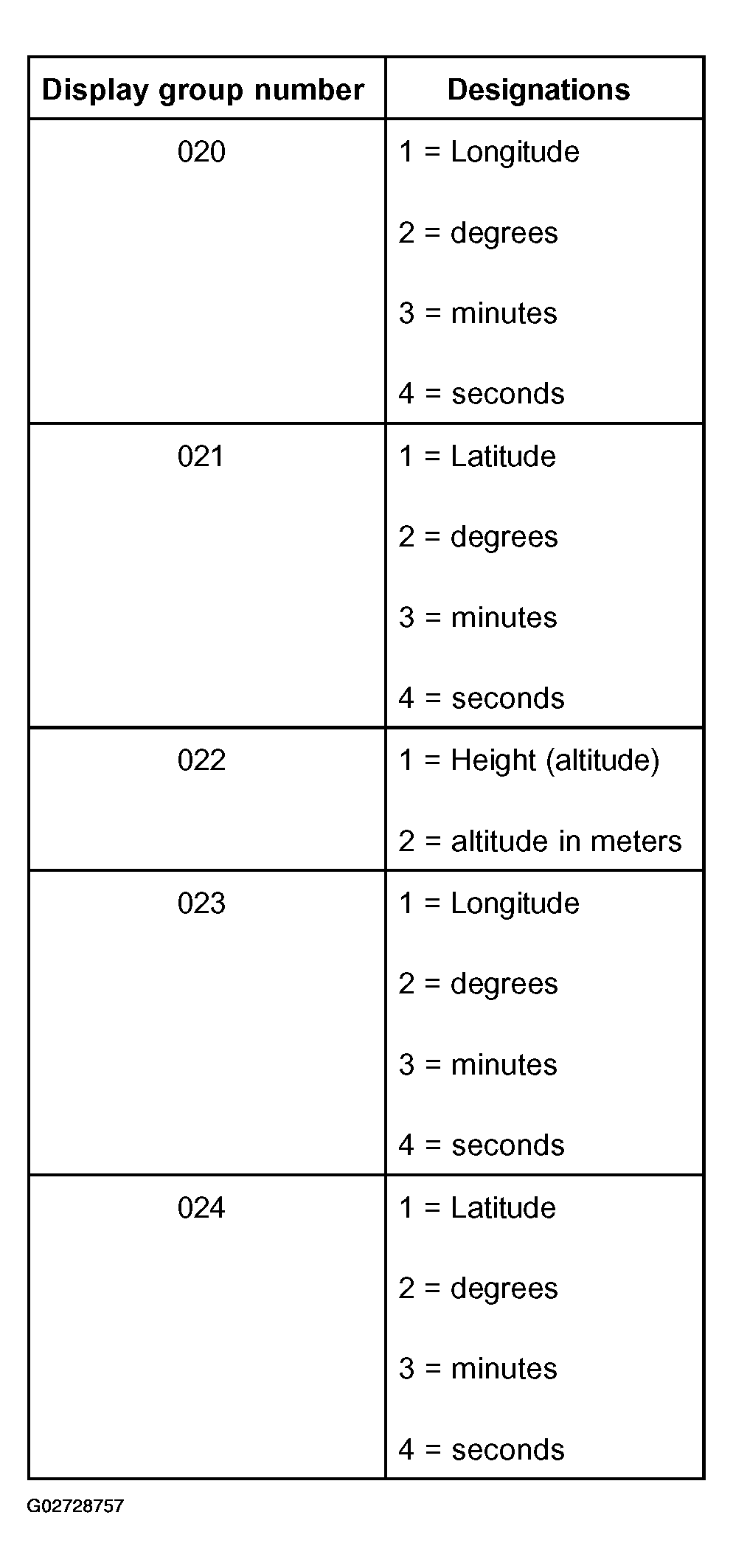

Fig 2: Display Group Overview, Telematics (Group Nos. 020 To 024)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Display groups 020 to 025 and 028 have no meaning for service.

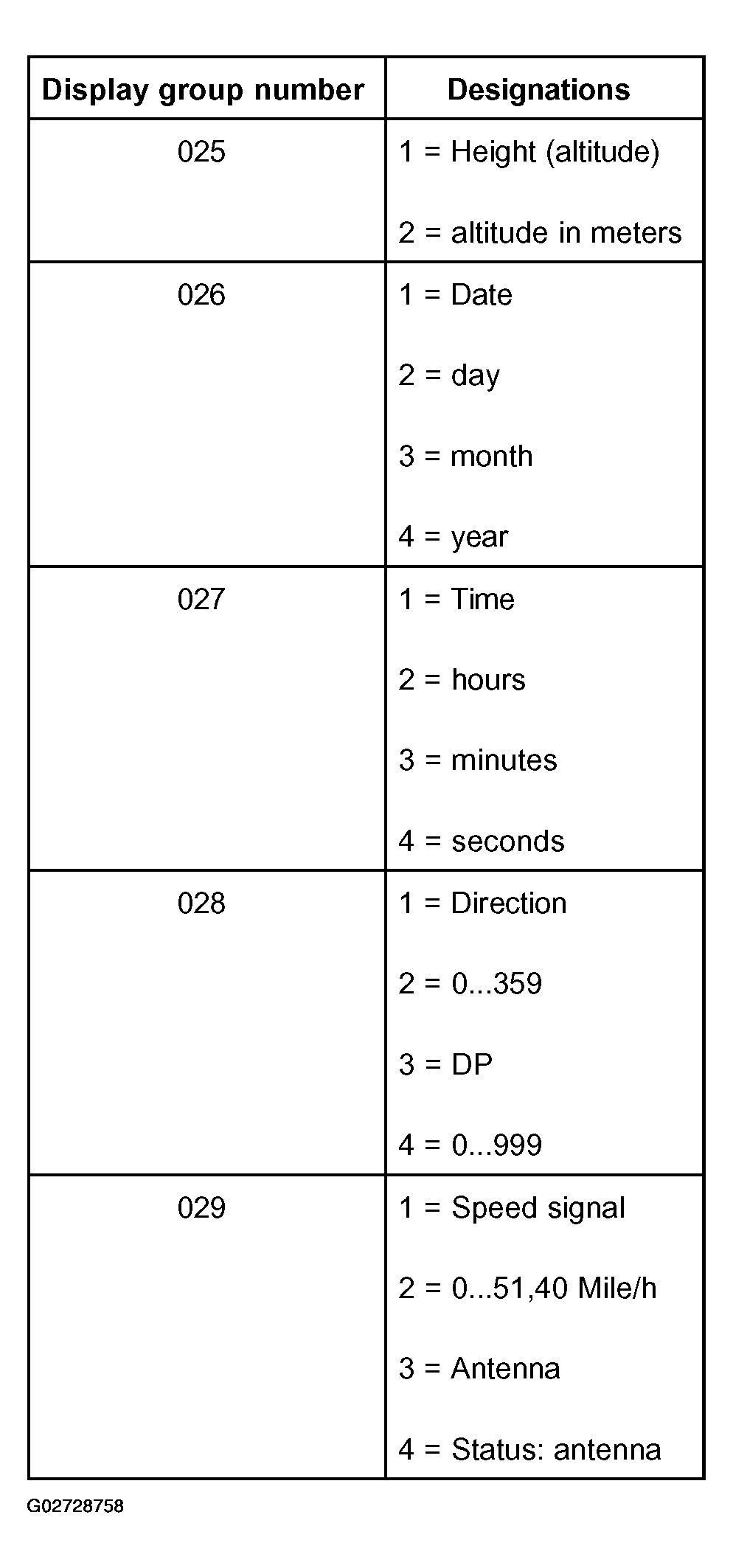

Fig 3: Display Group Overview, Telematics (Group Nos. 025 To 029)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Display groups 020 to 025 and 028 have no meaning for service.

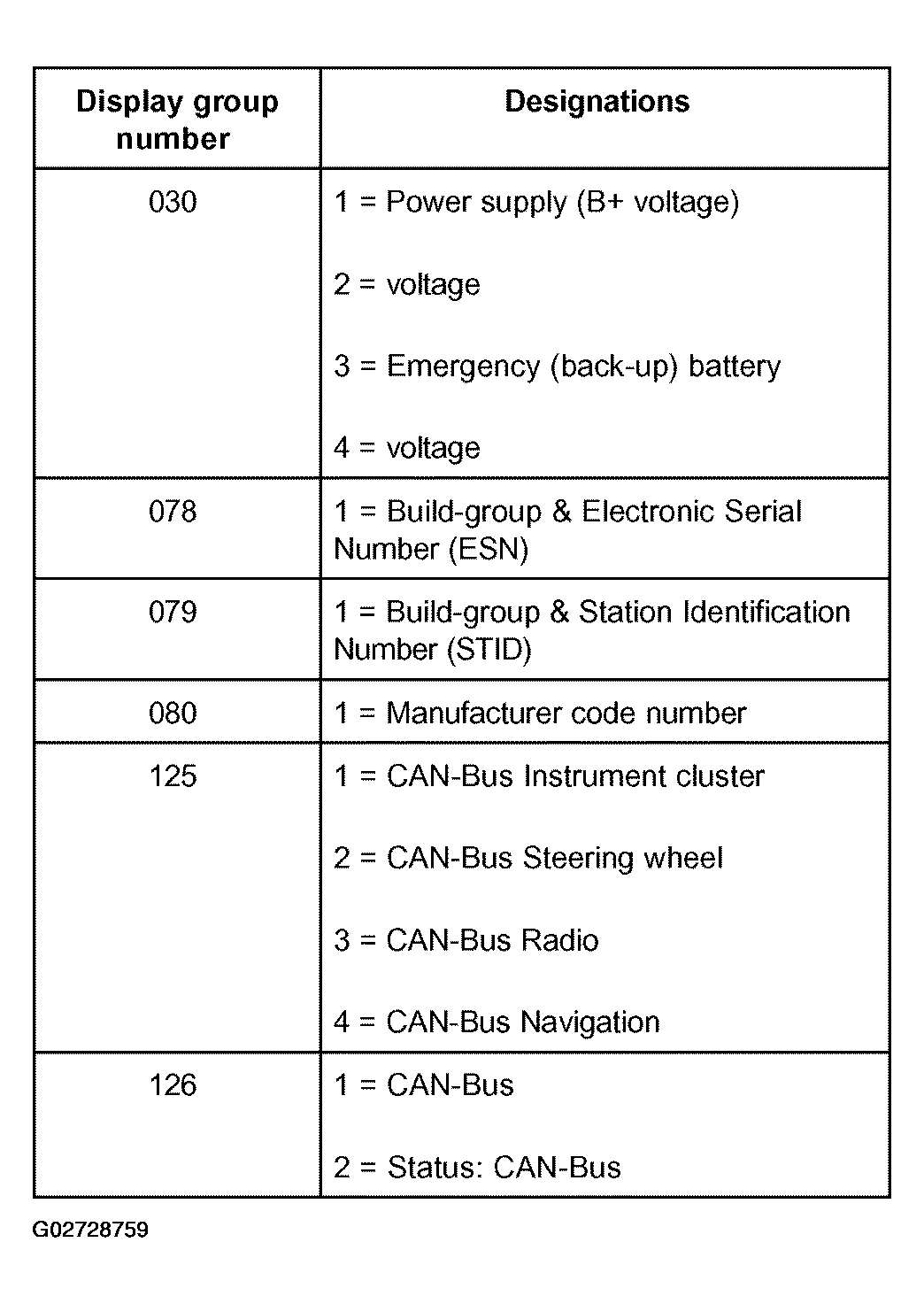

Fig 4: Display Group Overview, Telematics (Group Nos. 030 To 126)

Courtesy of AUDI OF AMERICA, INC.
