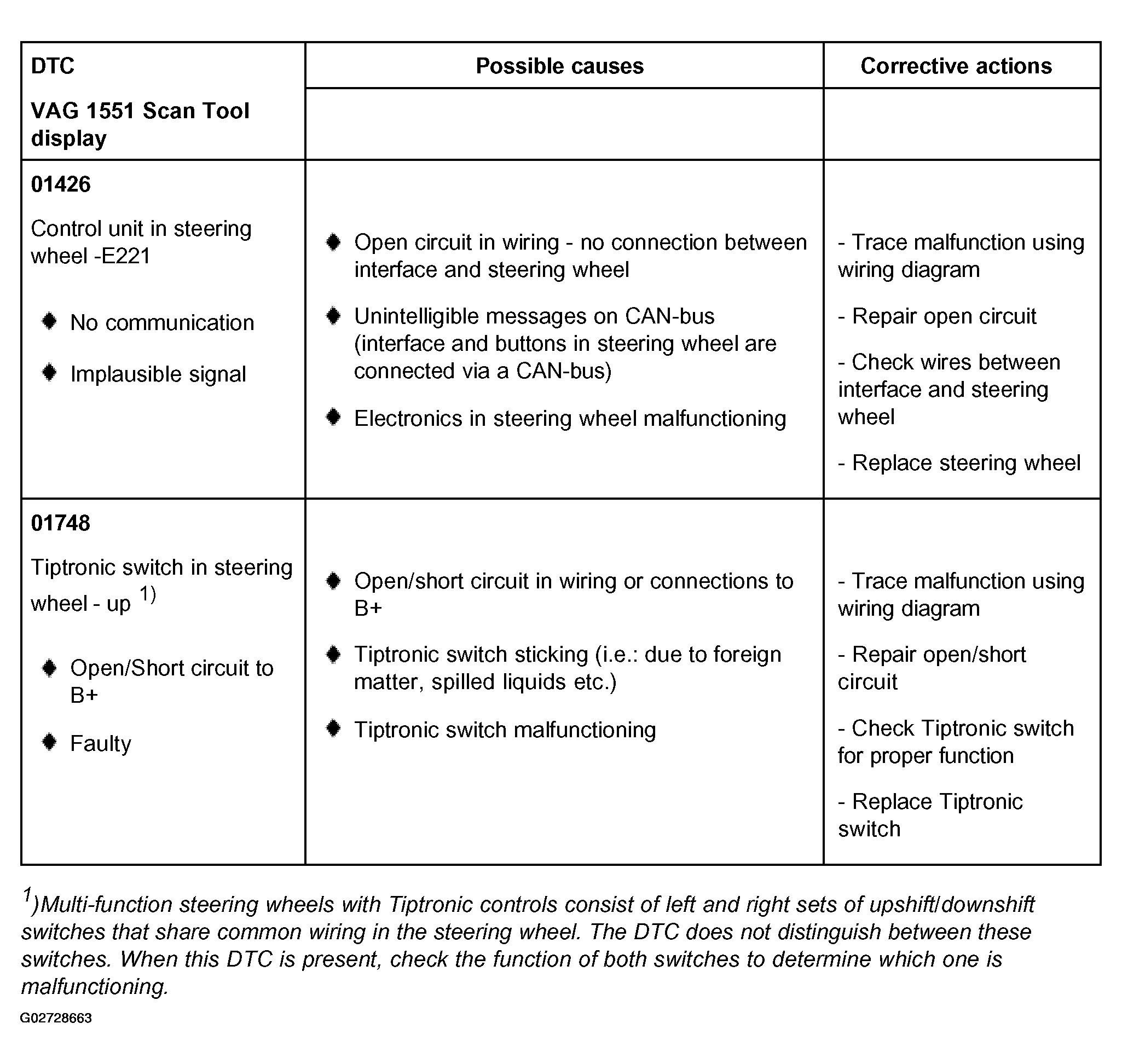

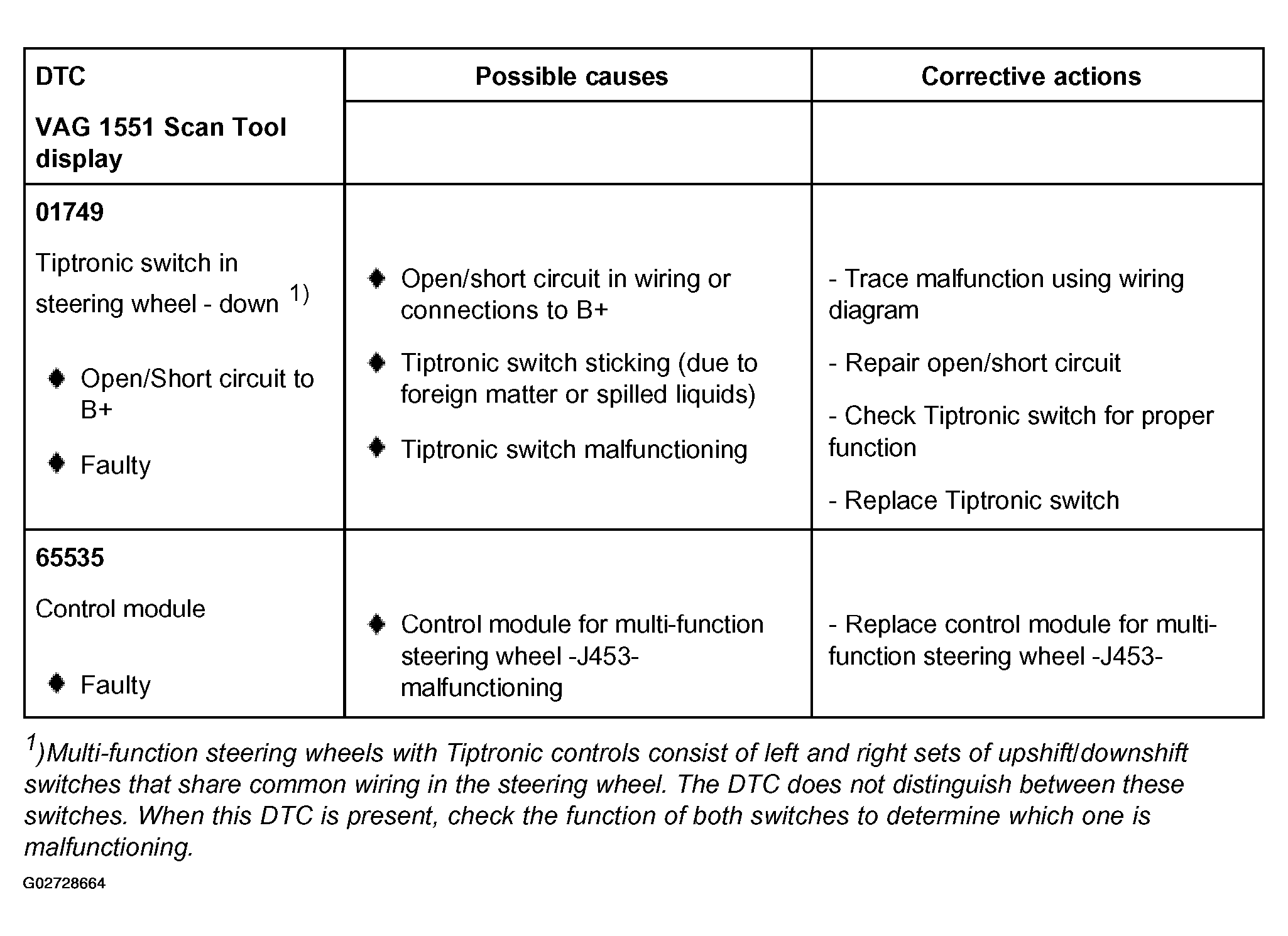

Diagnostic Trouble Code (DTC) table
- The following list contains all malfunctions that can be recognized by the multi-function steering wheel and printed out by the VAG1551 scan tool. The malfunctions are listed in order according to their 5-digit numbers.
- DTC numbers appear only on the print-out.
- Before replacing a component shown as faulty, check the wiring and connections to the component as well as the Ground (GND) connections according to wiring diagram.
- After repairs and function test of the system, DTC memory must always be checked again using the VAG1551 scan tool and erased.
- DTC memory records all static and sporadic malfunctions: If a malfunction occurs and persists for at least 2 seconds, it is identified as a static malfunction. If a malfunction does not occur again, it is registered as sporadic. "ISP" will appear at right on scan tool display.
- When the ignition is switched on, all existing malfunctions are automatically re-classified as sporadic malfunctions and will only register as static malfunctions if they still occur after testing.
- Sporadic malfunctions which no longer occur during 40 driving cycles (ignition on at least 5 minutes, vehicle speed 30 km/h) are erased automatically.
- The three digit malfunction type number appearing next to the DTC is a data code and can be ignored.
NOTE:
Texts associated with DTCs appearing in the scan tool display may differ slightly from those given here.
- For replacing Tiptronic switch, see MULTI-FUNCTION STEERING WHEEL SWITCHES/BUTTONS, REMOVING AND INSTALLING .
- For replacing control module for multi-function steering wheel -J453-, see CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING .
