Rear window shade motor, removing and installing: Installing

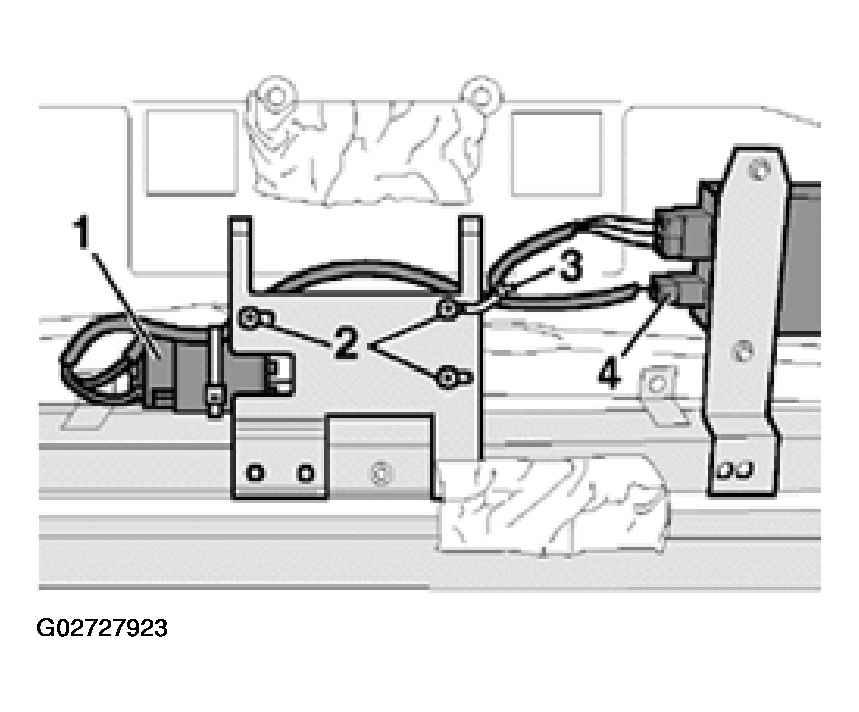

Fig 1: Fastening Rear Window Shade Motor With Bolts To Bracket

Courtesy of AUDI OF AMERICA, INC.

Install drive disc -2- in drive gear of motor, if necessary.
Replace bolt -1- for drive disc and tighten with bolt.
Tightening torque: 8 Nm (71 in.lb.)

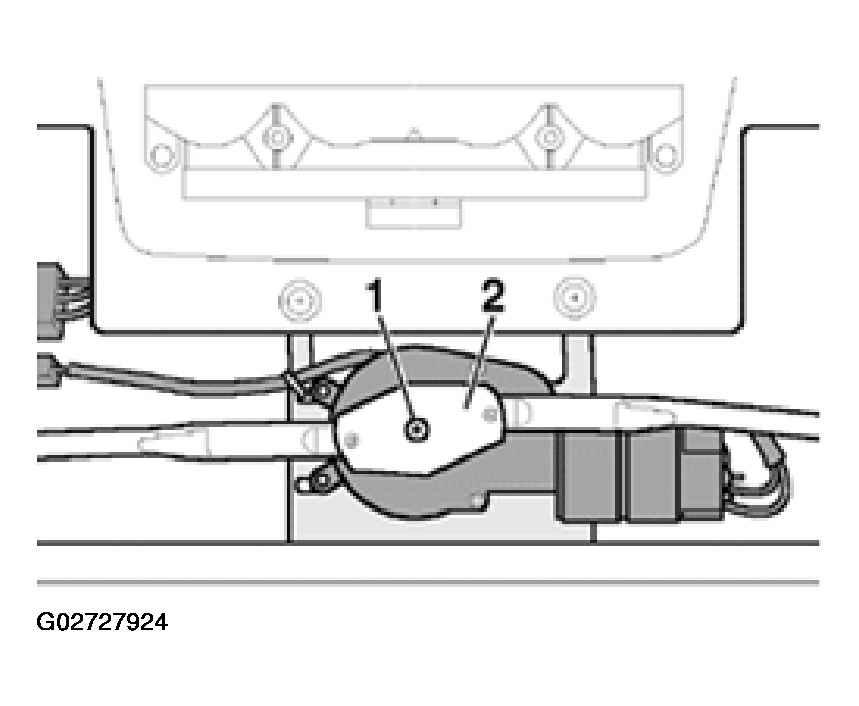

Fig 2: Installing Drive Disc In Drive Gear Of Rear Window Shade Motor

Courtesy of AUDI OF AMERICA, INC.

Apply a voltage of 12 V to rear shade motor and let shade come down completely.
Tighten bolts -2- with shade rolled up securely.
Tightening torque: 8 Nm (71 in.lb.)

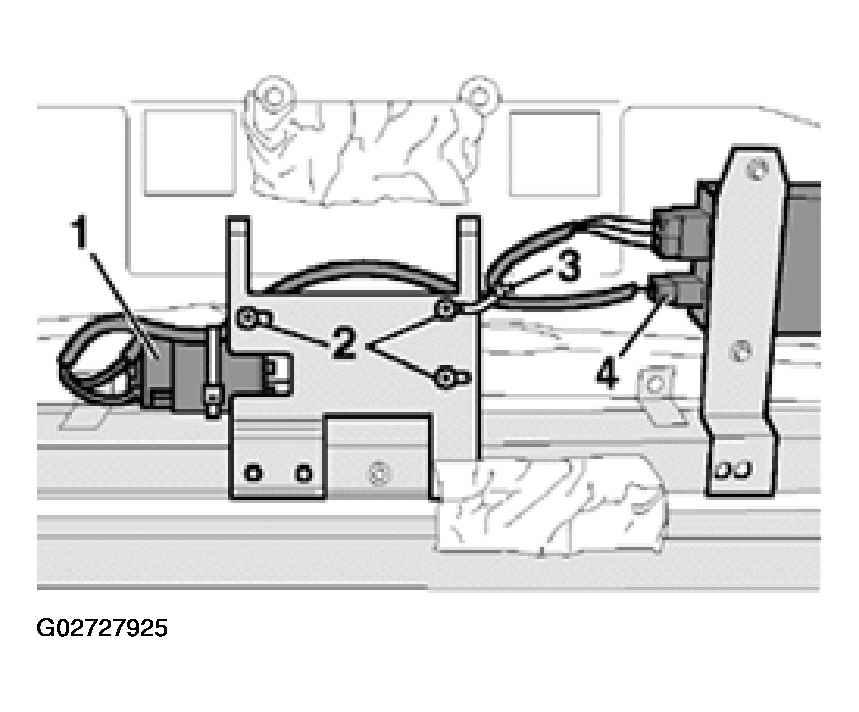

Fig 3: Locating Rear Window Shade Motor Bolts

Courtesy of AUDI OF AMERICA, INC.

Apply a voltage of 12 V to rear shade motor and let shade come down completely.
Roll shade up again several times.
If lever arm is not completely extended, loosen screws -2- and slide motor into slots.
- Left lever arm extends earlier: Slide motor to right.
- Right lever arm extends earlier: Slide motor to left.
Check, if necessary, that lever arms move evenly.
Connect connector -4- to motor control module for rear shade and secure using tie wrap -3-.

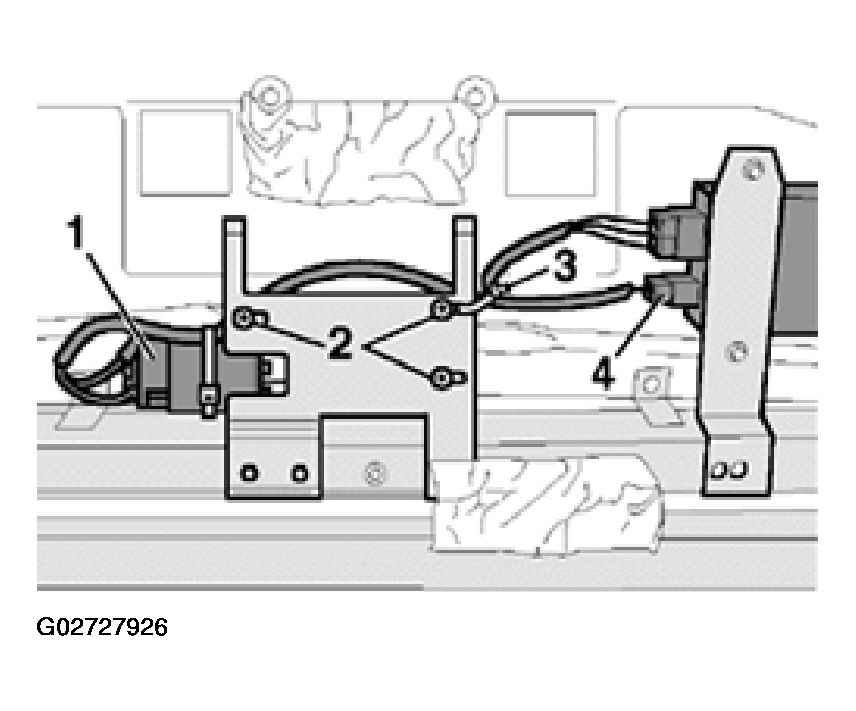

Fig 4: Locating Screws, Connecting Connector & Securing With Tie Wrap - Rear Window Shade Motor

Courtesy of AUDI OF AMERICA, INC.
