Support for instrument panel, removing and installing

NOTE: The following list refers to Fig 1.
  1. Support for instrument panel
    • With air duct tubes installed in support
    • Removing:
  2. Hex bolt
    • 8 Nm (71 in.lb.)
    • 4 parts
  3. Bracket for instrument panel
    • 4 parts
  4. Hex socket bolt
    • 5 Nm (44 in.lb.)
    • 8 parts
  5. Support for passenger airbag
  6. Hex socket bolt
    • 5 Nm (44 in.lb.)
    • 3 parts
  7. Hex socket bolt
    • 5 Nm (44 in.lb.)
    • 2 parts
  8. Air duct, right
  9. Pop rivet
    • 6 parts
  10. Hex socket bolt
    • 5 Nm (44 in.lb.)
  11. Lock for glove box
    • 2 parts
  12. Right support for radio/navigation system
    • Loosen bolts -16- to adjust gap between instrument panel, center part and instrument panel
  13. Hex socket bolt
    • 5 Nm (44 in.lb.)
  14. Hex socket bolt
    • 8 Nm (71 in.lb.)
    • 2 parts
  15. Left support for radio/navigation system
    • Loosen bolts -16- to adjust gap between instrument panel, center part and instrument panel
  16. Hex bolt
    • 5 Nm (44 in.lb.)
  17. Hex socket bolt
    • 5 Nm (44 in.lb.)
    • 2 parts
  18. Hex socket bolt
    • 5 Nm (44 in.lb.)
    • 4 parts
  19. Reinforcement panel
  20. Left air duct
  21. Pop rivet
    • 6 parts
  22. Hex socket bolt
    • 5 Nm (44 in.lb.)
    • 3 parts
  23. Bracket for ABS/EDS control module

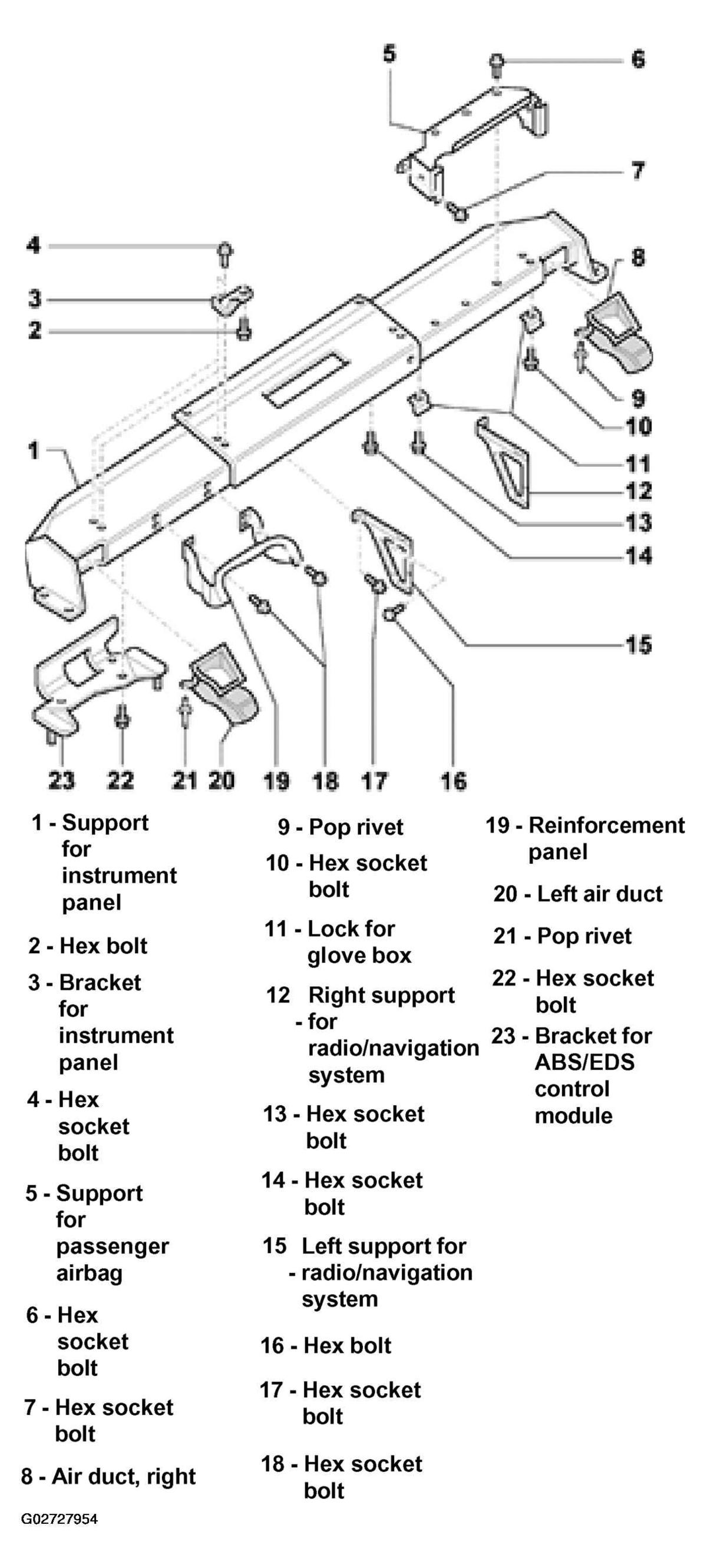

    24. Fig 1: Identifying Support For Instrument Panel
    G02727954Courtesy of AUDI OF AMERICA, INC.
