Instrument panel, removing and installing: Removing: All:

Place steering column switch -4- with connected wires to side.
Loosen clamping bolt -3- and remove steering column switch left -1- from steering column.

Lines remain connected.

Fig 1: Removing Bolts & Cover

Courtesy of AUDI OF AMERICA, INC.

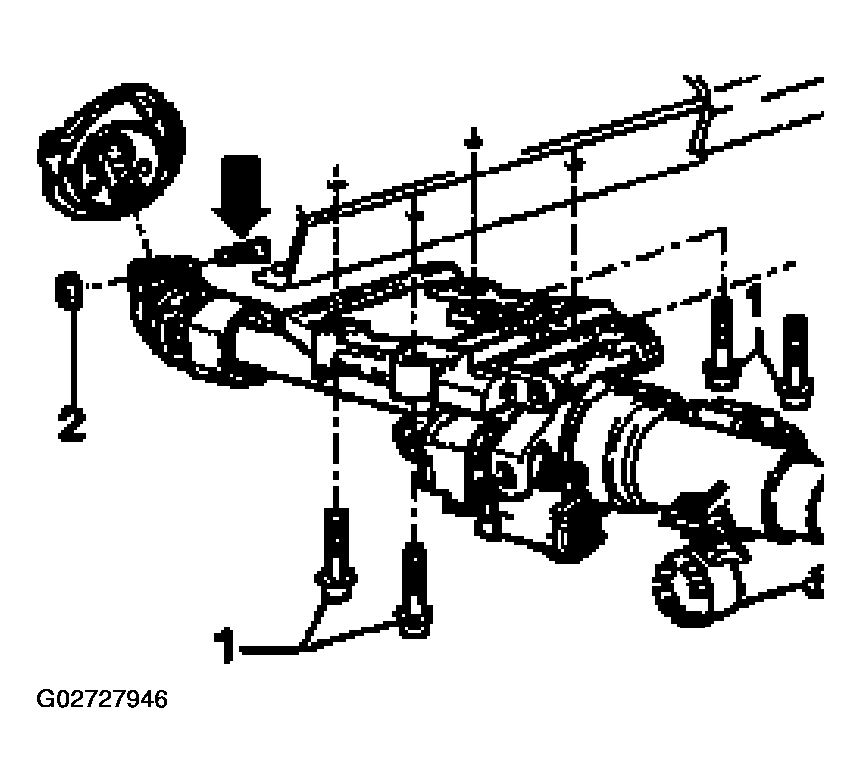

Remove steering column from support for instrument panel (bolts -1-) and place in foot outlet.
- Do not pull steering column apart!
NOTE: Do not loosen nut -2-!

Fig 1: Removing Steering Column From Support

Courtesy of AUDI OF AMERICA, INC.

Remove control module for ABS/EDS from support for instrument panel.
Where available, unhook auxiliary relay at support for instrument panel.

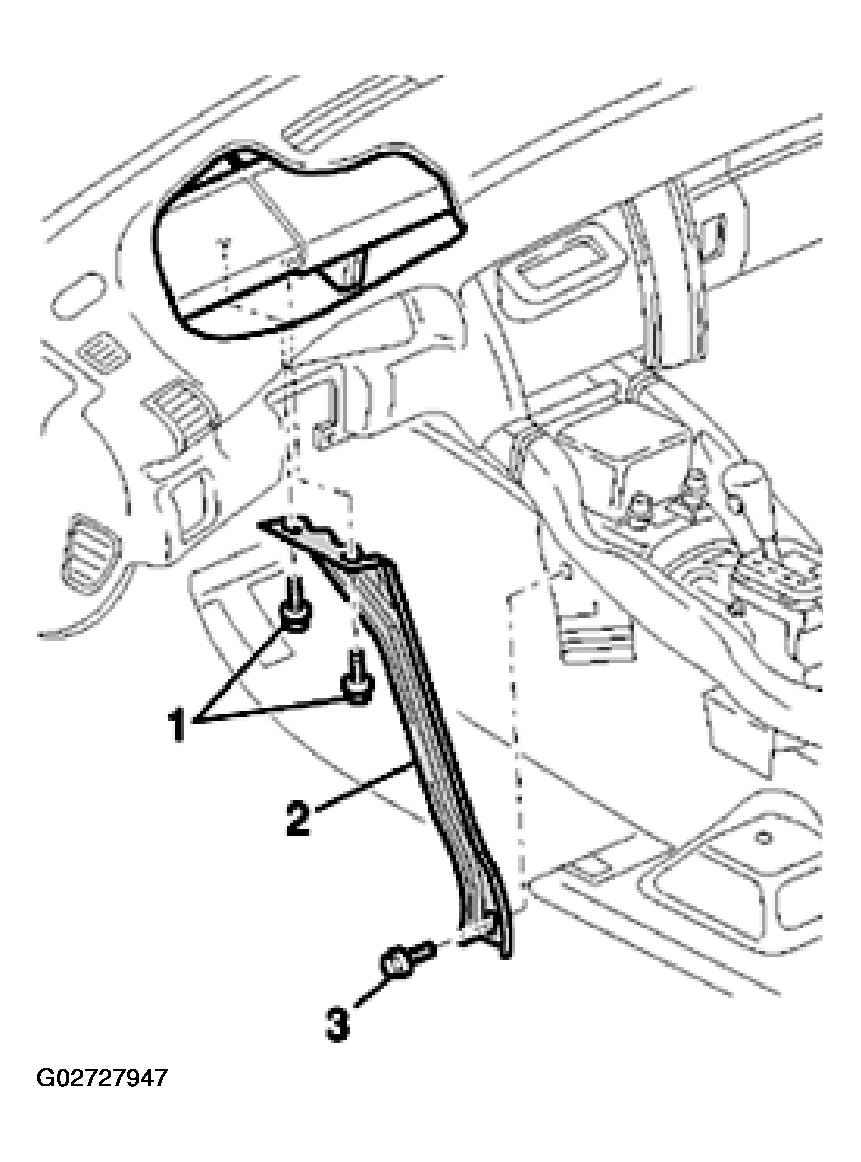

Remove support -2- between support for instrument panel and transmission tunnel (screws -1- and -3-).

Fig 2: Removing Support Between Support For Instrument Panel And Transmission Tunnel

Courtesy of AUDI OF AMERICA, INC.
