Rear door trim, removing and installing
>>
Installing
Rear door trim, removing and installing: Installing
Installation is done in reverse sequence, noting the following:
Make sure all retaining clips -2- lock correctly into support for door installation components.

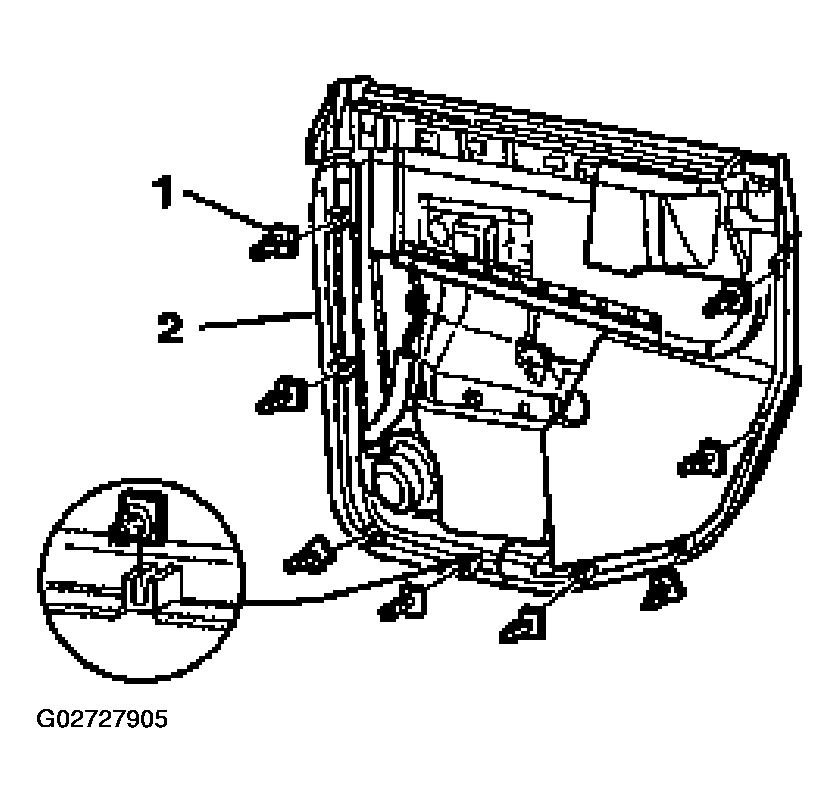

Fig 1: Identifying Locked Retaining Clips
Courtesy of AUDI OF AMERICA, INC.
