Rear Wheel Cylinder: Reassembly

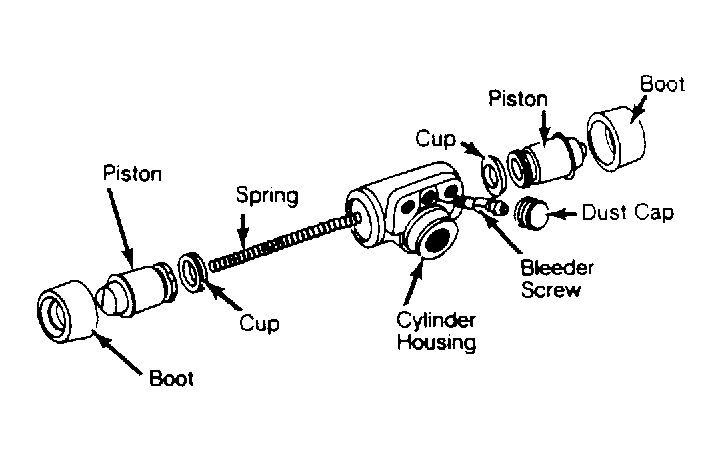

Always use all parts in repair kit. Lightly coat cups, pistons and bleeder screws with brake cylinder paste before installing. To reassemble, reverse disassembly procedure. See Figure .
