Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 1989 Audi 90, 1989 Audi 80, 1989 Audi 200, 1989 Audi 100, and 1988 Audi 90. However, it is still accessible from the selected car via links, so may be relevant.

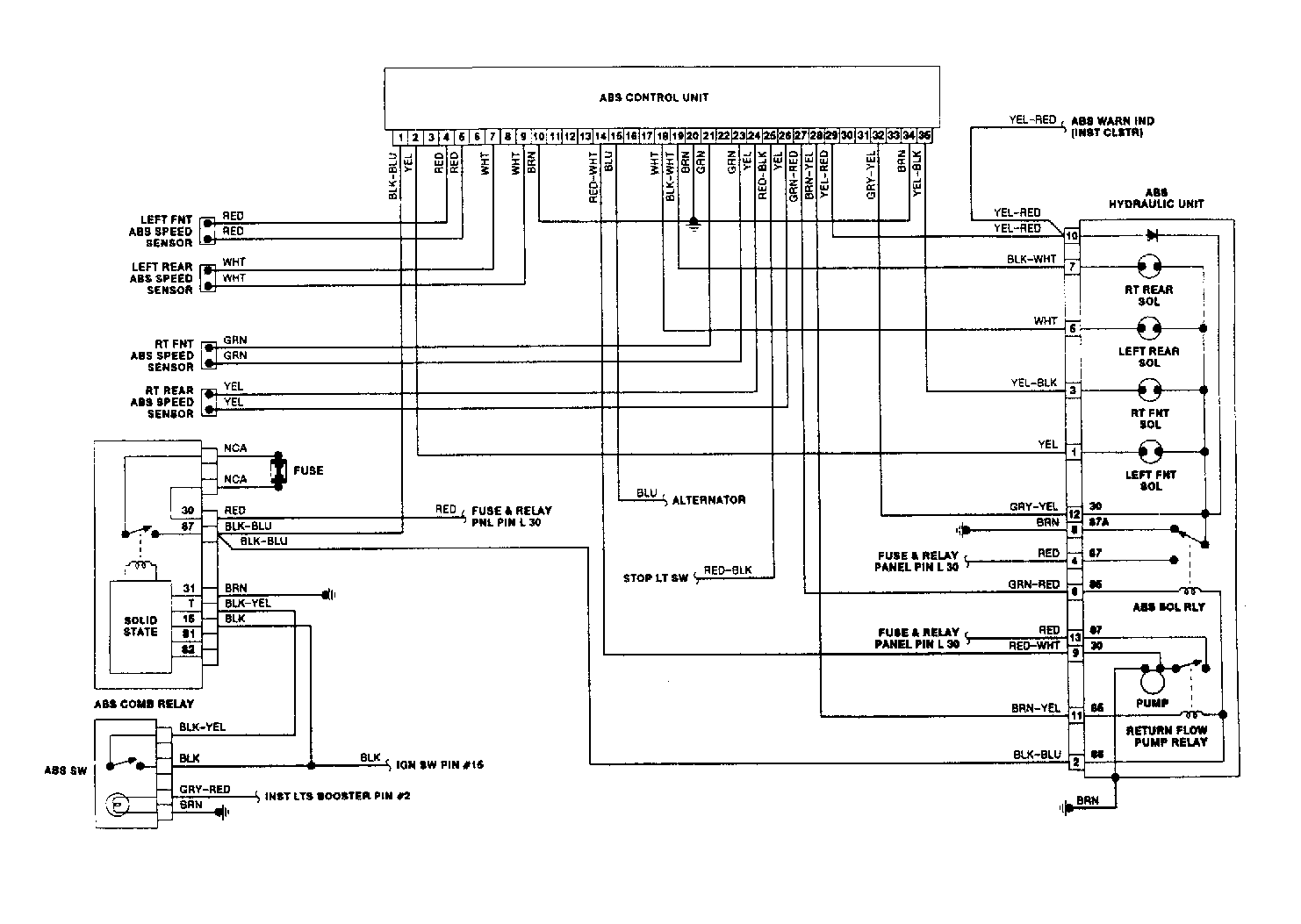

Fig 1: 5000CS & Quattro ABS Wiring Diagrams (Non-Turbo)

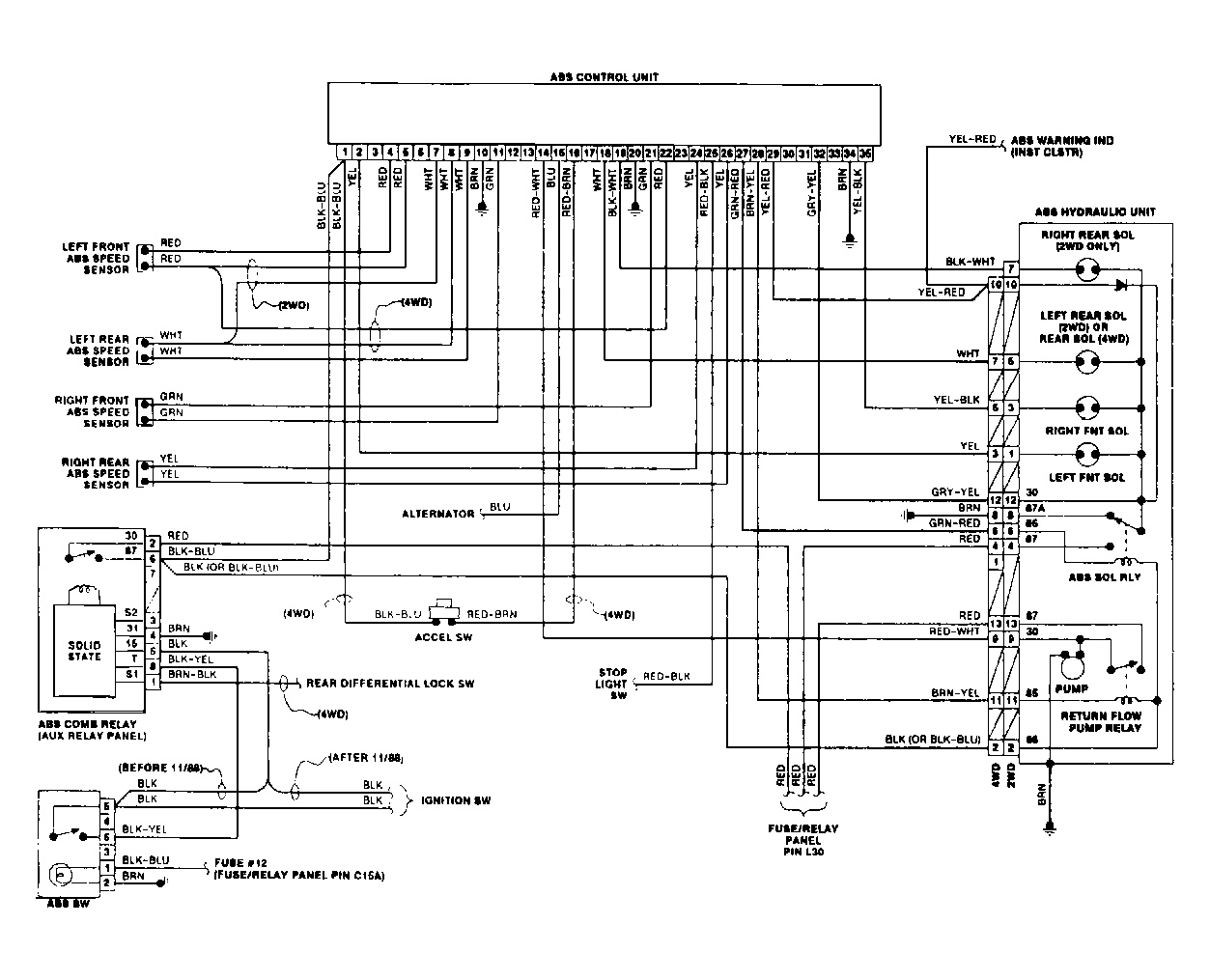

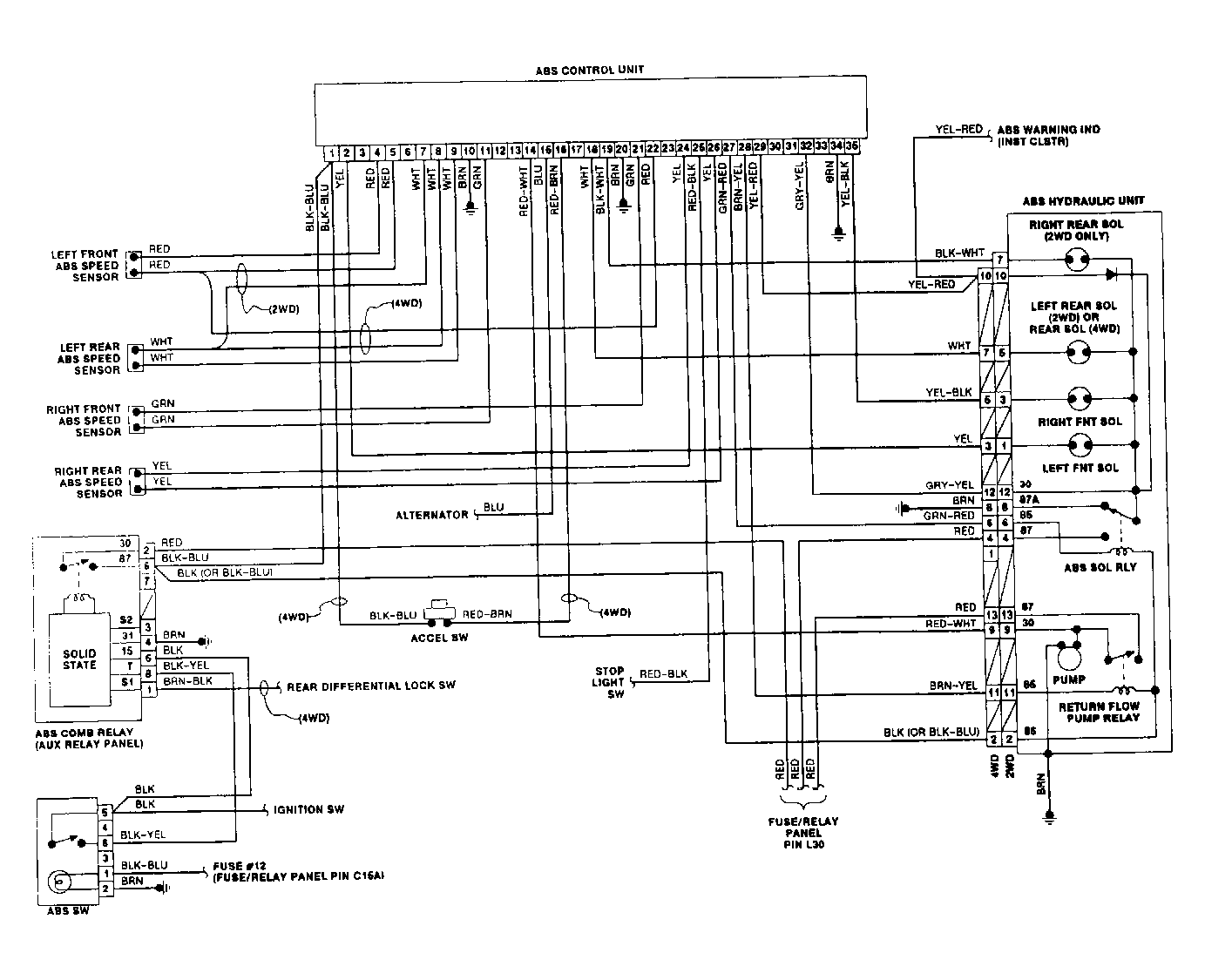

Fig 2: 80/90 Quattro ABS Wiring Diagram

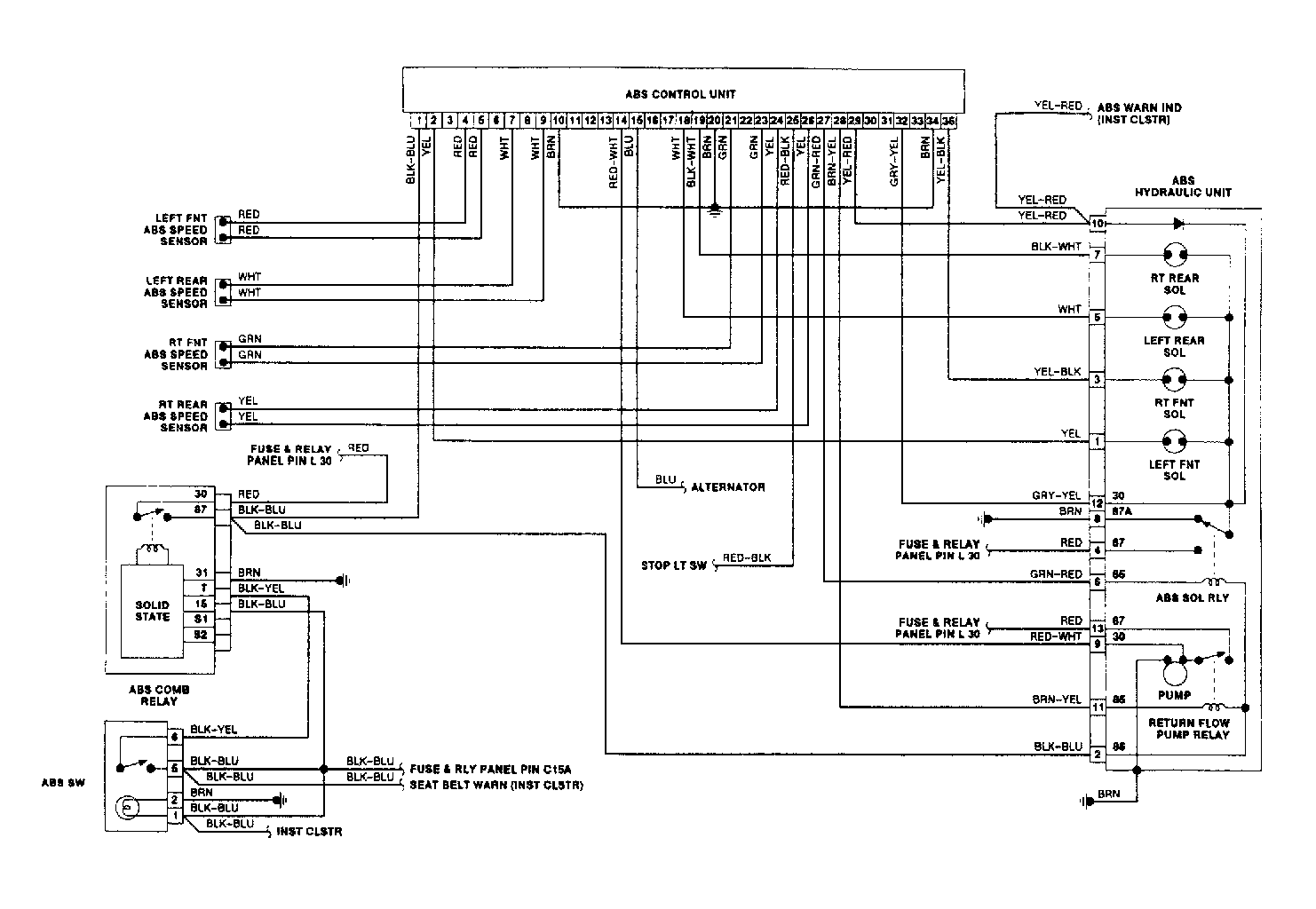

Fig 3: 90 2WD ABS Wiring Diagram

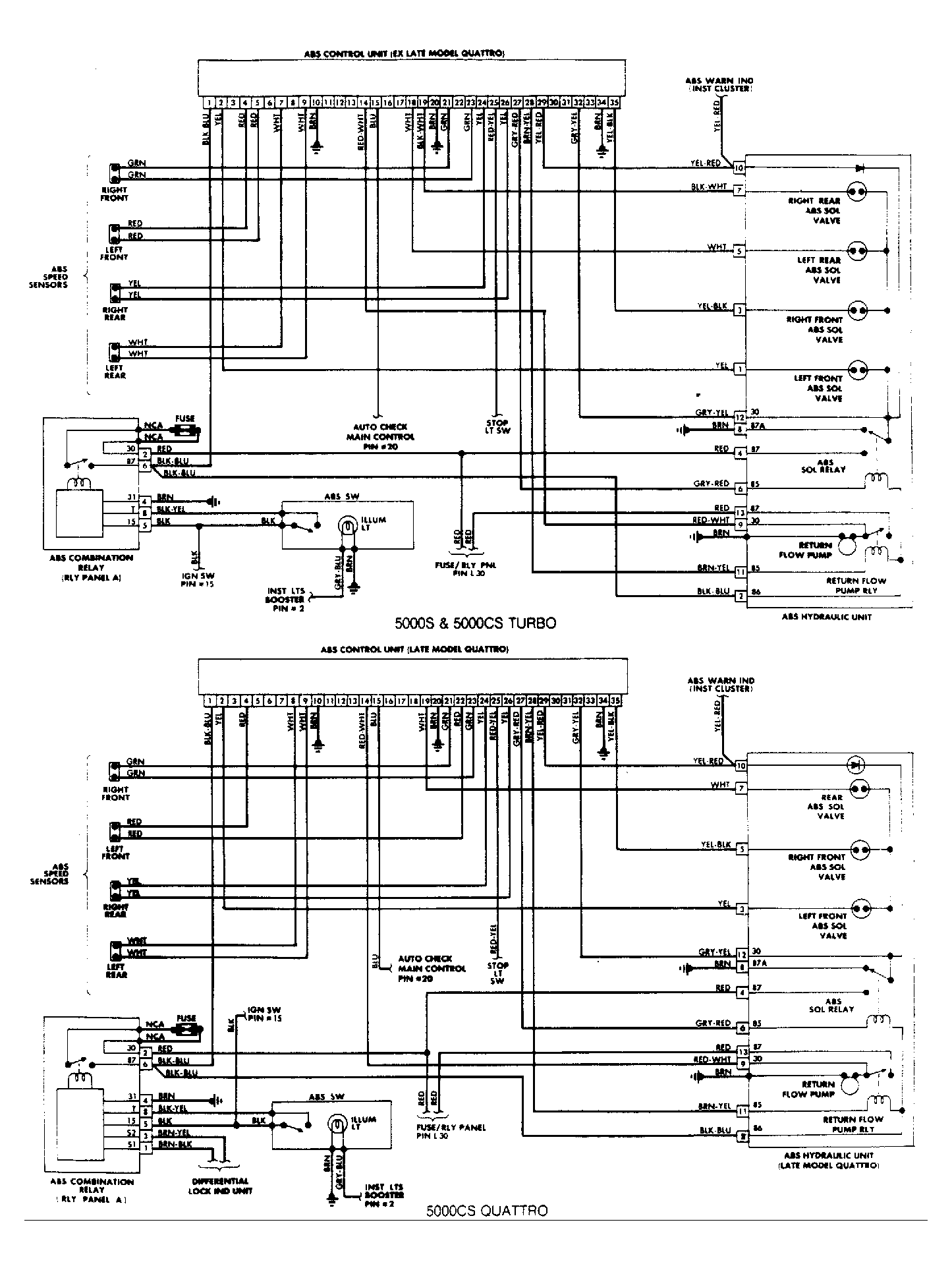

Fig 4: 5000S ABS Wiring Diagram

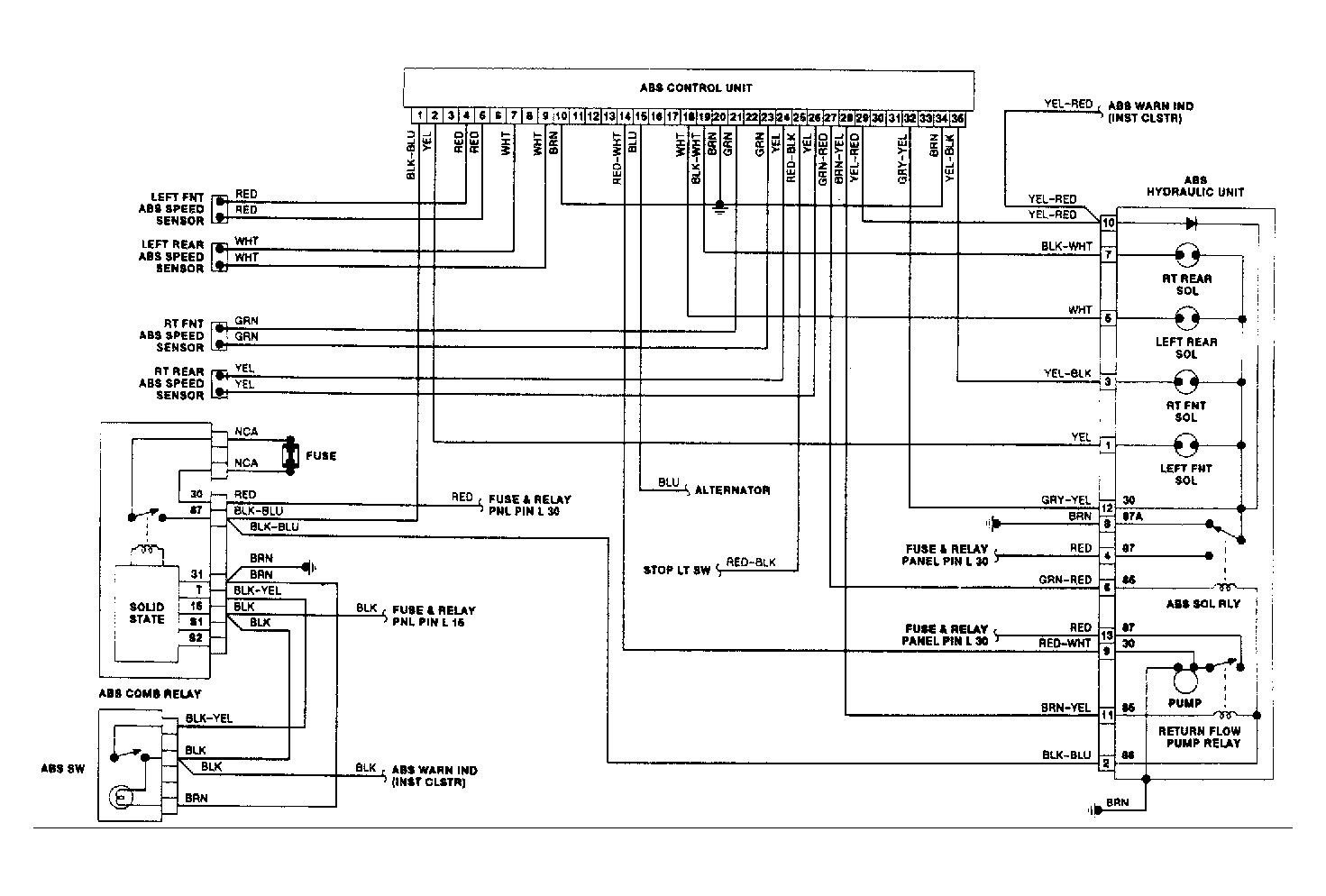

Fig 5: 5000CS 2WD ABS Wiring Diagram

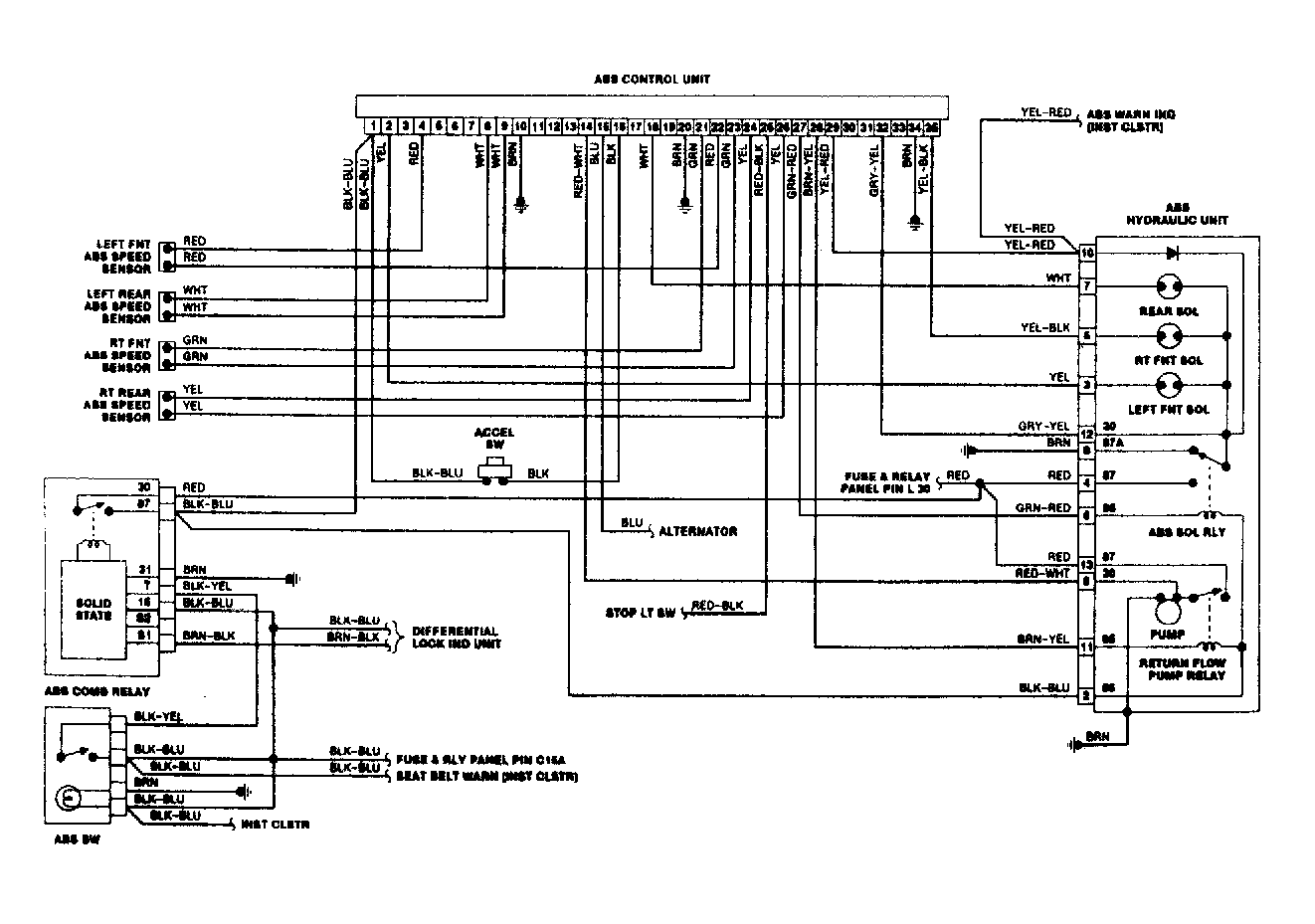

Fig 6: 5000CS Wagon & Quattro (Turbo Models) ABS Wiring Diagram

Fig 7: 100/200 2WD ABS Wiring Diagram

Fig 8: 100/200 Quattro ABS Wiring Diagram
