Suspension - Rear: Description

Rear suspension on Audi Coupe and 4000 consists of coil springs, shock absorbers, transverse rod and trailing arms. Some design differences occur between models.

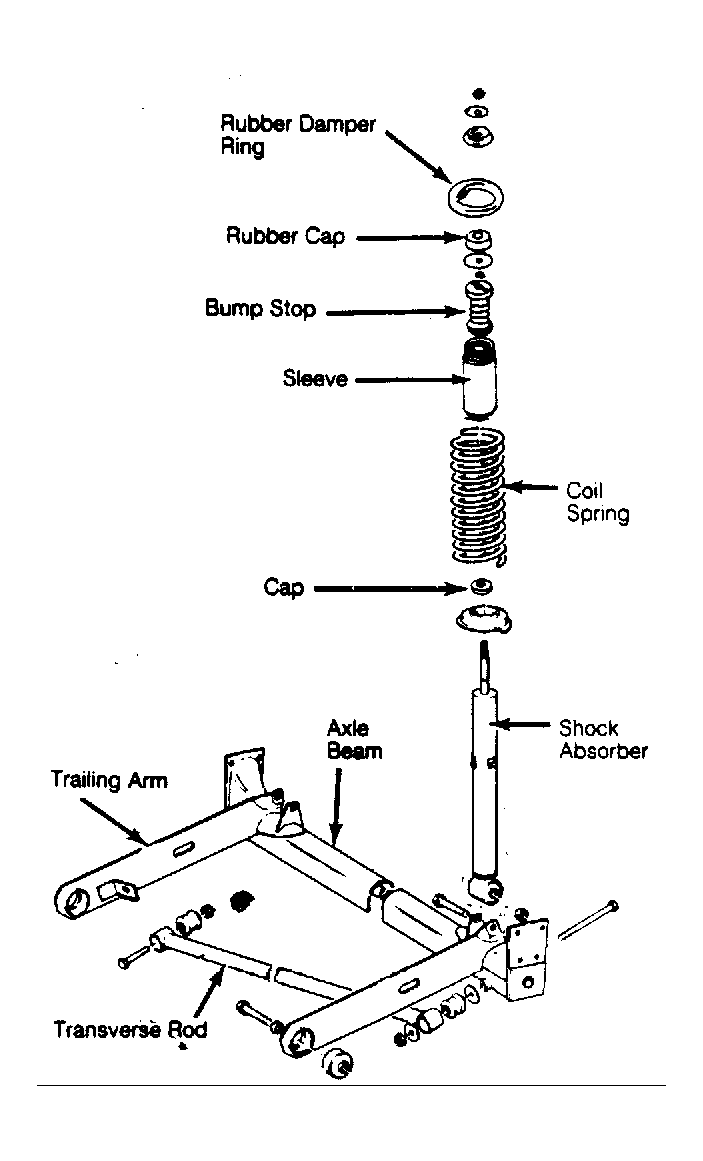

On Coupe and 4000, the coil spring and shock absorber are combined into a MacPherson strut type assembly. A transverse rod is also used, and mounts diagonally in front of the axle beam. See Figure .
