Removal (Coupe, 4000 & 5000)

  1. Remove master cylinder from power brake unit. Remove pin at brake pedal, and disconnect operating rod.
  2. Remove mounting nuts from firewall. Disconnect vacuum line, and remove power unit.

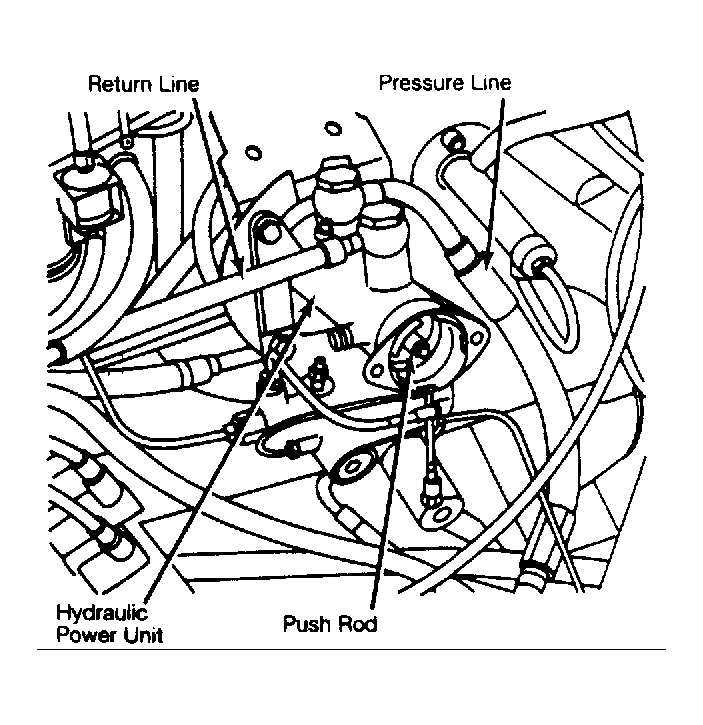

Fig 1: Hydraulic Power Brake Unit (5000 Turbo)
G50014
