Removal (5000 Turbo)

  1. Remove master cylinder from power brake unit. Disconnect pressure line and return line from power unit.
  2. Remove push rod clevis pin. Remove power unit mounting bolts and power unit.

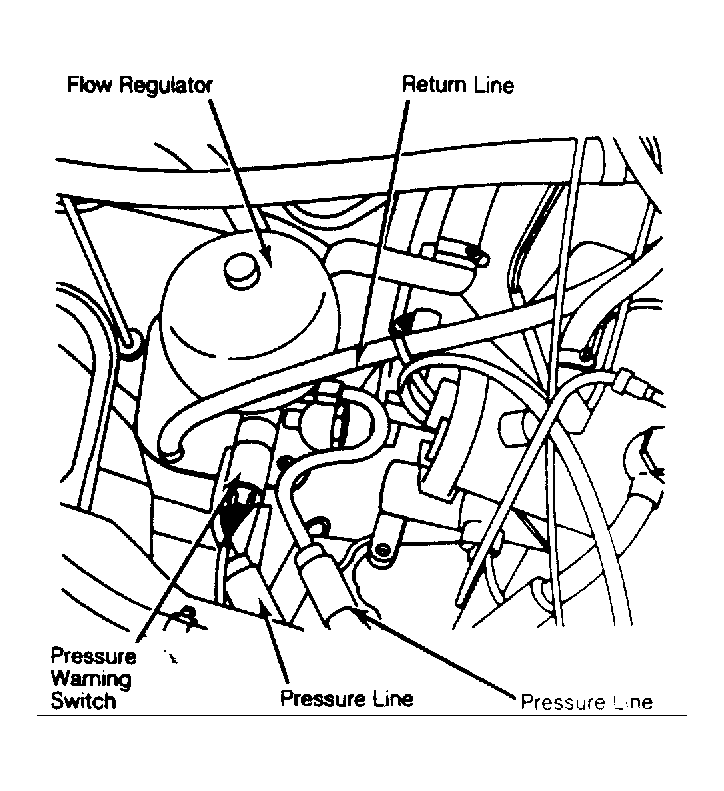

Fig 1: Flow Regulator With Pressure Accumulator Flow regulator is located near master cylinder.
G50015
