Removal (Coupe, 4000, 5000 Turbo)
- Raise and support vehicle. Remove tire and wheel. Using hand pressure, force caliper to slide outward (toward outer wheel bearing) to seat piston in caliper bore.

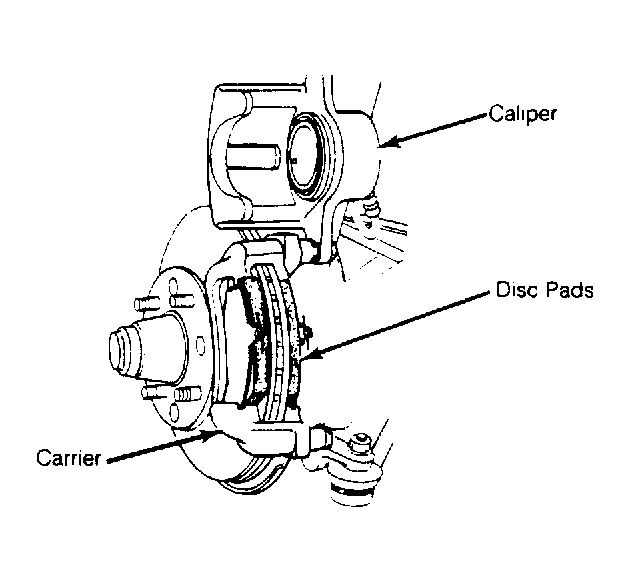

- Hold guide pin head with open end wrench while removing lower mounting bolt. Rotate caliper assembly upward. See Fig 1. Remove disc pads from carrier.
