Installation (5000)
- Install brake pads in caliper (inner pad first) making sure to align pegs on outer brake pad with holes in caliper.

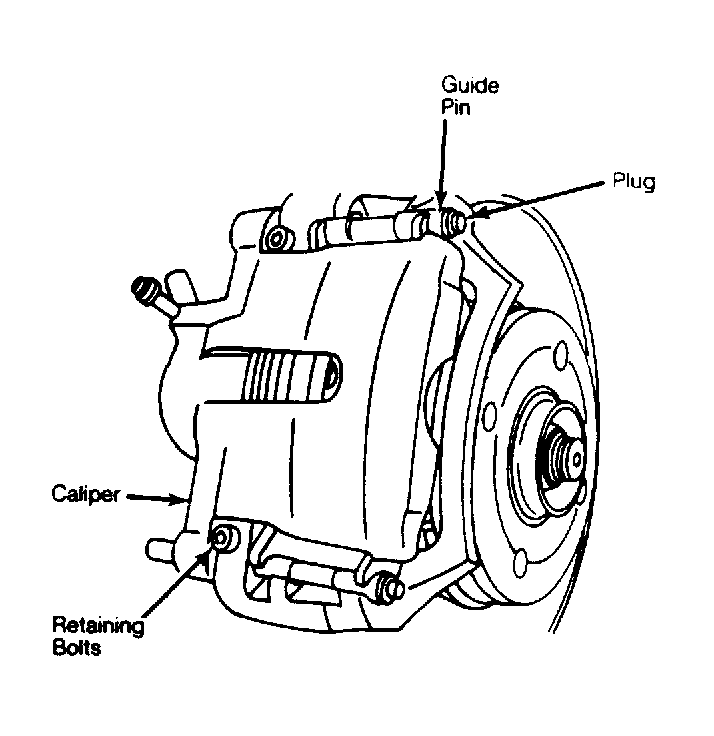

- Install caliper assembly into mounting frame. Push caliper guide pins into mounting frame as far as possible. Install new Allen head guide pin retaining bolts in mounting frame, and replace plugs in ends of guide pins.
