Rear Disc Brake Caliper: Reassembly

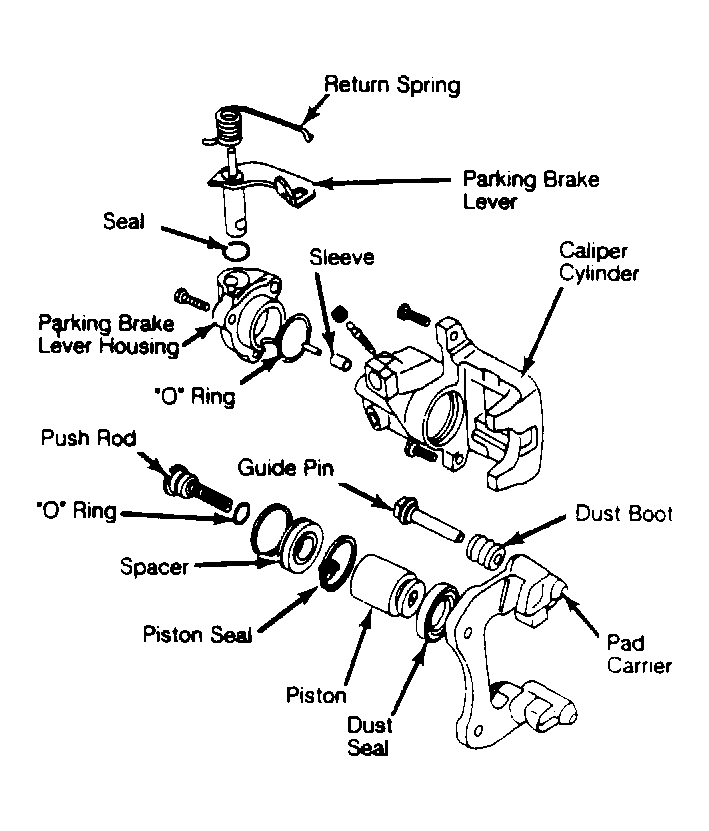

- Coat piston, piston seal and parking brake guide pin with brake paste. Fit seal into cylinder groove. Slide dust seal onto piston. Install spacer, "O" ring and seal onto push rod. Fit push rod into piston. Push piston into caliper bore from rear.
- Replace seals on parking brake lever assembly, and then install return spring and brake lever into housing. Install guide pin and sleeve in housing. Fit parking brake lever housing to rear of caliper and ensure push rod pin aligns with housing. Install and tighten bolts. Pre-bleed caliper assembly.
