Cleaning & Inspection

Clean all parts in alcohol and check for rust, corrosion, or other damage. Replace parts as necessary. Make sure compensating and filler holes are not plugged.

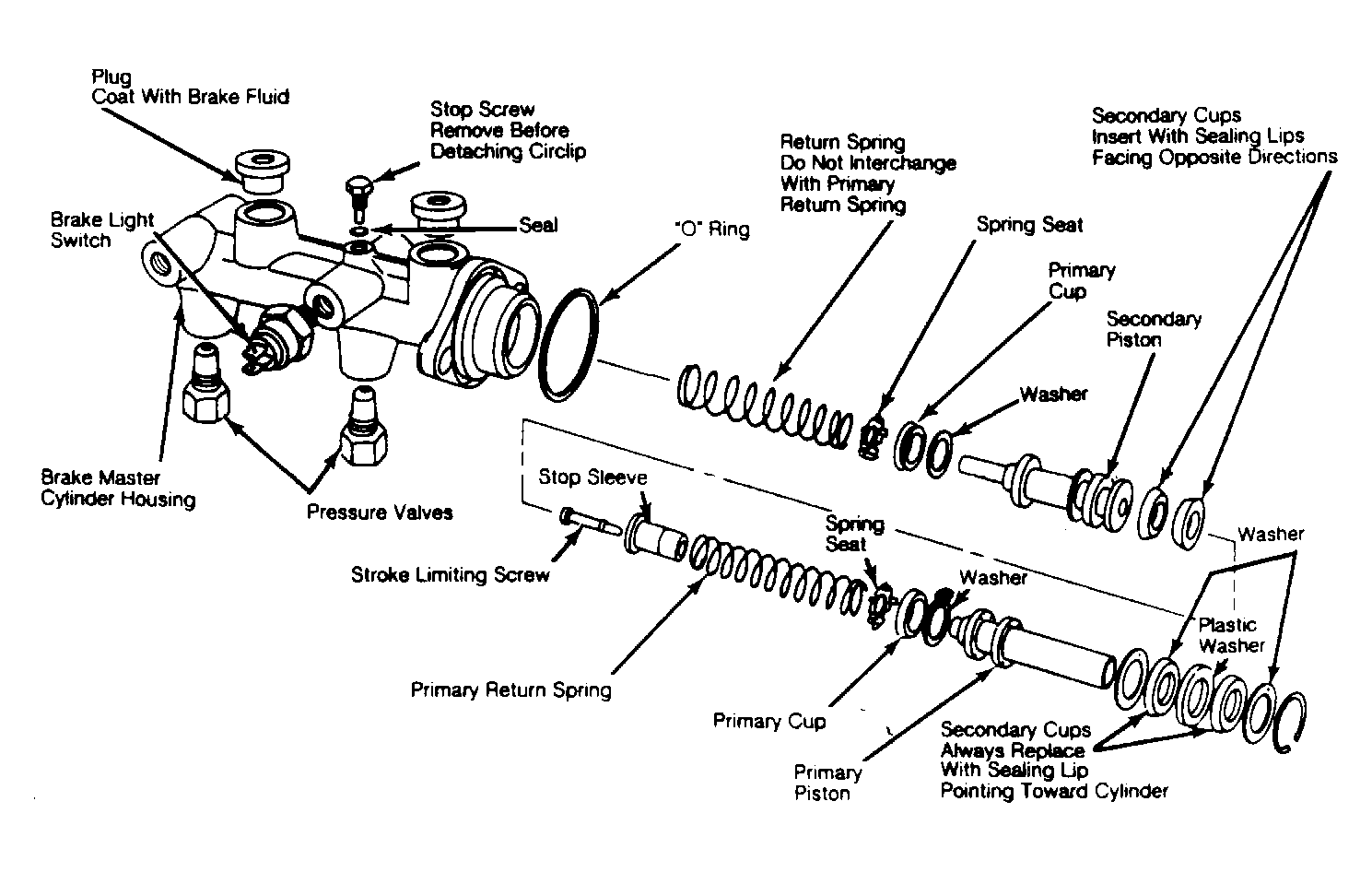

Fig 1: Master Cylinder Component Relationship 4000 housing external design differs; internal parts identical.
G50009
