Timing Belt & Sprocket: Installation

  1. Install new belt onto sprockets. Adjust timing belt tension by turning tensioner clockwise against belt, then tighten.

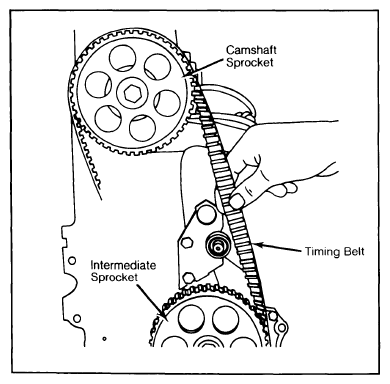

  2. Belt has correct tension when it can be twisted 90° with thumb and finger pressure, at a point midway between camshaft sprocket and intermediate sprocket. See Figure. Ensure valve timing is correct prior to installing remaining components.
