Valve Springs

With camshaft and followers removed, compress spring with suitable tool (US 1020 and 1020/1 or 2037) and remove valve locks (keepers). Lift off valve springs. If required, valve spring seats may be removed using pliers (10-218). To install, reverse removal procedure.

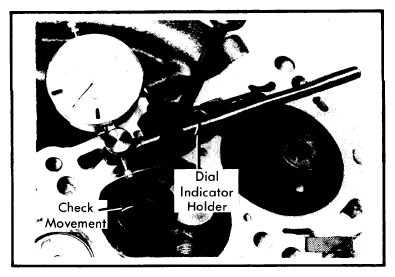

Fig 1: Checking Valve Guide for Wear
G09322482Courtesy of AUDI OF AMERICA, LLC
