Cam Followers (Tappets)

With camshaft removed, lift off followers and adjusting discs. Inspect for wear or damage and replace as necessary.

NOTE: Cam followers and valve system components must be kept in order and installed in original positions. Coat with oil when installing.

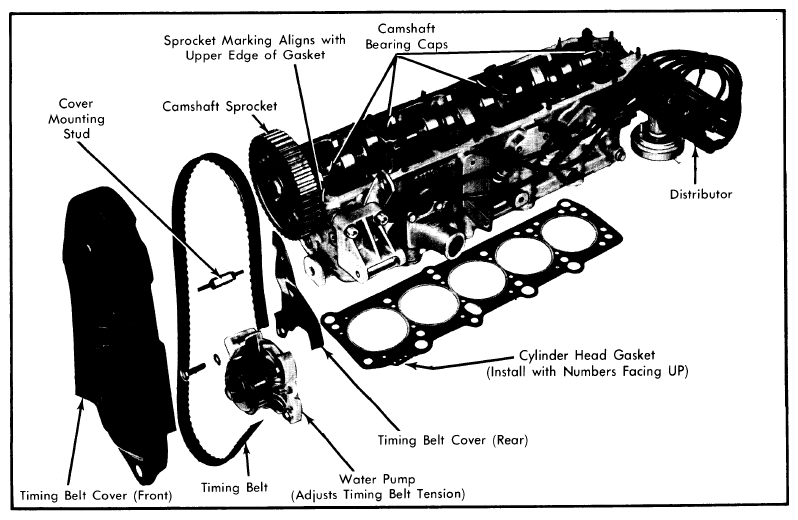

Fig 1: Cylinder Head and Camshaft Assembly with Drive (Timing) Belt and Cover
G09322483Courtesy of AUDI OF AMERICA, LLC
