Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the left air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  2. Remove the left air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

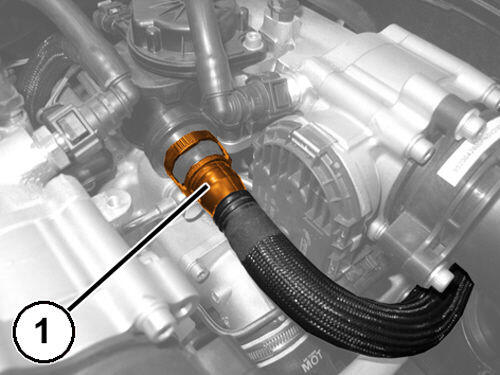

    GC0195233Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the crankcase breather tube quick coupling (1).

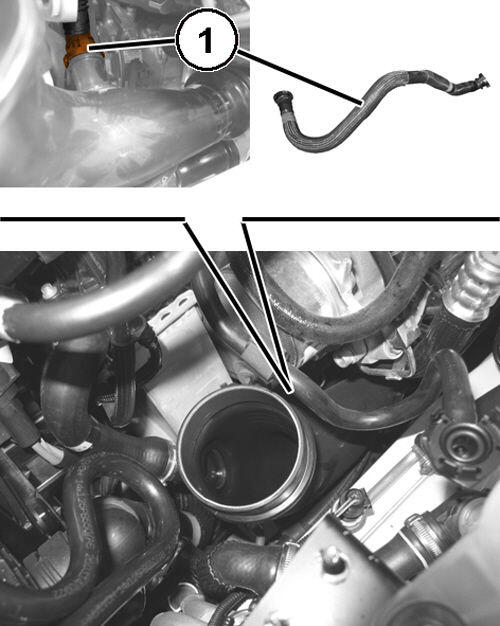

    GC0193735Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect quick coupling (1) and remove the crankcase breather tube from the turbocharger inlet tube.

INSTALLATION

  1. Install the crankcase breather tube to the turbocharger inlet tube and connect the quick couplings.
  2. Install the left air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  3. Install the left air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
