Description And Operation

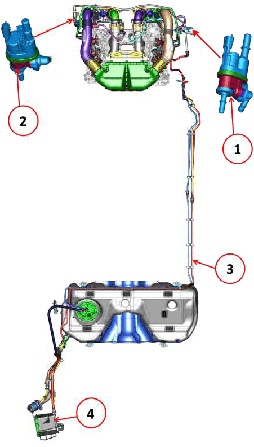

The Fuel vapor recirculation system consists of the following components:
- (1) Right bank evaporative emissions purge solenoid
- (2) Left bank evaporative emissions purge solenoid
- (3) Fuel vapor supply pipe from the charcoal filter to the evaporative emissions purge solenoid
- (4) Active charcoal filter canister

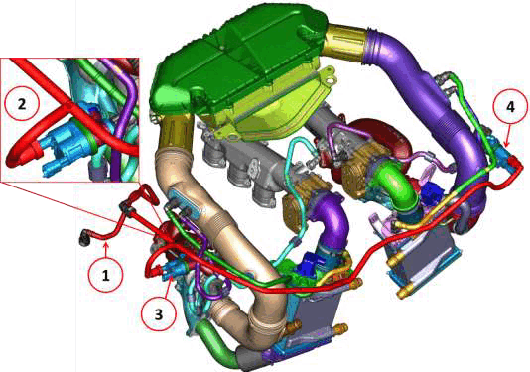

The pipe coming from the active charcoal filter canister is divided into two branches by a T-joint. The two branches allow the vapors to be sent to the inlet of the two evaporative emissions purge solenoids (3-4).
- (1) Fuel vapor piping coming from the active charcoal filter canister
- (2) T- joint
- (3) Right bank evaporative emissions purge solenoid
- (4) Left bank evaporative emissions purge solenoid

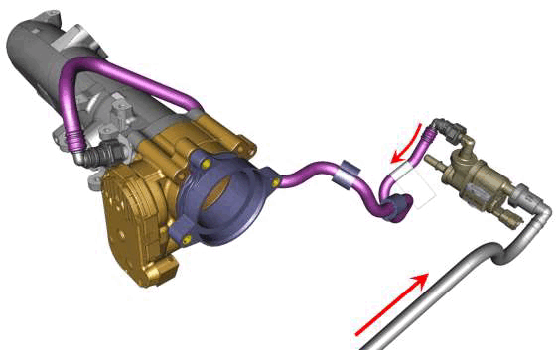

In the image above, the connection from the evaporative emissions purge solenoid to the intake collector is highlighted.
The vapor recirculation flow towards the intake sleeve entrance is possible because of a venturi effect vacuum created where the vapor pipe is connected to the sleeve itself.

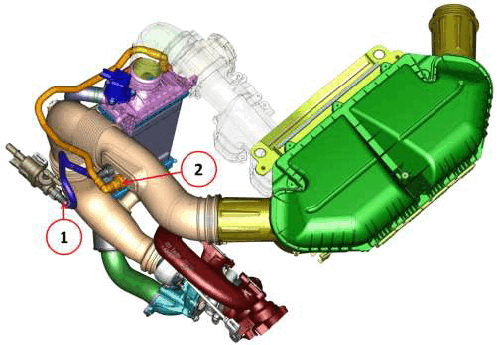

- (1) Solenoid canister connection pipe-intake sleeve at the entrance to the turbocharger
- (2) Intercooler air outlet connection pipe-intake sleeve at the entrance to the turbocharger

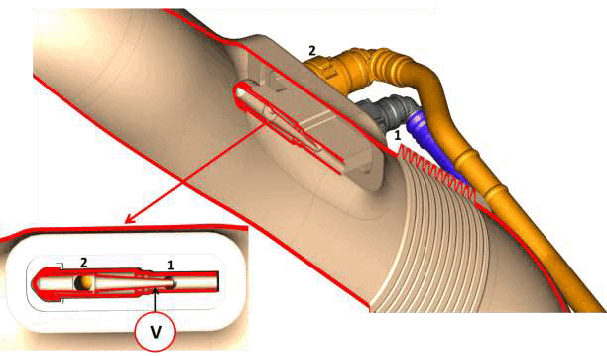

At location (2) the air under pressure enters from the intercooler, runs along the "V" channel, creating a venturi effect vacuum at point (1) where the fuel vapors enter.
