Removal And Installation: Left

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the left air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

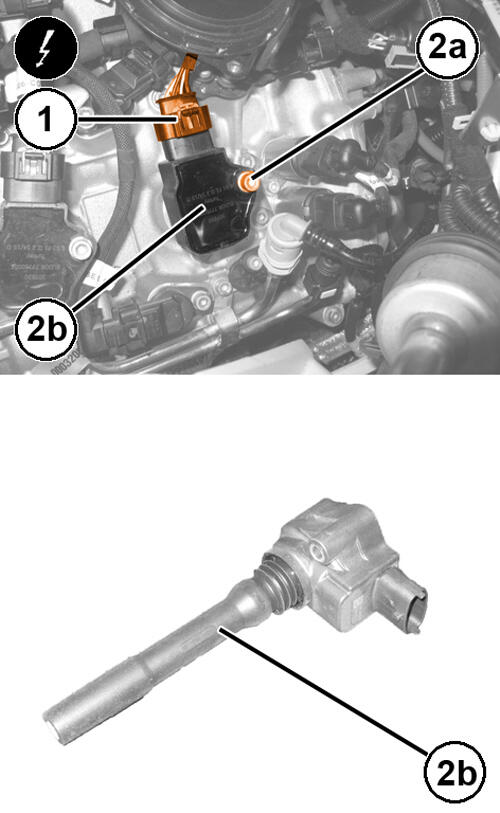

    GC0193819Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wiring harness connector (1) from the left cylinder head ignition coils.
  4. Remove the ignition coil retaining screw (2a).
  5. Remove the ignition coil (2b) from the left cylinder head.

INSTALLATION

  1. Inspect the ignition coil for damage.

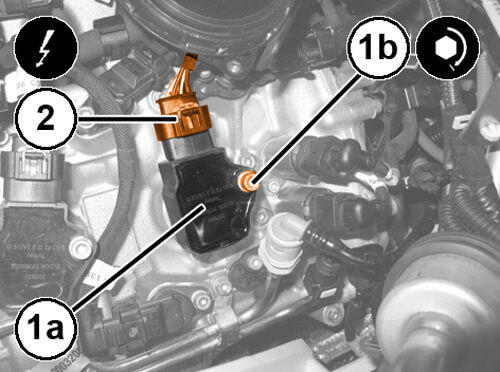

    GC0194509Courtesy of CHRYSLER GROUP, LLC
  2. Install the left cylinder head ignition coil (1a) to the cylinder head and tighten the retaining screw (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Connect the wiring harness connector (2) to the ignition coil.
  4. Install the left air cleaner outlet tube on the left cylinder head. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable.
