Transmission Shifter

WARNING: This page is about a different variant/trim than selected.

NOTE:

The transmission shifter is equipped with an Electronic Shift Module (ESM). If the transmission shifter is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available) for the ESM.

REMOVAL

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove Shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

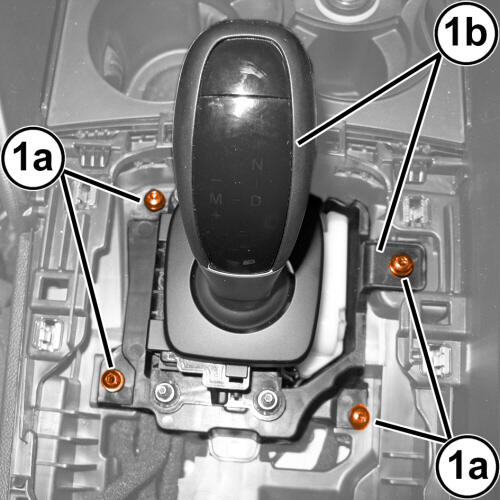

Remove the shifter mount bolts (1a) and lift the shifter mount (1b) with the shifter (1b).

Courtesy of CHRYSLER GROUP, LLC

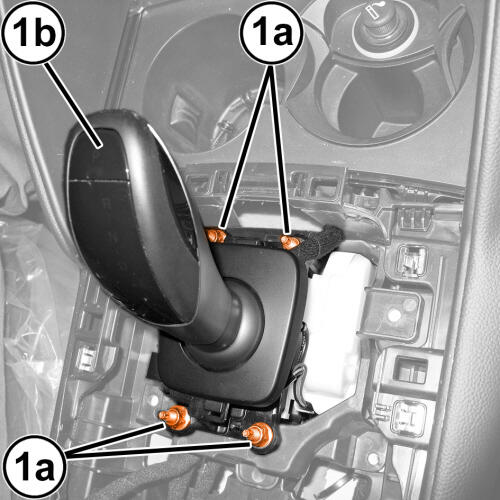

Remove the shifter nuts (1a).

Courtesy of CHRYSLER GROUP, LLC

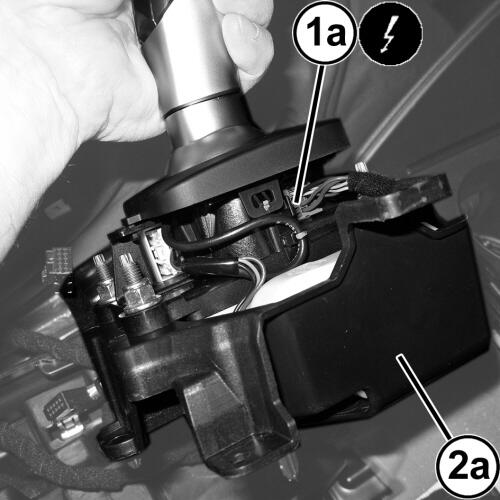

Disconnect the shifter wire harness connector (1a).
Remove the shifter and shifter mount from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

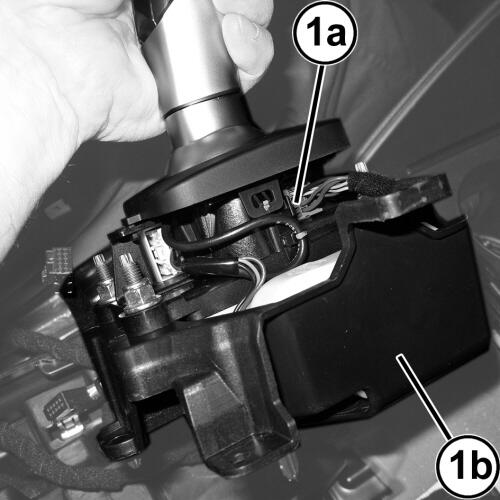

Connect the shifter wire harness connector (1a).

Courtesy of CHRYSLER GROUP, LLC

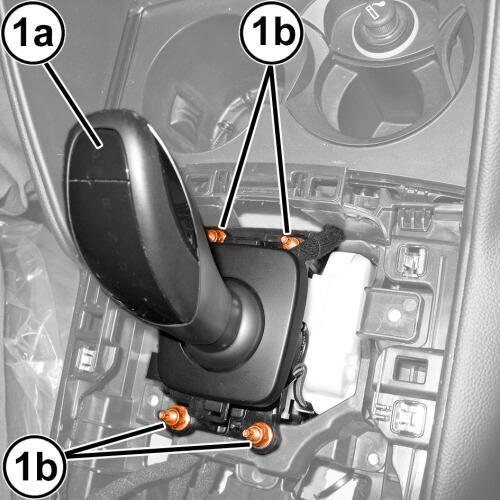

Place the shifter (1a) in position and tighten the shifter nuts (1b) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

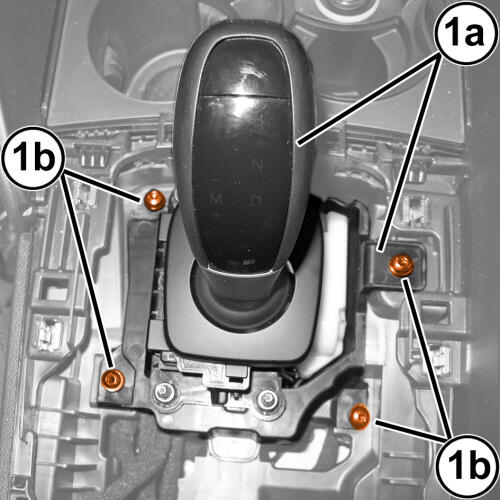

Place the shifter mount with shifter (1a) in position and tighten the shifter mount bolts (1b) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Install the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
