DNA Driving Mode Selector

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

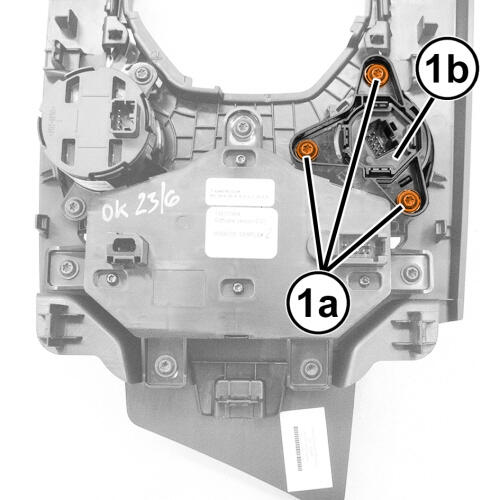

3. Remove the Vehicle Dynamic (DNA) selector switch bolts (1a).
4. Remove the DNA selector switch (1b) from the shifter bezel.

INSTALLATION

1. Inspect the integrity of the DNA selector switch.

   Courtesy of CHRYSLER GROUP, LLC

2. Position the DNA selector switch (1a) on the shifter bezel.
3. Install the DNA selector switch bolts (1b), and tighten the DNA selector switch bolts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
4. Install the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
