Removal And Installation - Automatic Transmission

REMOVAL

1. Remove the transmission oil cooler. Refer to COOLER, TRANSMISSION OIL, REMOVAL AND INSTALLATION .

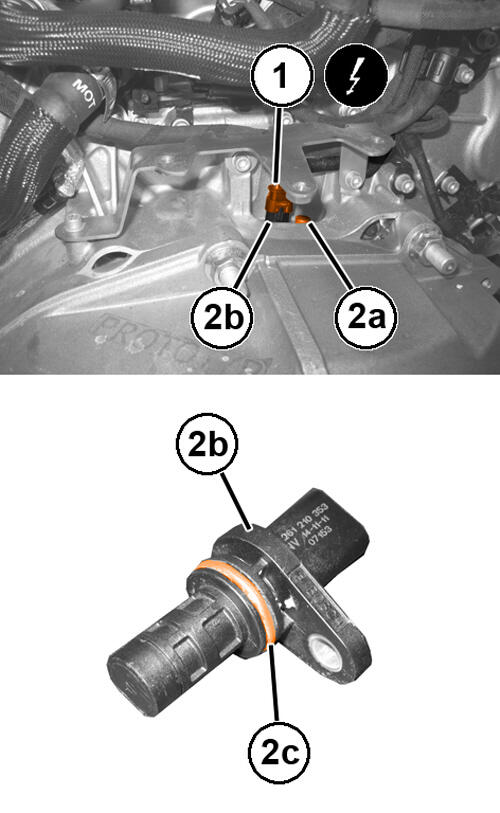

   Courtesy of CHRYSLER GROUP, LLC

2. Disconnect the wire harness connection (1) for the engine crankshaft position sensor.
3. Remove the screw (2a) and remove the crankshaft position sensor (2b) complete with O-ring (2c).

INSTALLATION

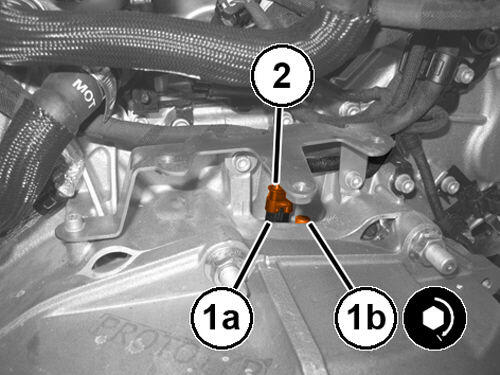

Courtesy of CHRYSLER GROUP, LLC

1. Install the crankshaft position sensor (1a), complete with new O-ring, back in its housing and tighten the screw (1b) to the proper torque specification. Refer to appropriate service information .
2. Connect the wire harness connection (2) to the crankshaft position sensor.
3. Install the transmission oil cooler. Refer to COOLER, TRANSMISSION OIL, REMOVAL AND INSTALLATION .
