Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Disconnect the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC

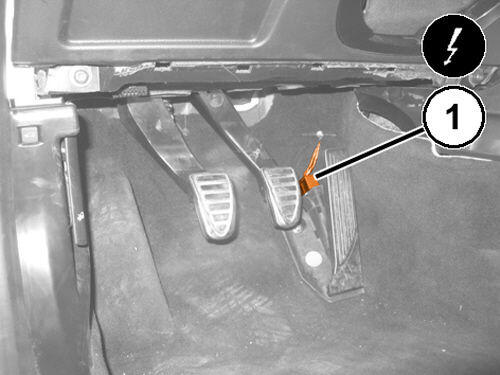

Detach the wire harness connector (1) for the accelerator pedal.

Courtesy of CHRYSLER GROUP, LLC

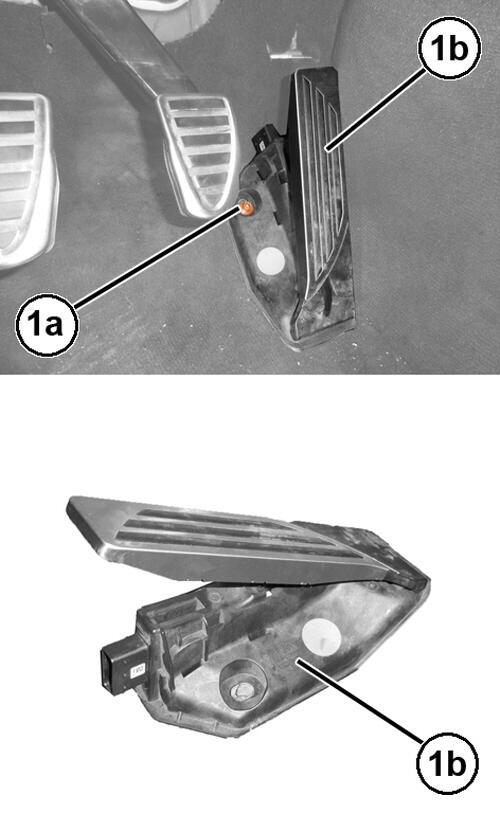

Remove the screw (1a) and remove the accelerator pedal with built-in potentiometer (1b).

INSTALLATION

GC0195211

Courtesy of CHRYSLER GROUP, LLC

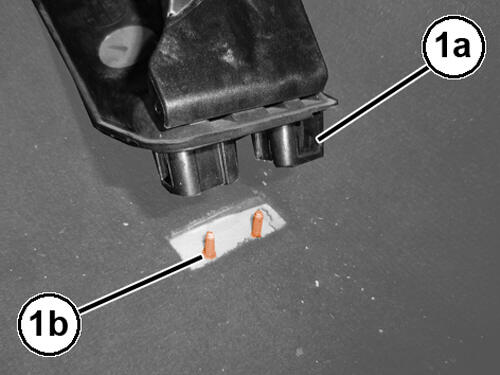

Place the accelerator pedal in its housing, taking care to engage the blocks (1a) with the studs (1b) on the body.

Courtesy of CHRYSLER GROUP, LLC

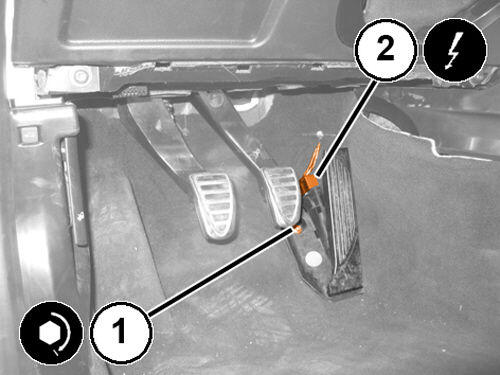

Tighten the accelerator pedal retaining screw (1) to the proper torque specification. Refer to appropriate service information .
Connect the accelerator pedal wire harness connector.
Connect the negative battery cable.
