Removal And Installation: Right
WARNING: This page is about a different variant/trim than selected.
REMOVAL
- Disconnect and isolate the negative battery cable.
- Remove the air cleaner and ducts. Refer to
BODY, AIR CLEANER, REMOVAL AND INSTALLATION
.

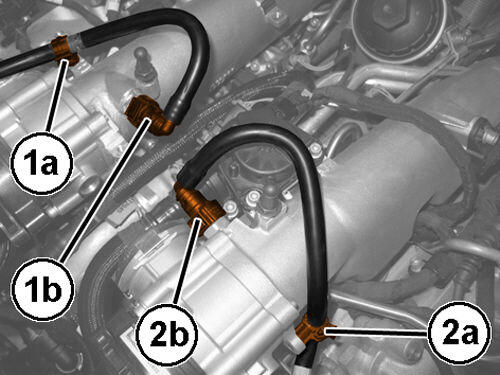

- Open the clip (1a) and disconnect the quick connector for the fuel vapor inlet pipe to the right intake manifold (1b).
- Open the clip (2a) and disconnect the quick connector for the fuel vapor inlet pipe to the left intake manifold (2b).

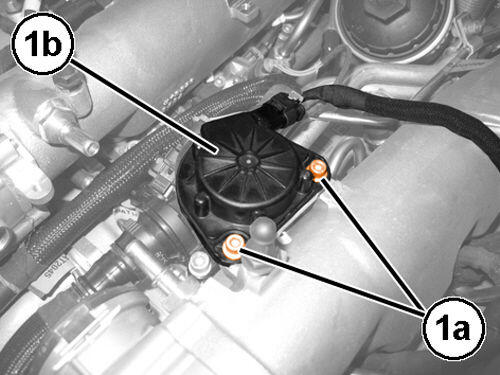

- Remove the screws (1a) and move the sound generator (1b) aside.

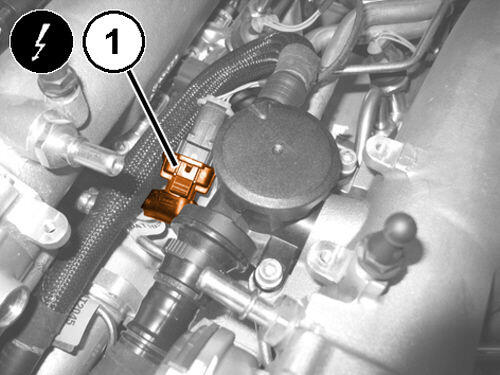

- Disconnect the wire harness connection (1) for the right cylinder head fuel pressure regulator sensor.

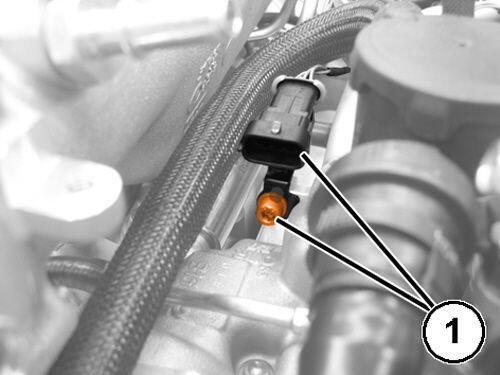

- Remove the retaining screw and move the wire harness support bracket of the right cylinder head fuel pressure sensor (1).

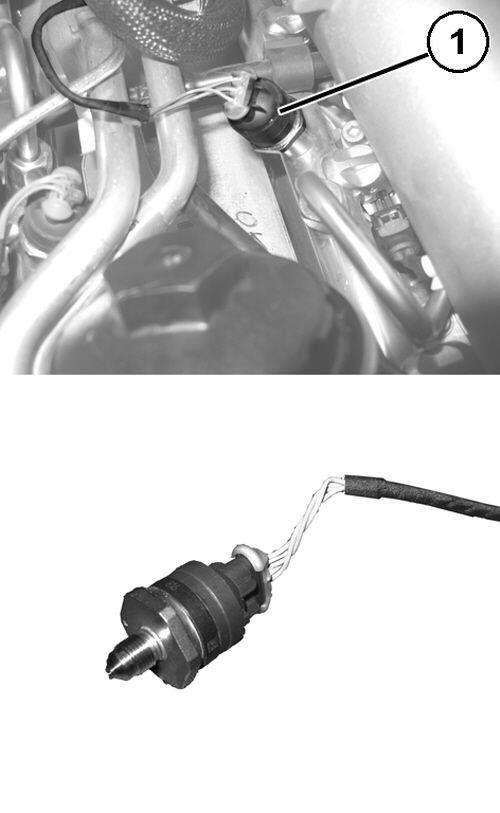

- Loosen and remove the right cylinder head fuel pressure sensor (1), complete with connector bracket.

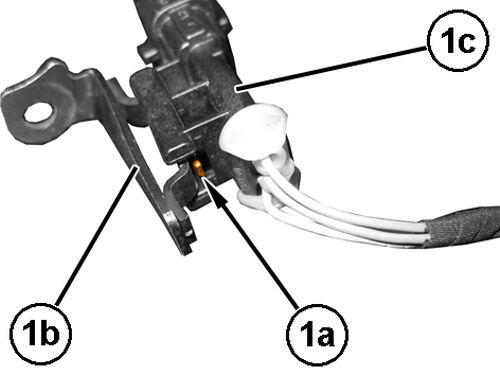

- Disengage the clip (1a) to release bracket (1b) from the connector (1c).
INSTALLATION
- Engage the bracket on the right cylinder head fuel pressure sensor connector engaging the respective clip.
- Place the right cylinder head fuel pressure sensor (1) in its housing and tighten it to the proper torque specification. Refer to appropriate service information .
- Install the right cylinder head fuel pressure sensor wire harness supporting bracket in its housing and securely tighten the screw.
- Connect the wire harness connector for the right cylinder head fuel pressure regulator sensor.
- Place the sound generator in its housing and securely tighten the respective fastening screws.
- Engage the quick connectors of the fuel vapor supply pipes to the right and left intake manifold and close the intermediate retaining clips.
- Install the air cleaner and ducts. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
