Low Pressure Crossover Fuel Line

REMOVAL

1. Remove the engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
2. Remove the air cleaner body and ducts. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

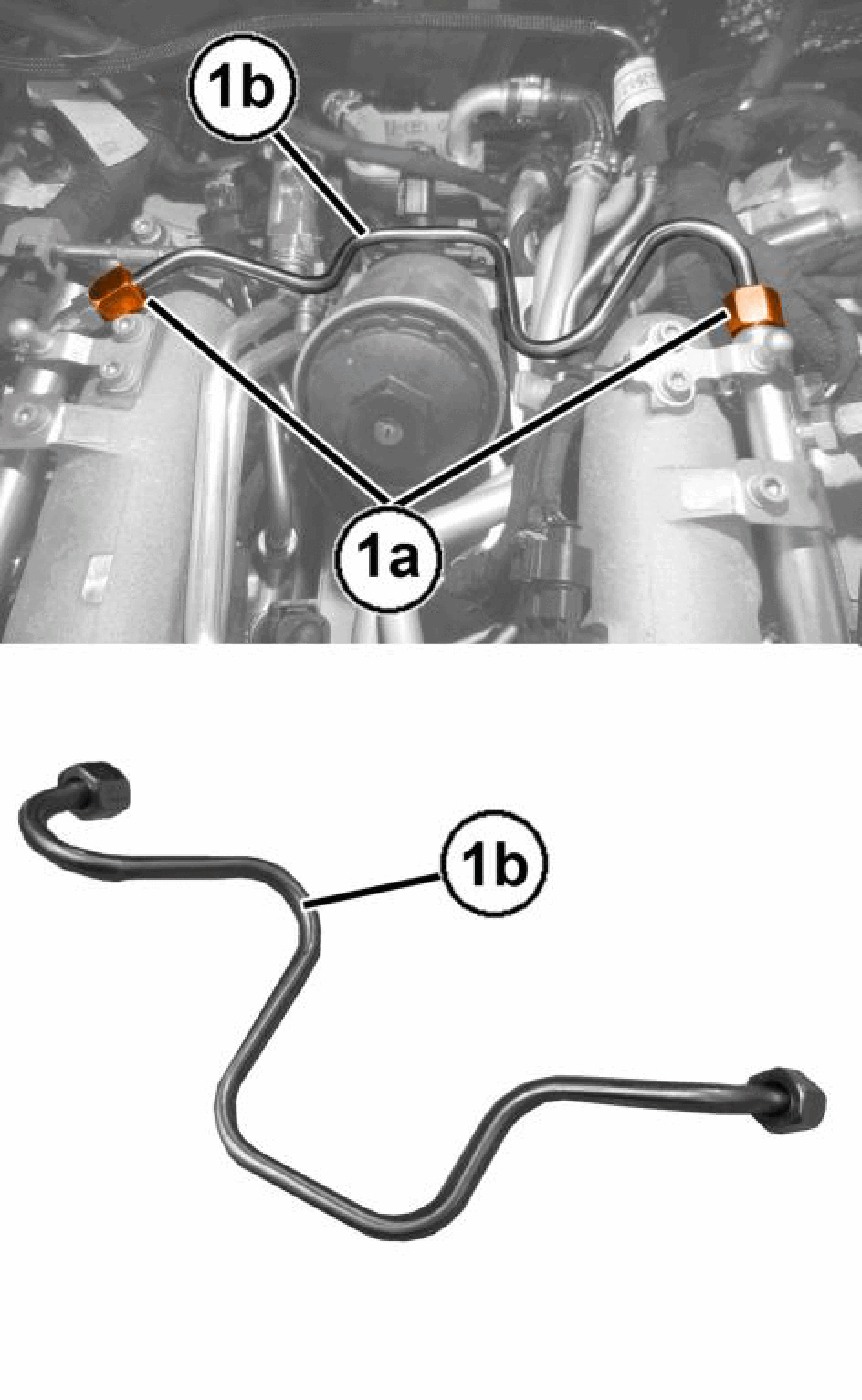

3. Unscrew the fittings (1a) and remove the pipe connecting the left fuel manifold pipe to the right fuel manifold pipe (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

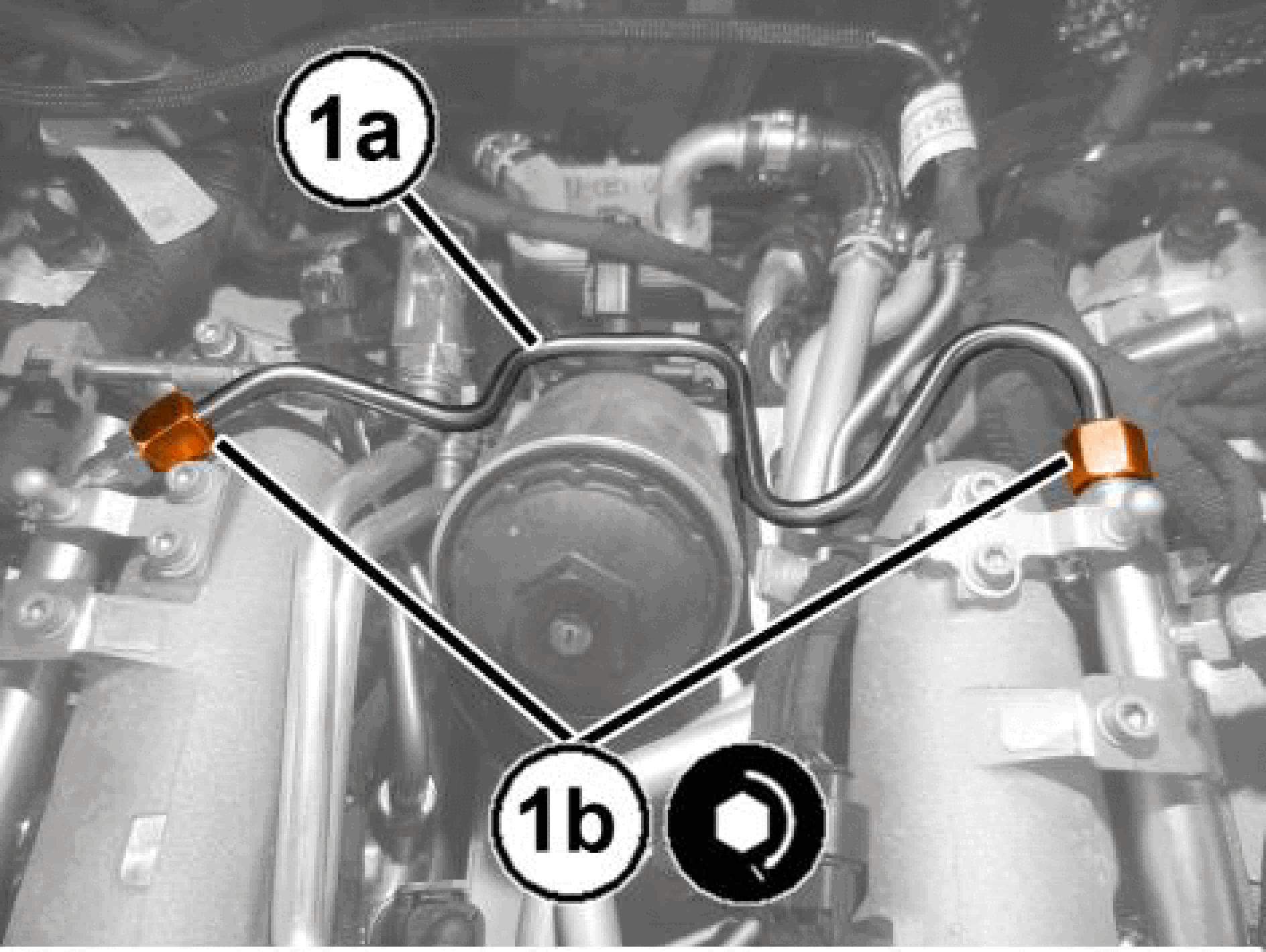

1. Install the pipe connecting the left fuel manifold pipe to the right fuel manifold pipe (1a) and tighten the fittings (1b) to the proper torque specification. Refer to appropriate service information .
2. Install the air cleaner body and ducts. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
3. Install the engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
