Right Turbocharger Air Bypass Hose

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  2. Remove the right flexible hose from the air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

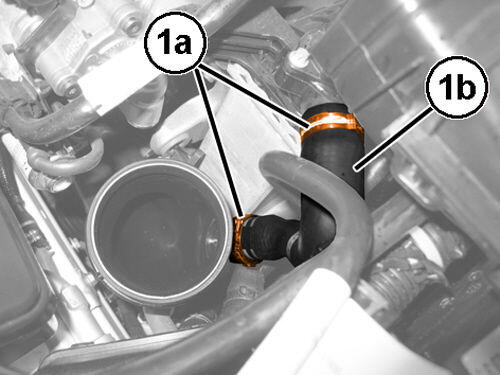

    GC0175052Courtesy of CHRYSLER GROUP, LLC
  3. Loosen the clamps (1a) and remove the turbocharger air by-pass hose (1b).

INSTALLATION

  1. Install the turbocharger air by-pass hose and securely tighten the clamps.
  2. Install the right flexible hose onto the air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  3. Install the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
