REMOVAL

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable.
  3. Remove the powertrain assembly and suspension crossmember from the vehicle. Refer to REMOVAL AND INSTALLATION .
  4. Remove the engine and transmission from the suspension crossmember. Refer to REMOVAL AND INSTALLATION .
  5. Remove the right side turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
    GC0196048Courtesy of CHRYSLER GROUP, LLC

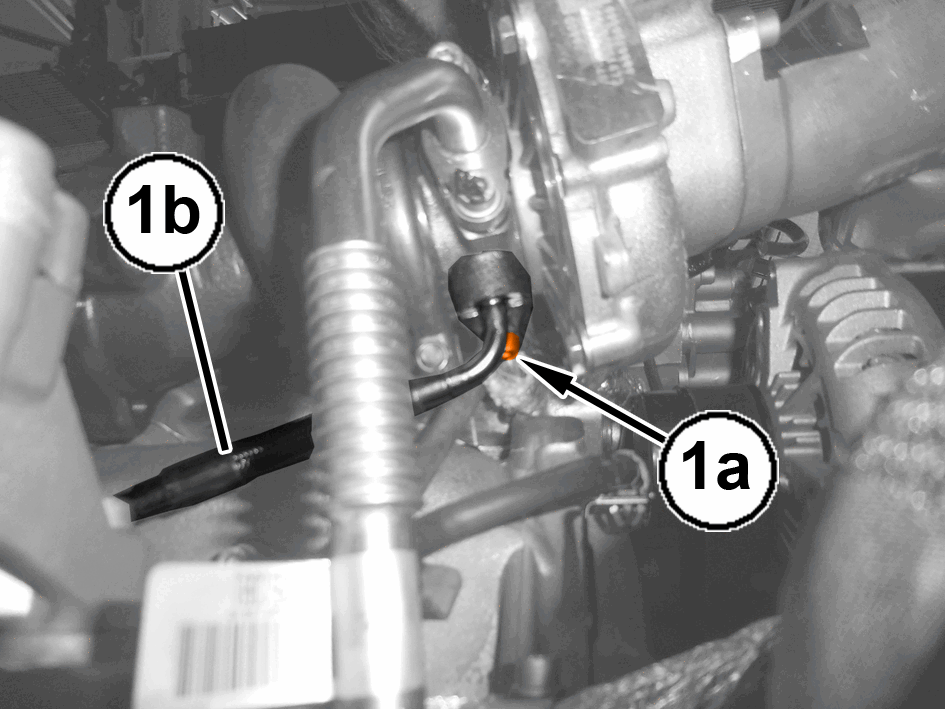

  6. Remove the bolt (1a), turbocharger side, and disconnect the engine coolant supply pipes to the right turbocharger (1b).
    GC0197136Courtesy of CHRYSLER GROUP, LLC

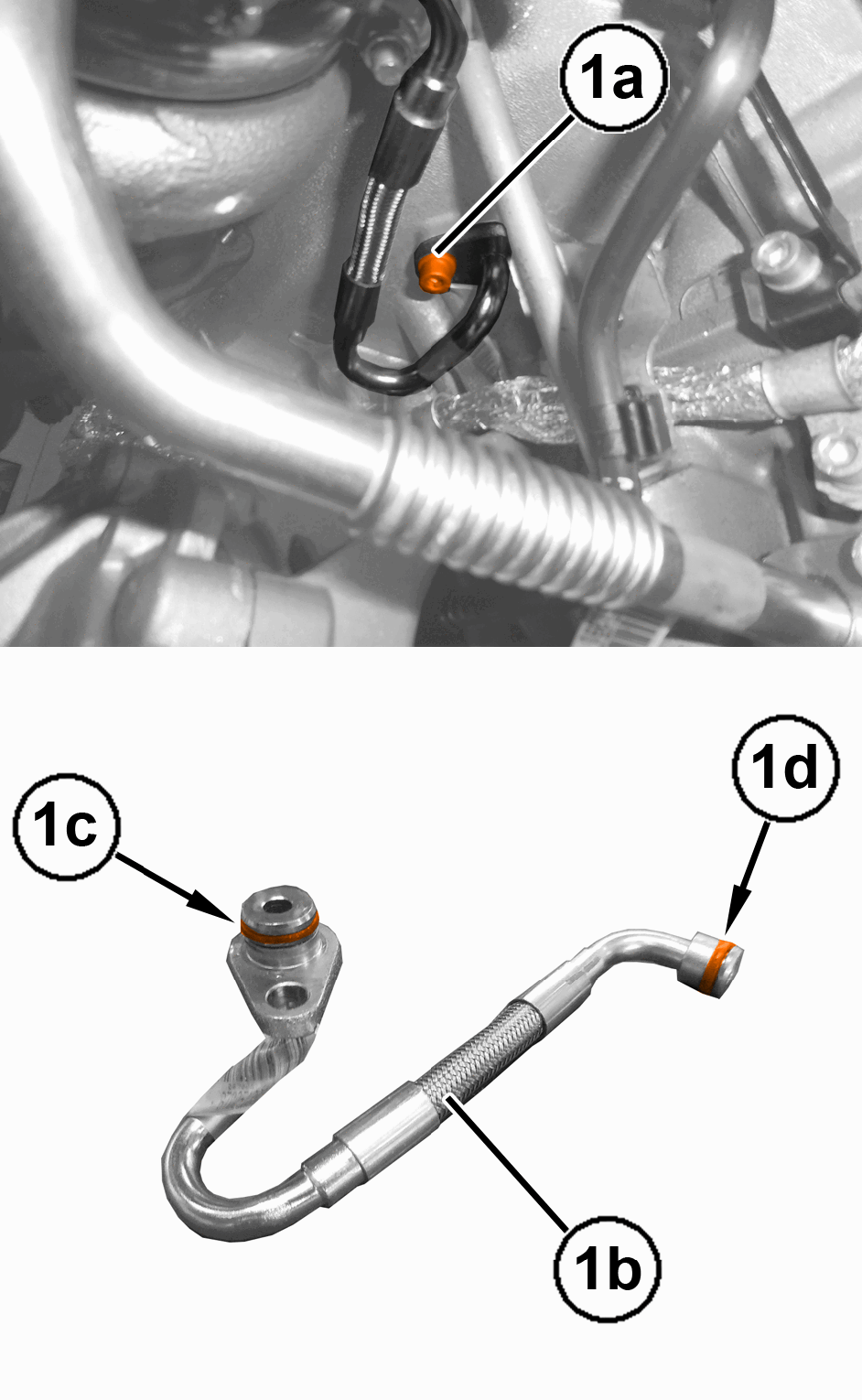

  7. Remove the bolt (1a), engine side, and remove the engine coolant pipe to the right turbocharger (1b), complete with O-rings (1c) and (1d).
    GC0196458Courtesy of CHRYSLER GROUP, LLC

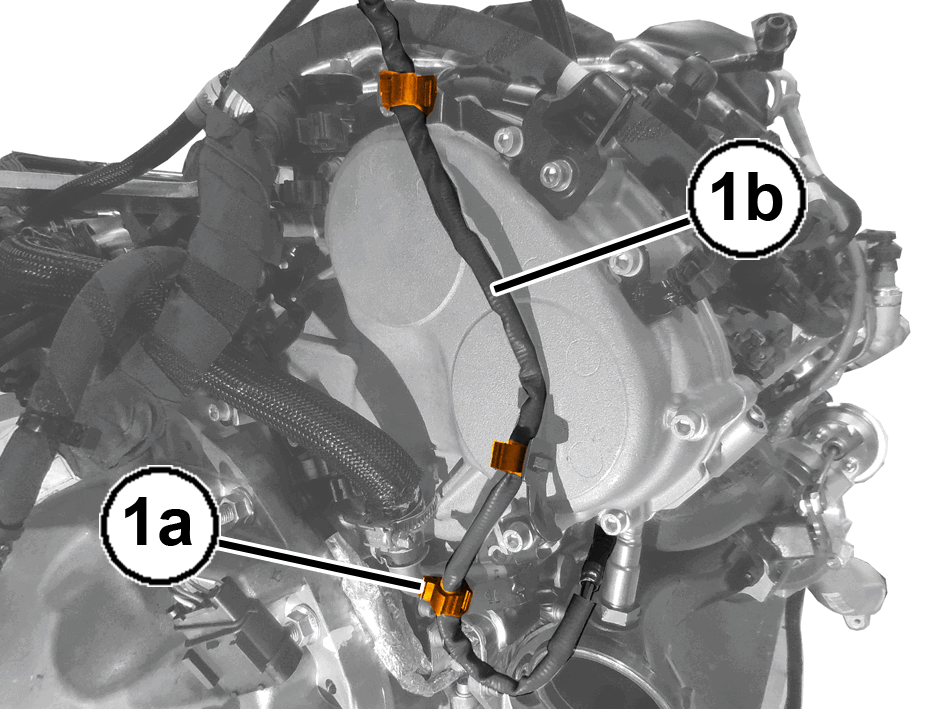

  8. Open the clips (1a) and disengage the oxygen sensor wiring (1b).
    GC0196737Courtesy of CHRYSLER GROUP, LLC

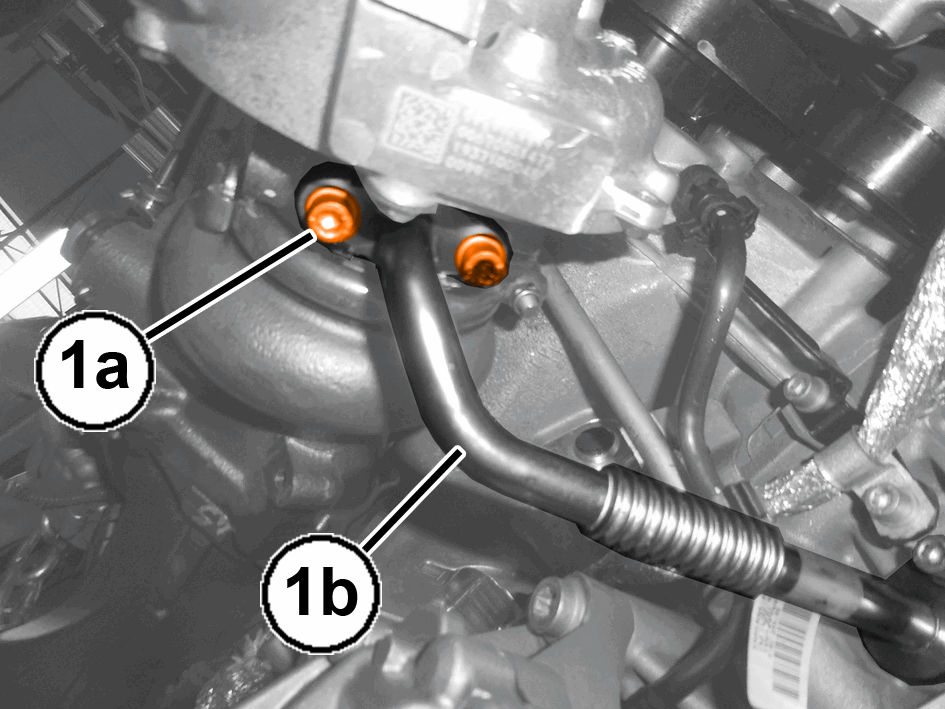

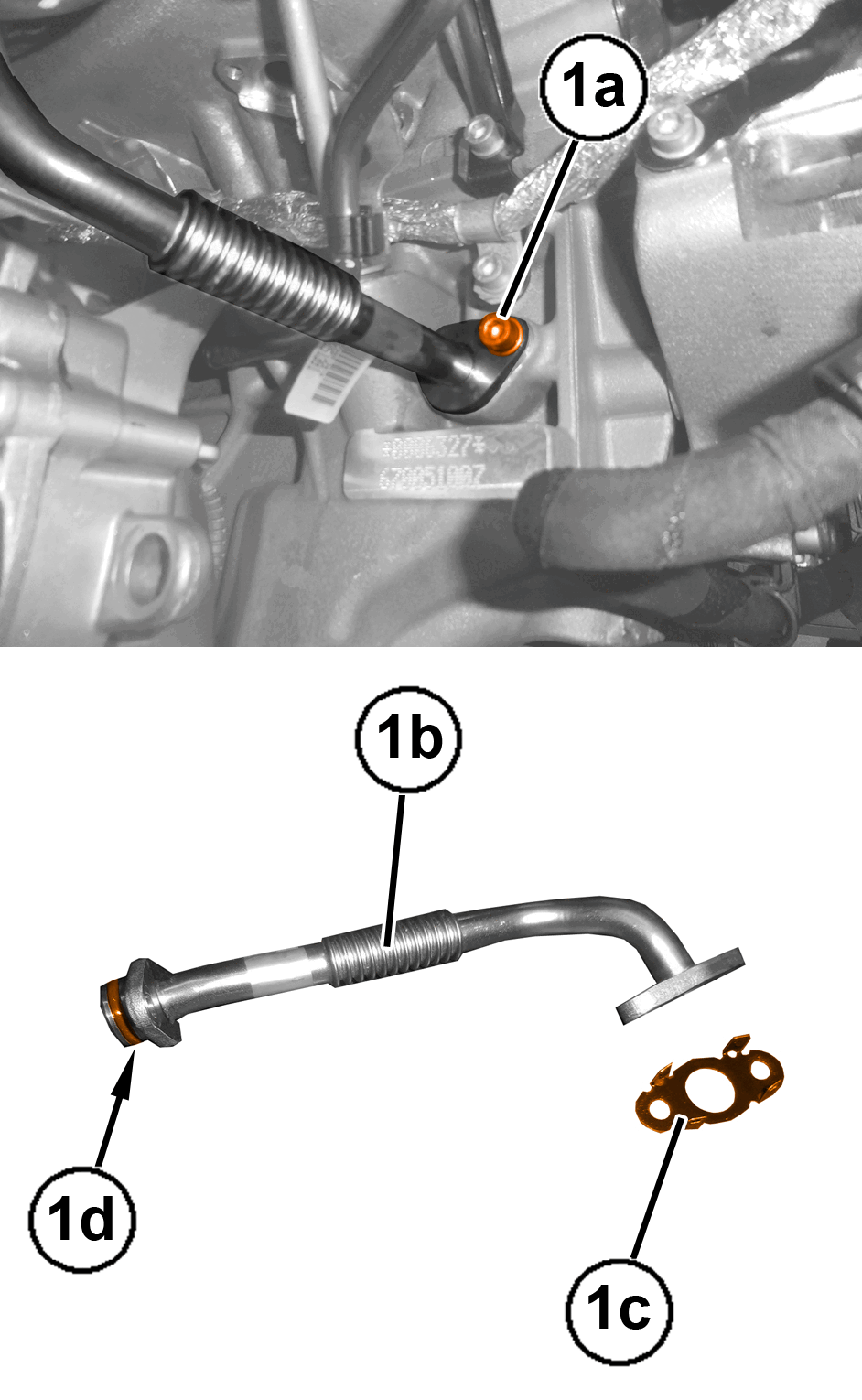

  9. Remove the bolts (1a), turbocharger side, and remove the turbocharger engine oil return pipe (1b).
    GC0195742Courtesy of CHRYSLER GROUP, LLC
  10. Remove the bolt (1a), engine side, and remove the engine oil return pipe from turbocharger (1b), complete with seal (1c) and O-ring (1d).
    GC0196957Courtesy of CHRYSLER GROUP, LLC

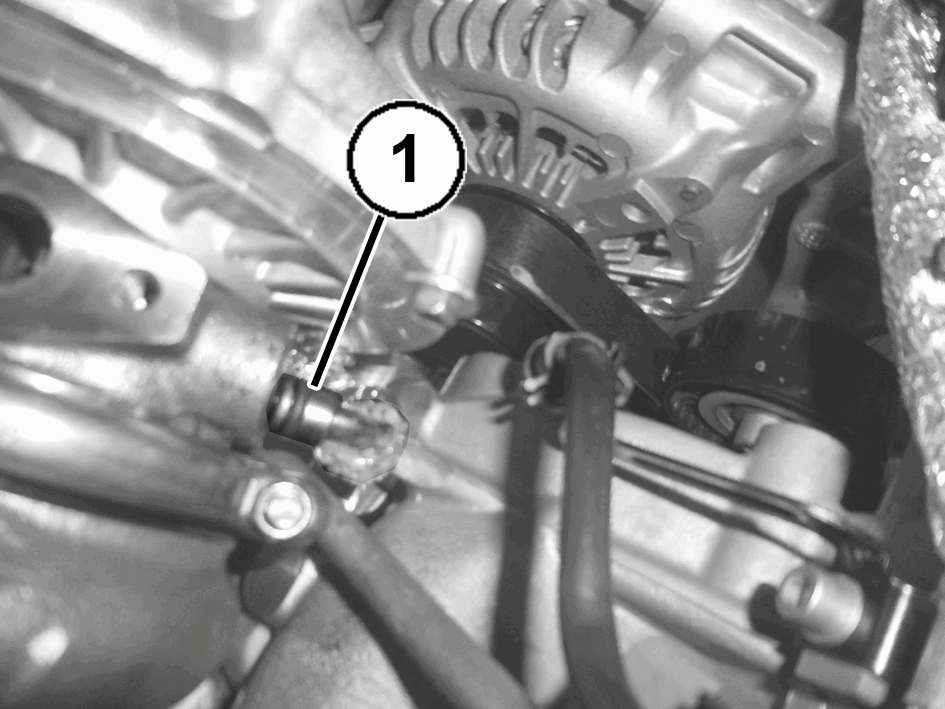

  11. Disconnect the engine coolant return pipe (1) from the turbocharger.
    GC0196162Courtesy of CHRYSLER GROUP, LLC

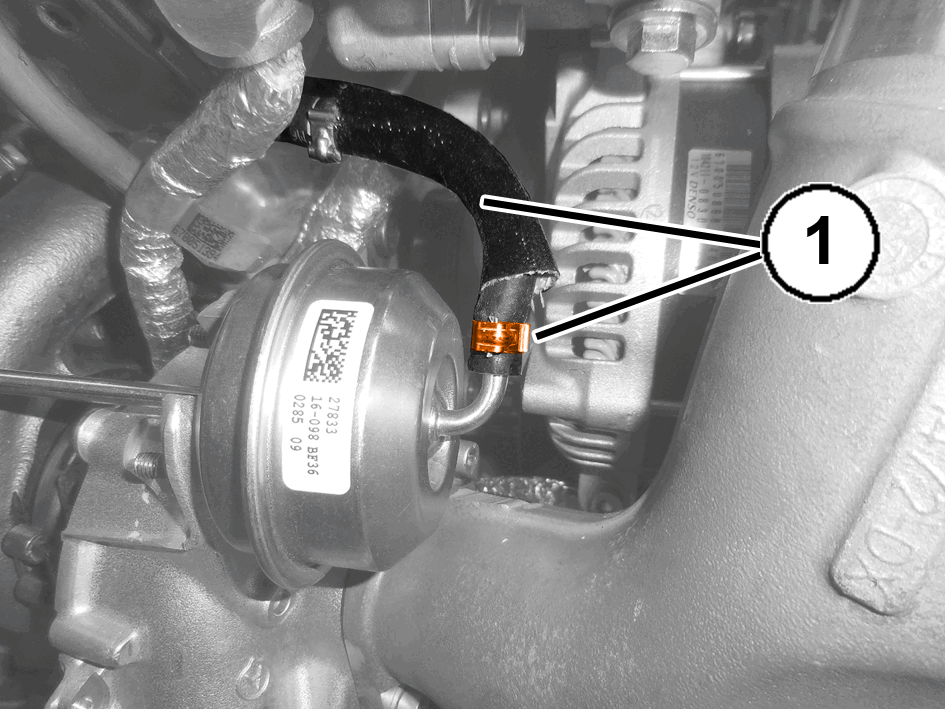

  12. Open the band (1) and disconnect the vacuum air pipe from the Wastegate valve.
    GC0196344Courtesy of CHRYSLER GROUP, LLC

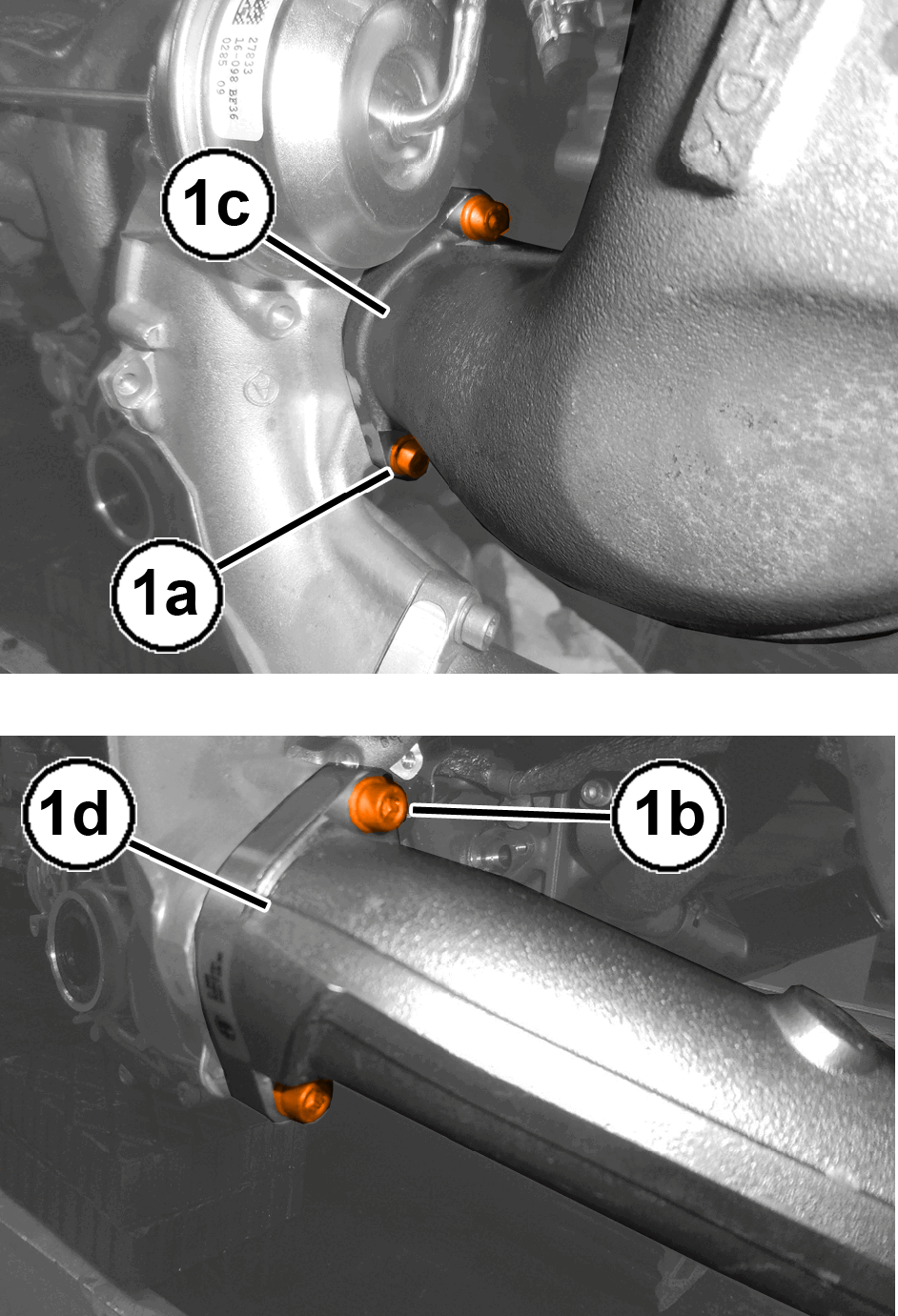

  13. Remove the nuts (1a) and (1b) and disconnect the inlet/outlet pipes from the turbocharger (1c) and (1d).
    GC0196629Courtesy of CHRYSLER GROUP, LLC

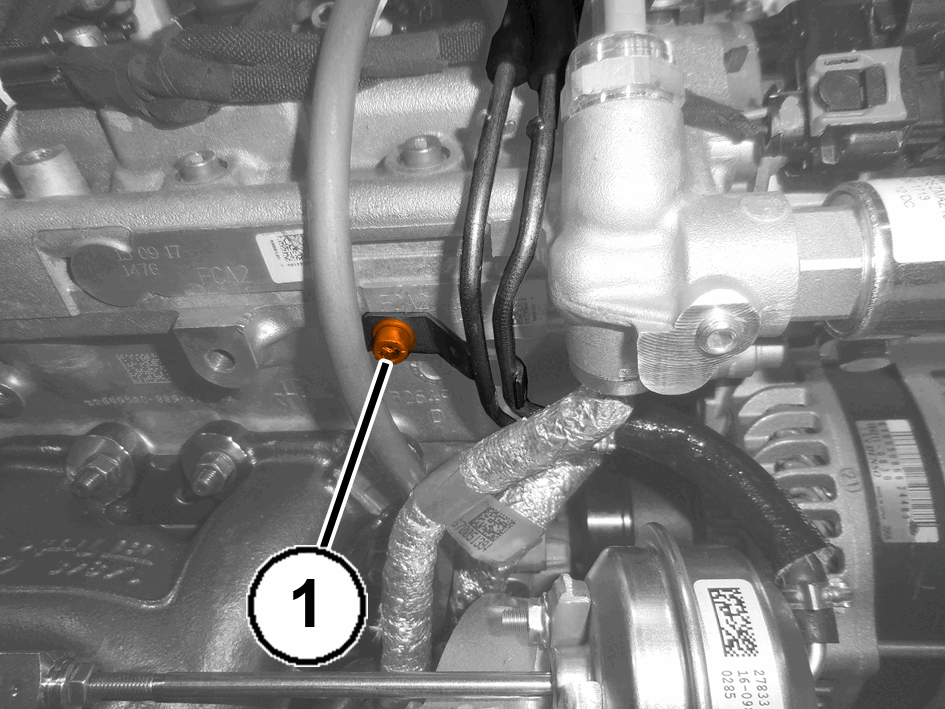

  14. Remove the bolt (1) from the vacuum air pipes support bracket.
    GC0195786Courtesy of CHRYSLER GROUP, LLC

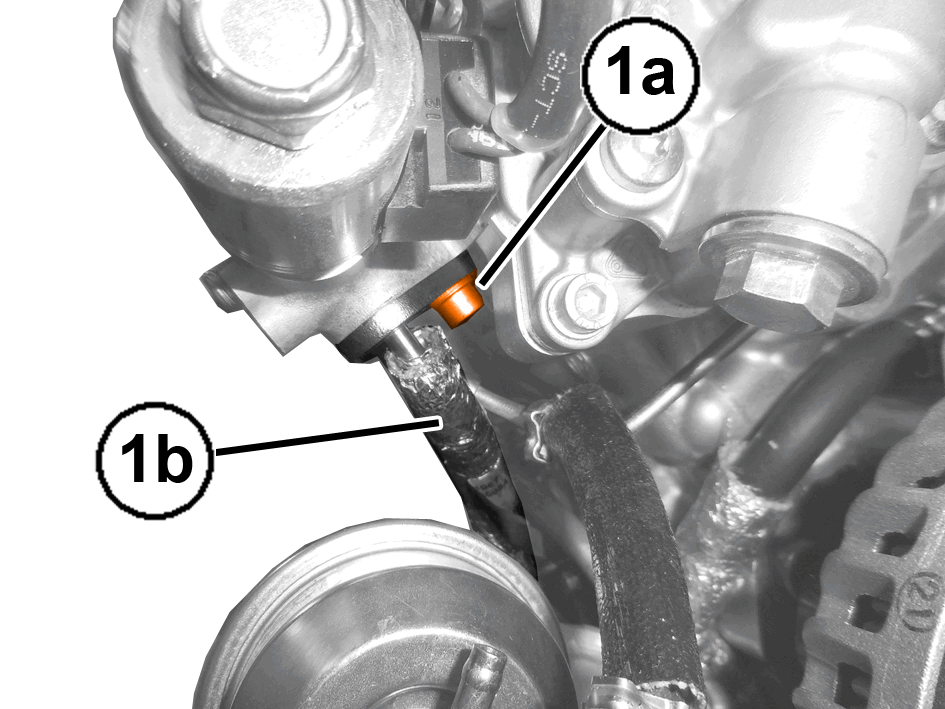

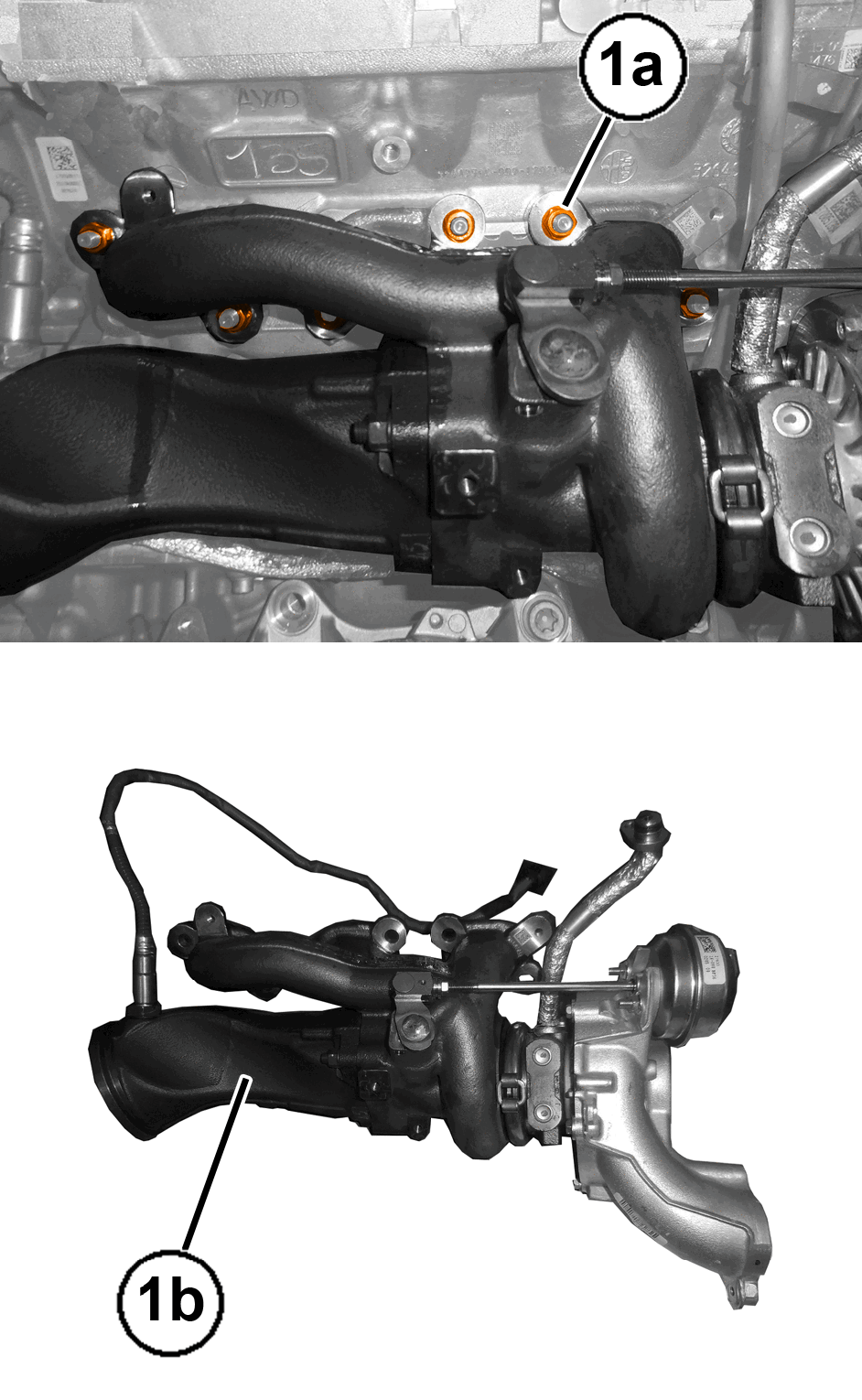

  15. Remove the bolt (1a), engine side, from the turbocharger engine oil return pipe (1b).
    GC0197132Courtesy of CHRYSLER GROUP, LLC
  16. Remove the nuts (1a) and remove the right turbocharger and exhaust manifold assembly (1b).
    GC0195552Courtesy of CHRYSLER GROUP, LLC

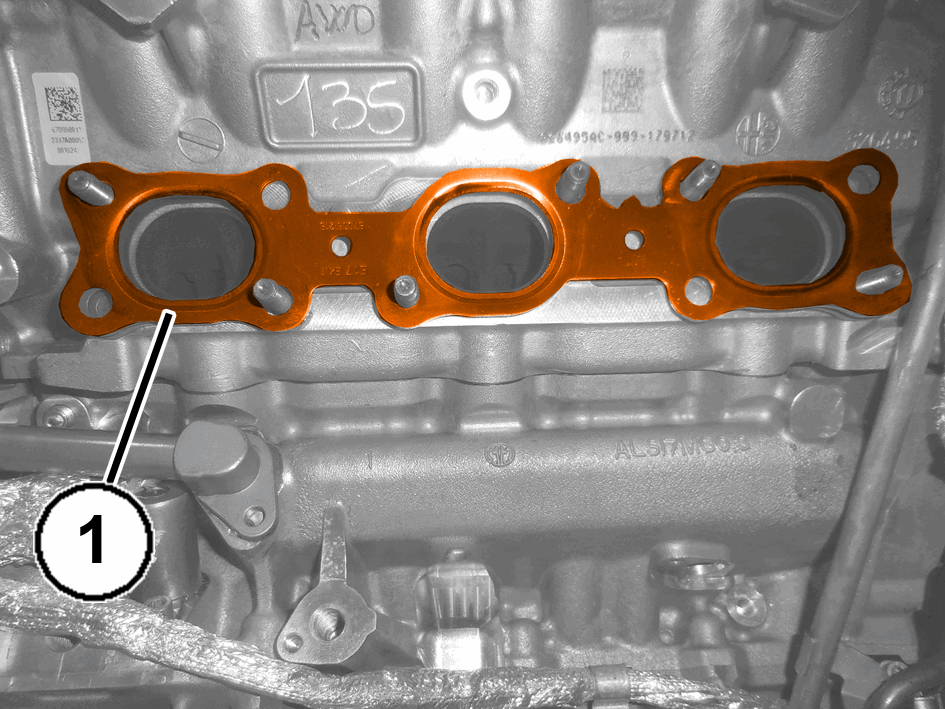

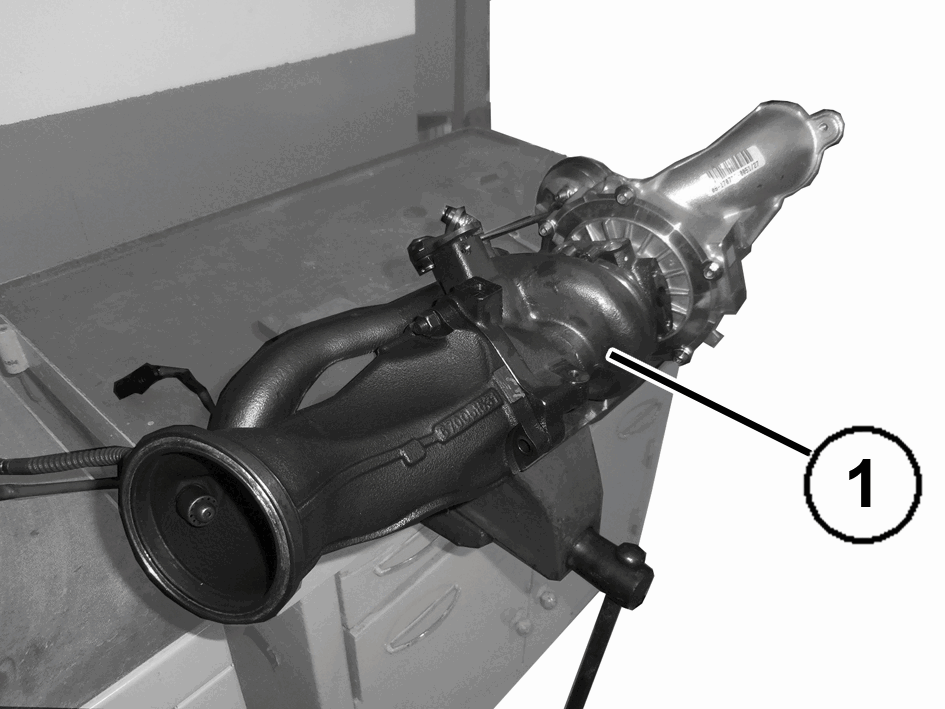

  17. Remove the metal gaskets (1) from the cylinder head.
    GC0195809Courtesy of CHRYSLER GROUP, LLC
  18. Position the right turbocharger and exhaust manifold assembly (1) in a vice fitted with protective jaws.
    GC0195801Courtesy of CHRYSLER GROUP, LLC

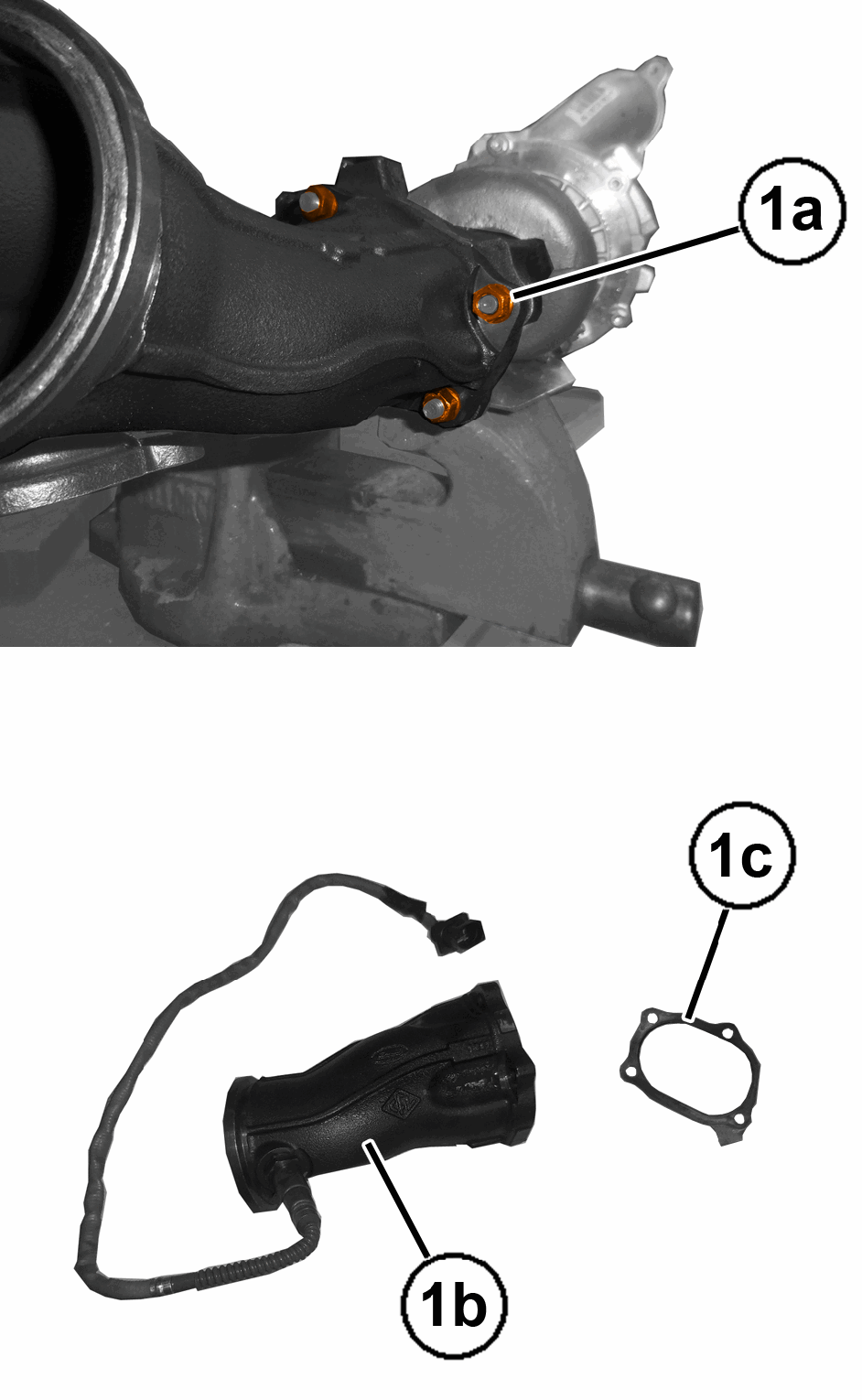

  19. Remove the nuts (1a) and remove the exhaust gas outlet connector (1b), complete with gasket (1c).
    GC0196084Courtesy of CHRYSLER GROUP, LLC

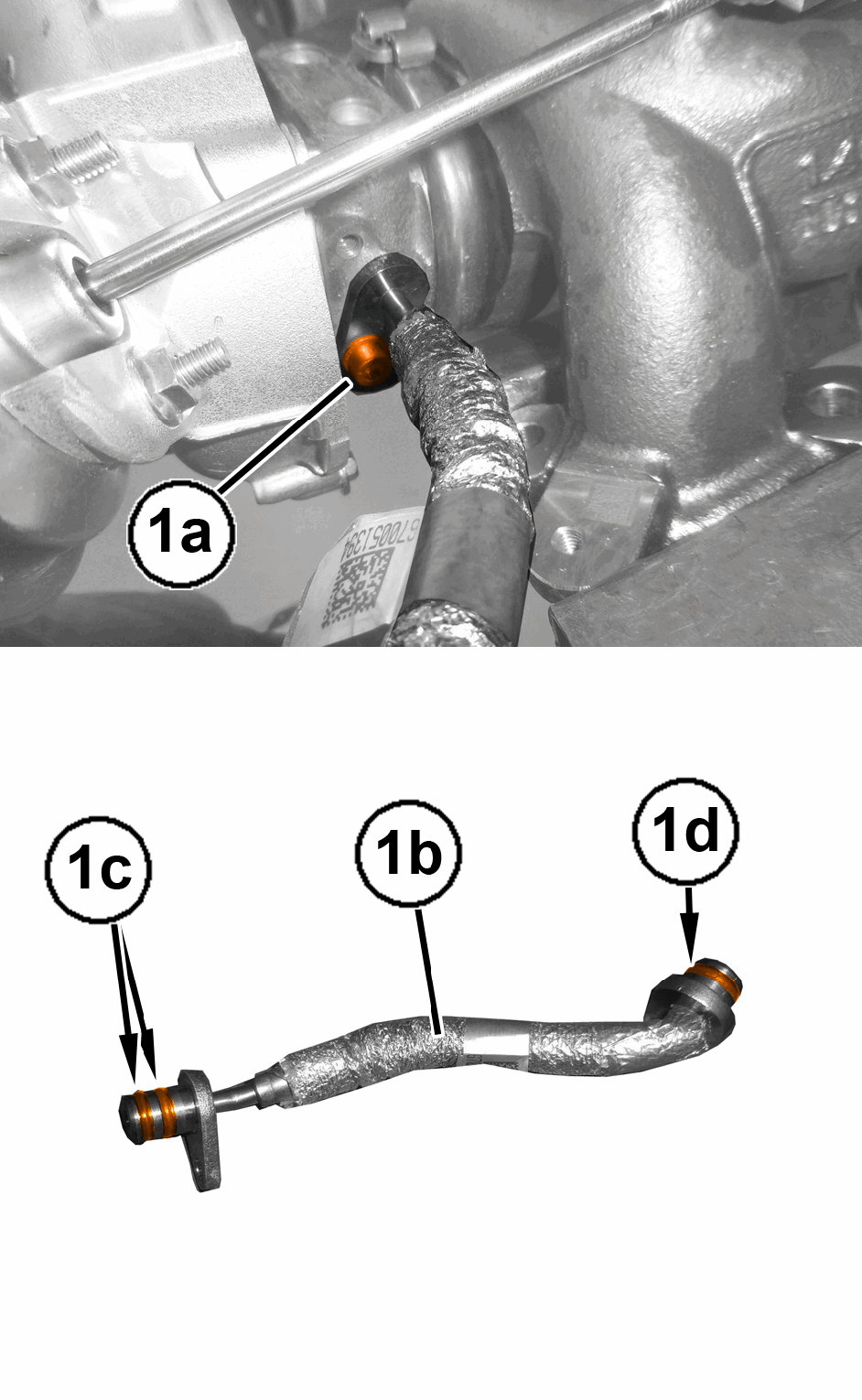

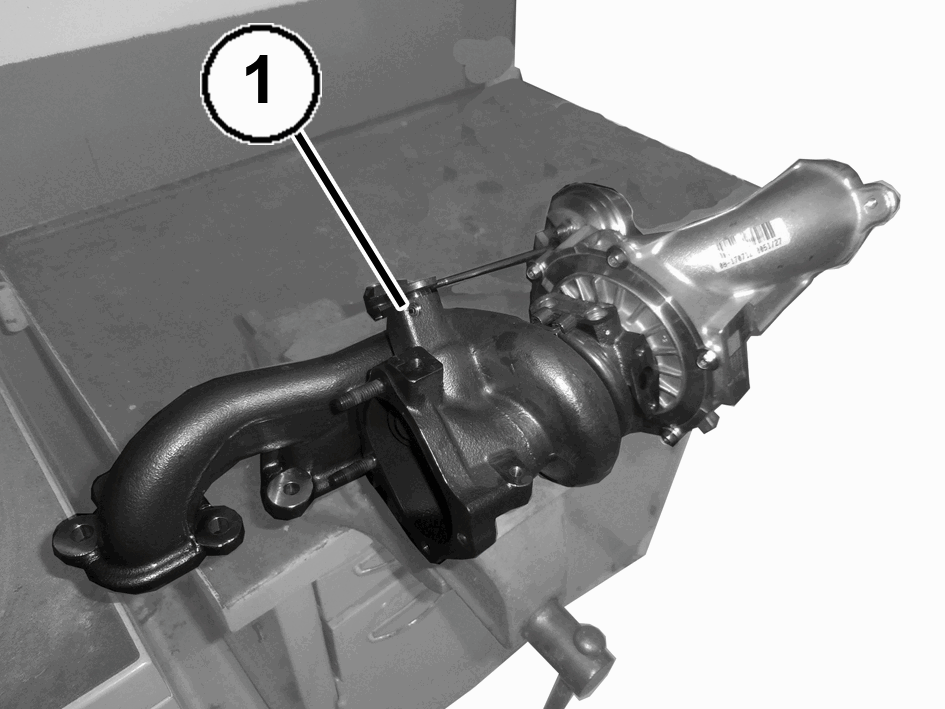

  20. Remove the bolt (1a) and remove the turbocharger oil delivery pipe (1b), complete with O-rings (1c) and (1d).
    GC0195727Courtesy of CHRYSLER GROUP, LLC
  21. Remove the right turbocharger and exhaust manifold assembly (1) from the vice.

INSTALLATION

GC0197181Courtesy of CHRYSLER GROUP, LLC

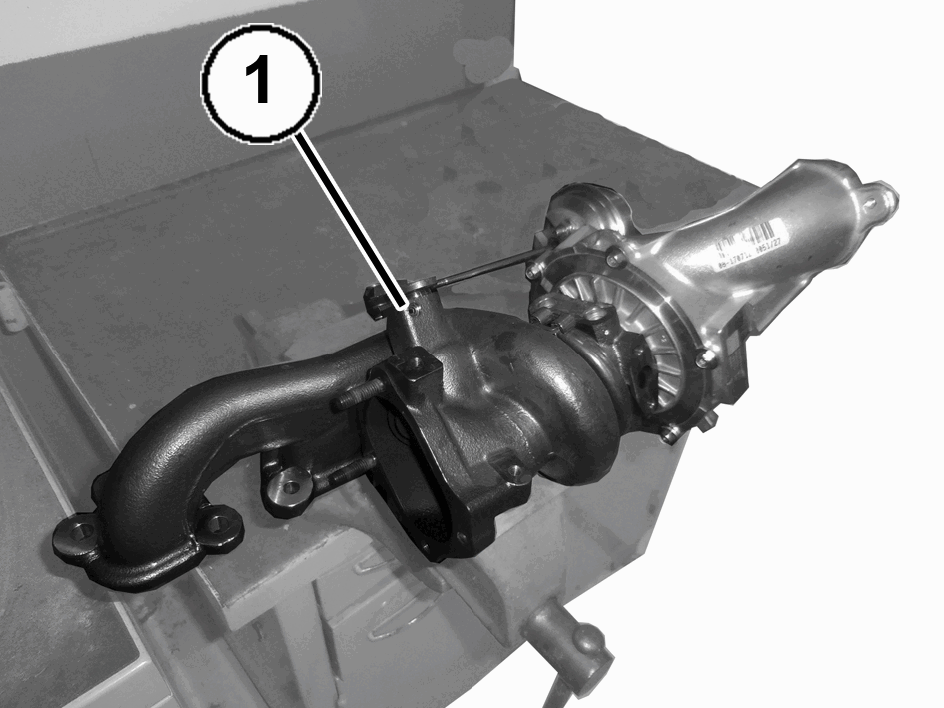

  1. Position the right turbocharger and exhaust manifold assembly (1) in a vice fitted with protective jaws.
    GC0195624Courtesy of CHRYSLER GROUP, LLC

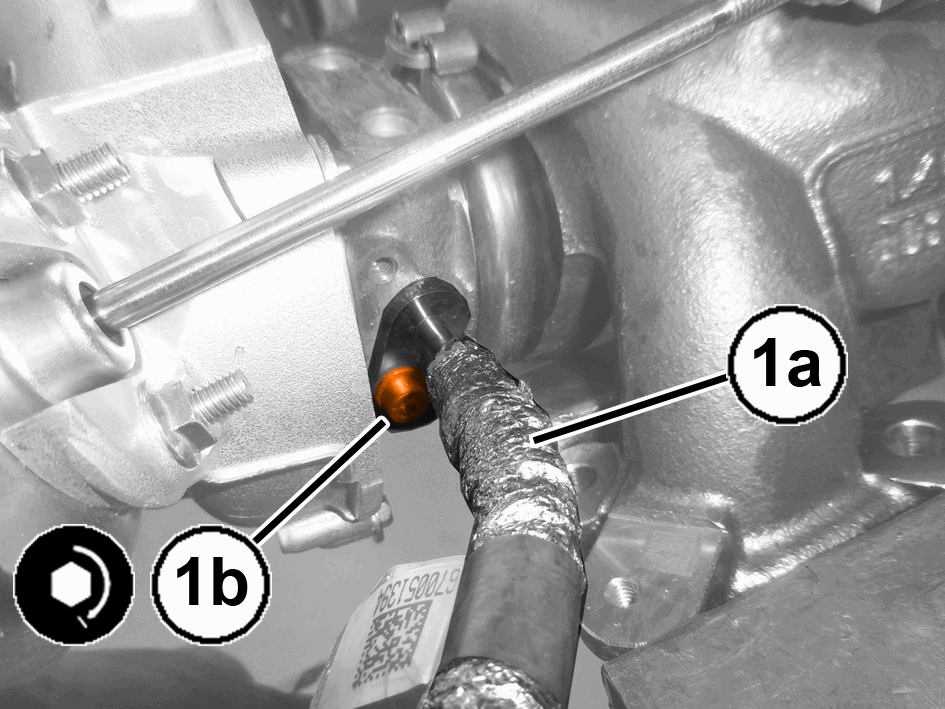

  2. Install the engine oil pipe to the turbocharger (1a), complete with O-rings, and tighten the bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0195651Courtesy of CHRYSLER GROUP, LLC

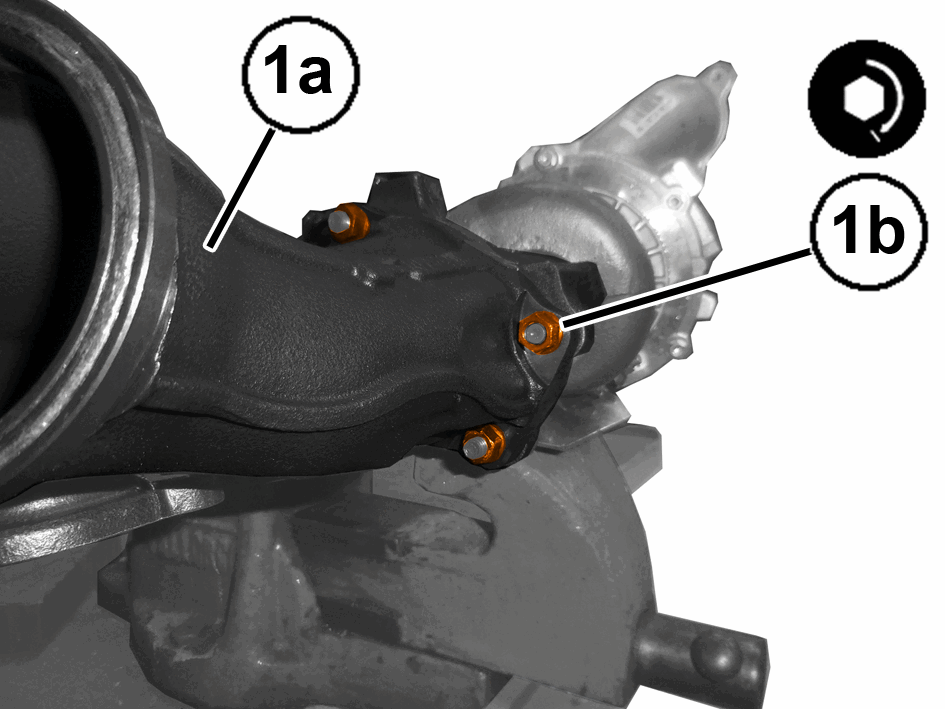

  3. Install the exhaust gas outlet connector (1a) complete with gasket and tighten the new nuts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0196811Courtesy of CHRYSLER GROUP, LLC
  4. Remove the right turbocharger and exhaust manifold assembly (1) from the vice.
    GC0196444Courtesy of CHRYSLER GROUP, LLC

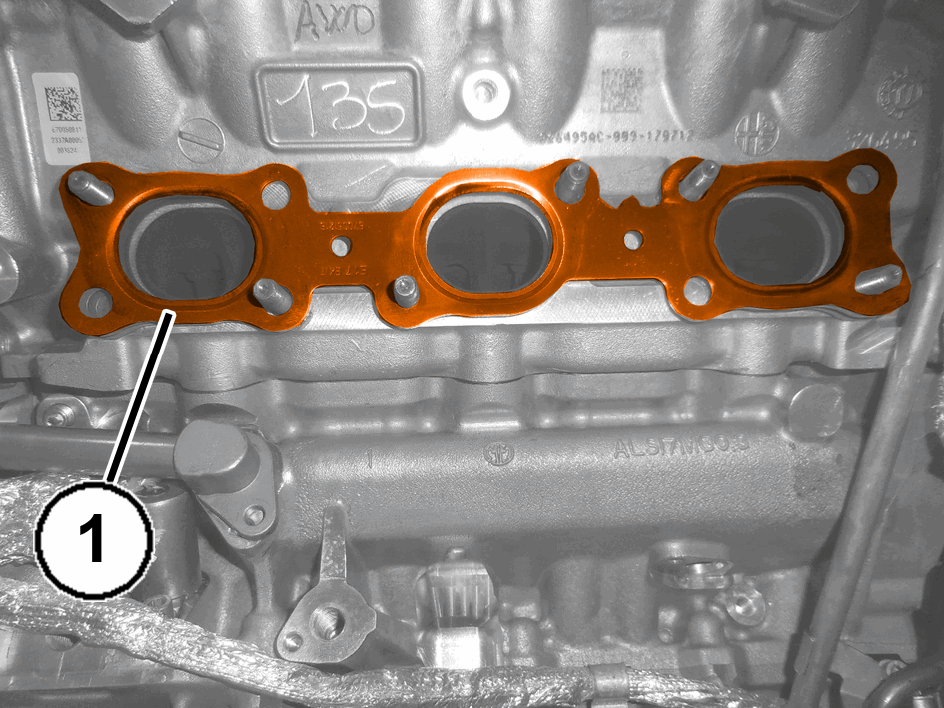

  5. Position the metal gasket (1) on the cylinder head.
    GC0196889Courtesy of CHRYSLER GROUP, LLC

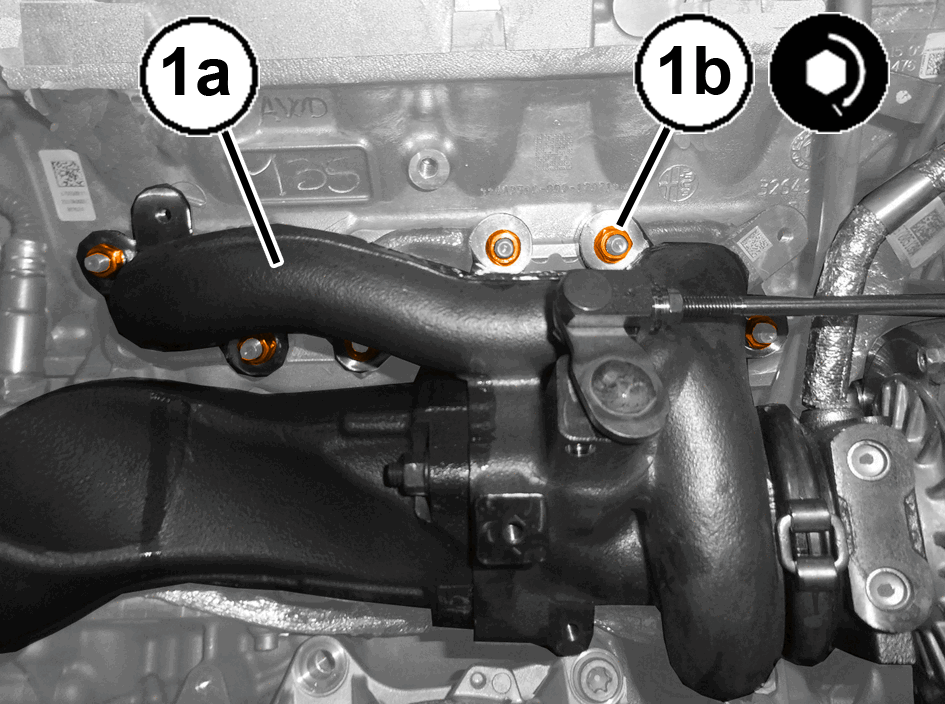

  6. Install the right turbocharger and exhaust manifold assembly (1a) and tighten the new nuts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0197067Courtesy of CHRYSLER GROUP, LLC

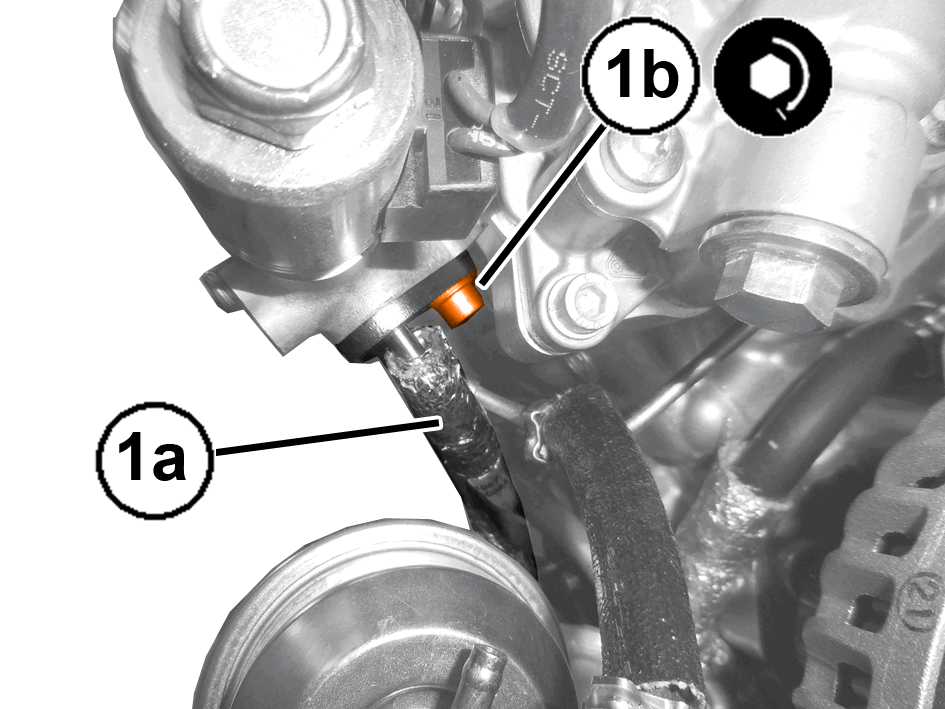

  7. Install the engine oil supply pipe to the turbocharger (1a) and tighten the bolt (1b), engine side, to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0197200Courtesy of CHRYSLER GROUP, LLC
  8. Securely tighten the vacuum air pipes support bracket bolt (1).
    GC0196799Courtesy of CHRYSLER GROUP, LLC

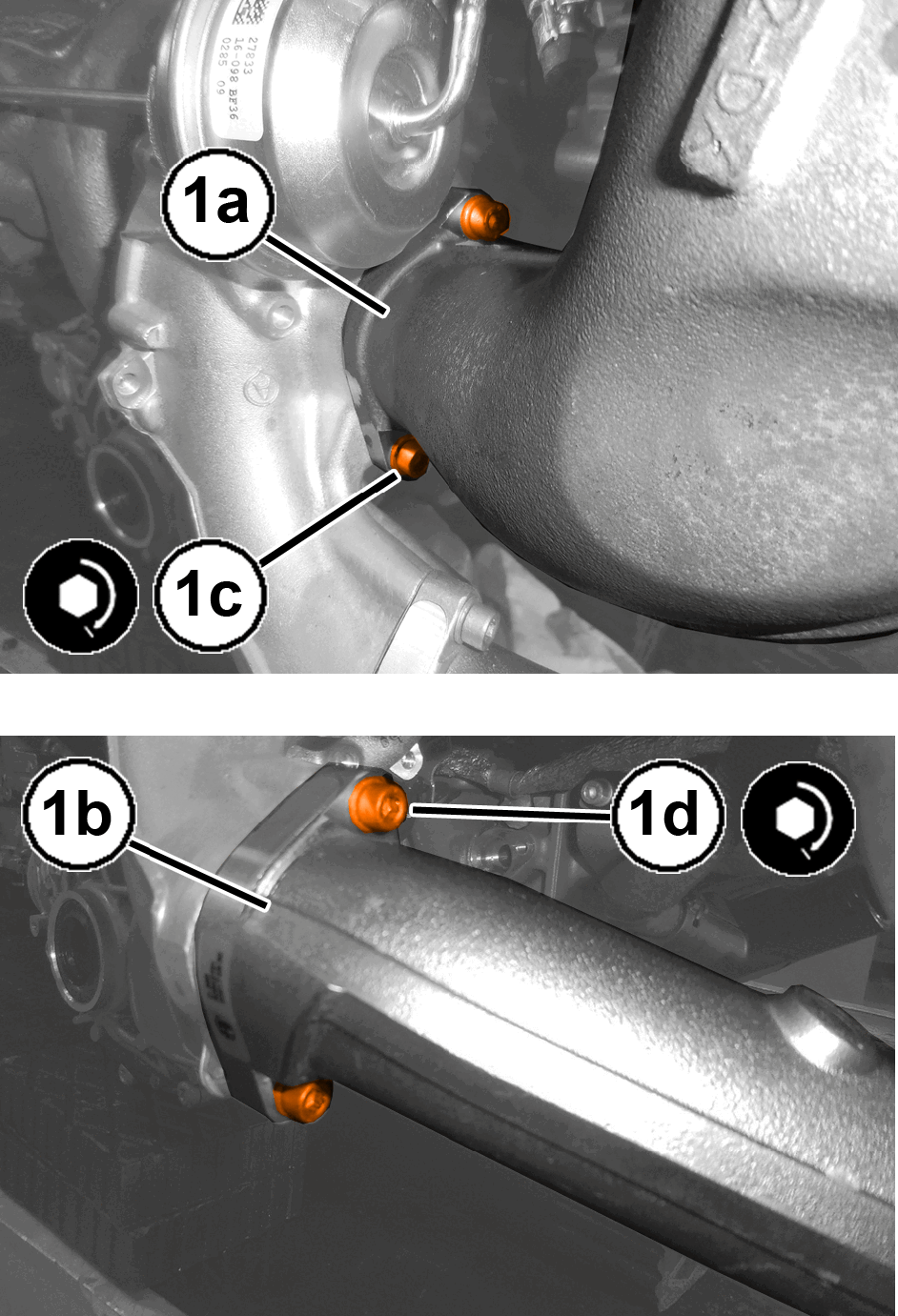

  9. Install the air inlet and outlet pipes to the turbocharger (1a) and (1b) and tighten the bolts (1c) and (1d) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0197299Courtesy of CHRYSLER GROUP, LLC
  10. Install the air vacuum pipe to the Wastegate valve and tighten the band clamp (1).
    GC0196655Courtesy of CHRYSLER GROUP, LLC
  11. Install the engine coolant return pipe (1) to the turbocharger.
    GC0196191Courtesy of CHRYSLER GROUP, LLC

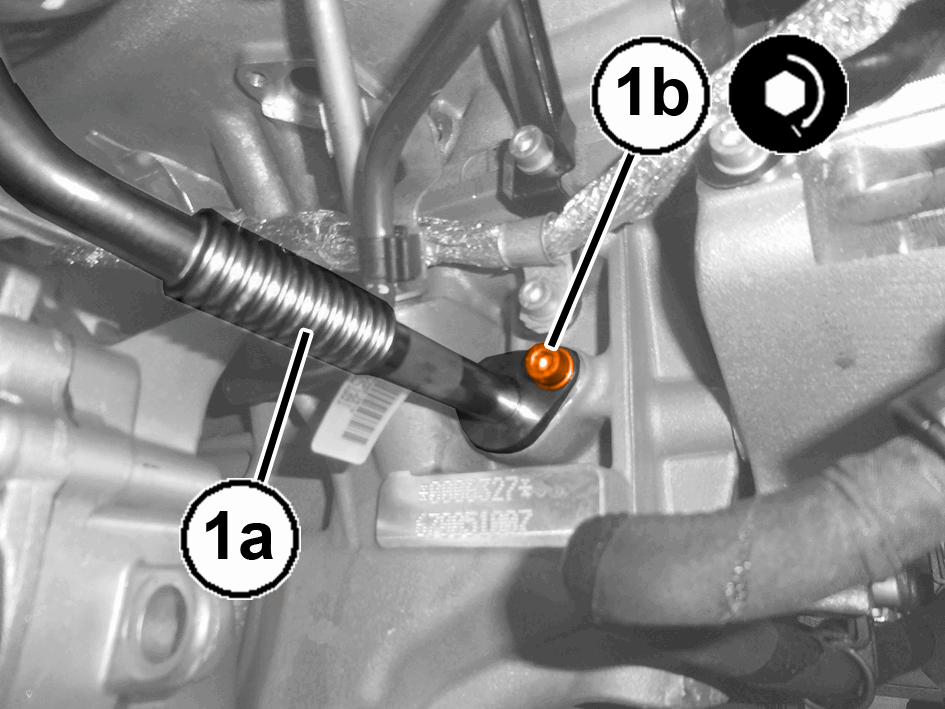

  12. Install the turbocharger engine oil return pipe (1a), complete with gasket and O-ring and tighten the bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0196014Courtesy of CHRYSLER GROUP, LLC

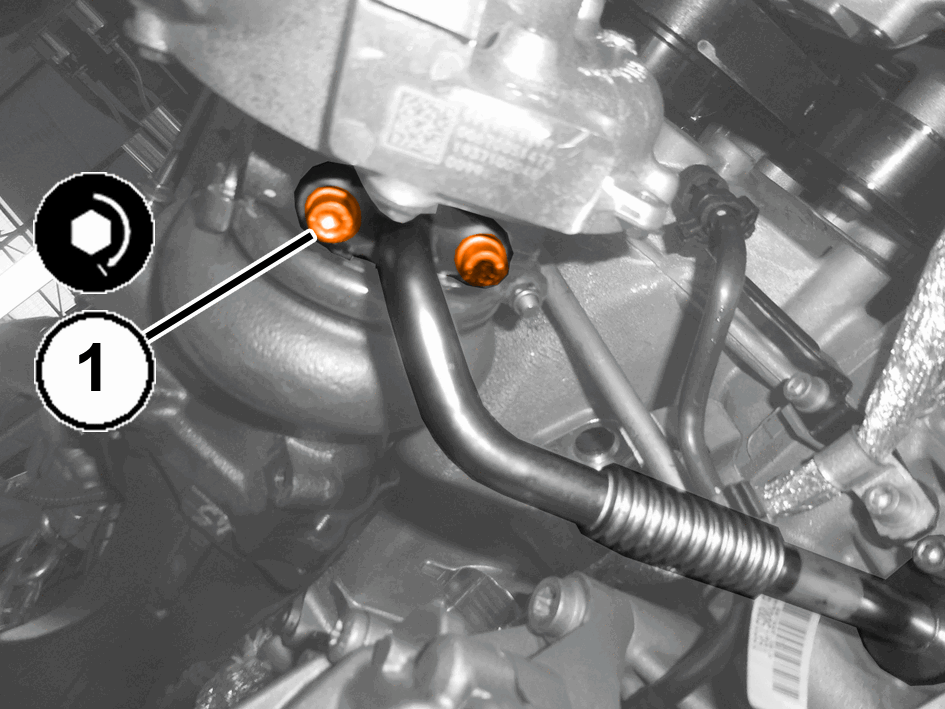

  13. Tighten the turbocharger engine oil return pipe to turbocharger bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0197333Courtesy of CHRYSLER GROUP, LLC
  14. Position the oxygen sensor wiring (1a) and close the retaining clips (1b).
    GC0196163Courtesy of CHRYSLER GROUP, LLC

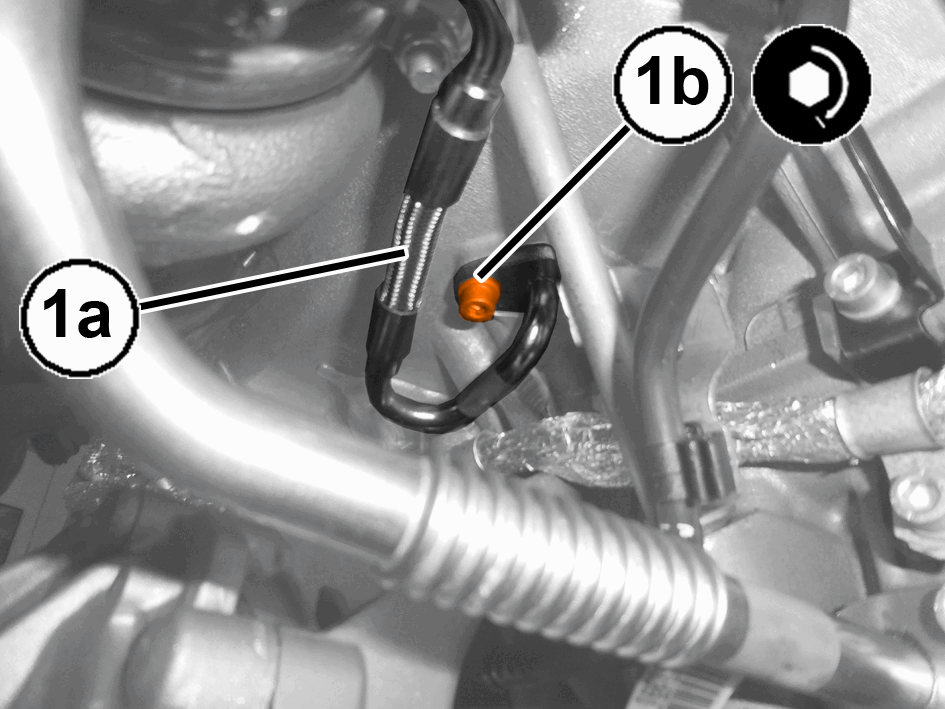

  15. Install the right turbocharger engine coolant pipe (1a), complete with O-rings, and tighten the bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
    GC0196782Courtesy of CHRYSLER GROUP, LLC

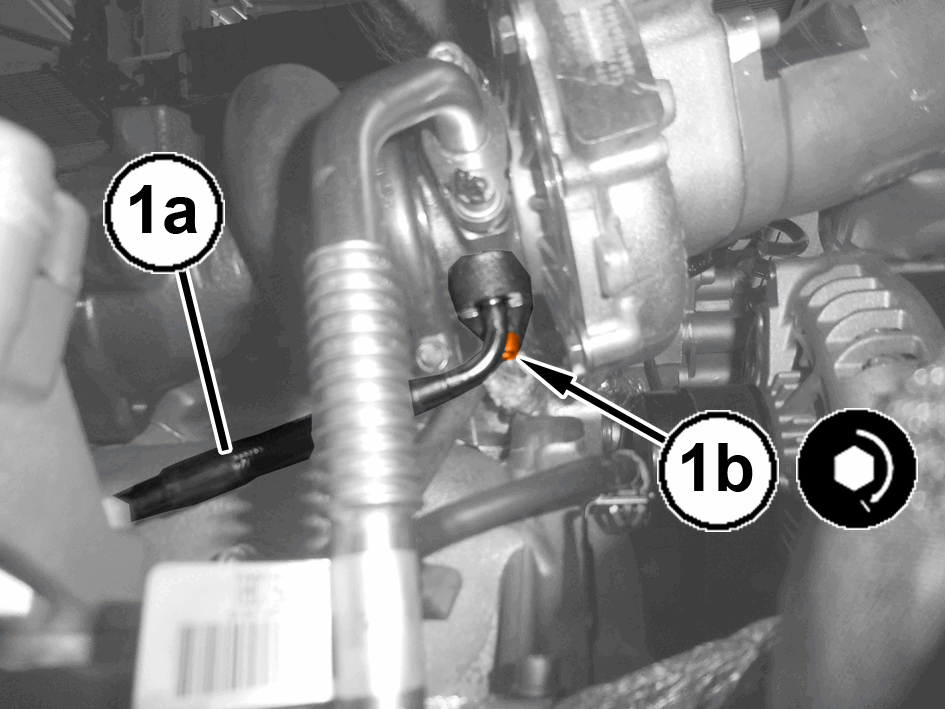

  16. Install the right turbocharger engine coolant supply pipe (1a) and tighten the bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  17. Install the right side turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
  18. Install the engine and transmission to the suspension crossmember. Refer to REMOVAL AND INSTALLATION .
  19. Install the powertrain assembly and suspension crossmember to the vehicle. Refer to REMOVAL AND INSTALLATION .
  20. Connect the negative battery cable.
  21. Remove the support and lower the vehicle.
