Left Side Turbocharger Heat Shield

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the powertrain assembly and suspension crossmember from the vehicle. Refer to REMOVAL AND INSTALLATION .
4. Remove the engine and transmission from the suspension crossmember. Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

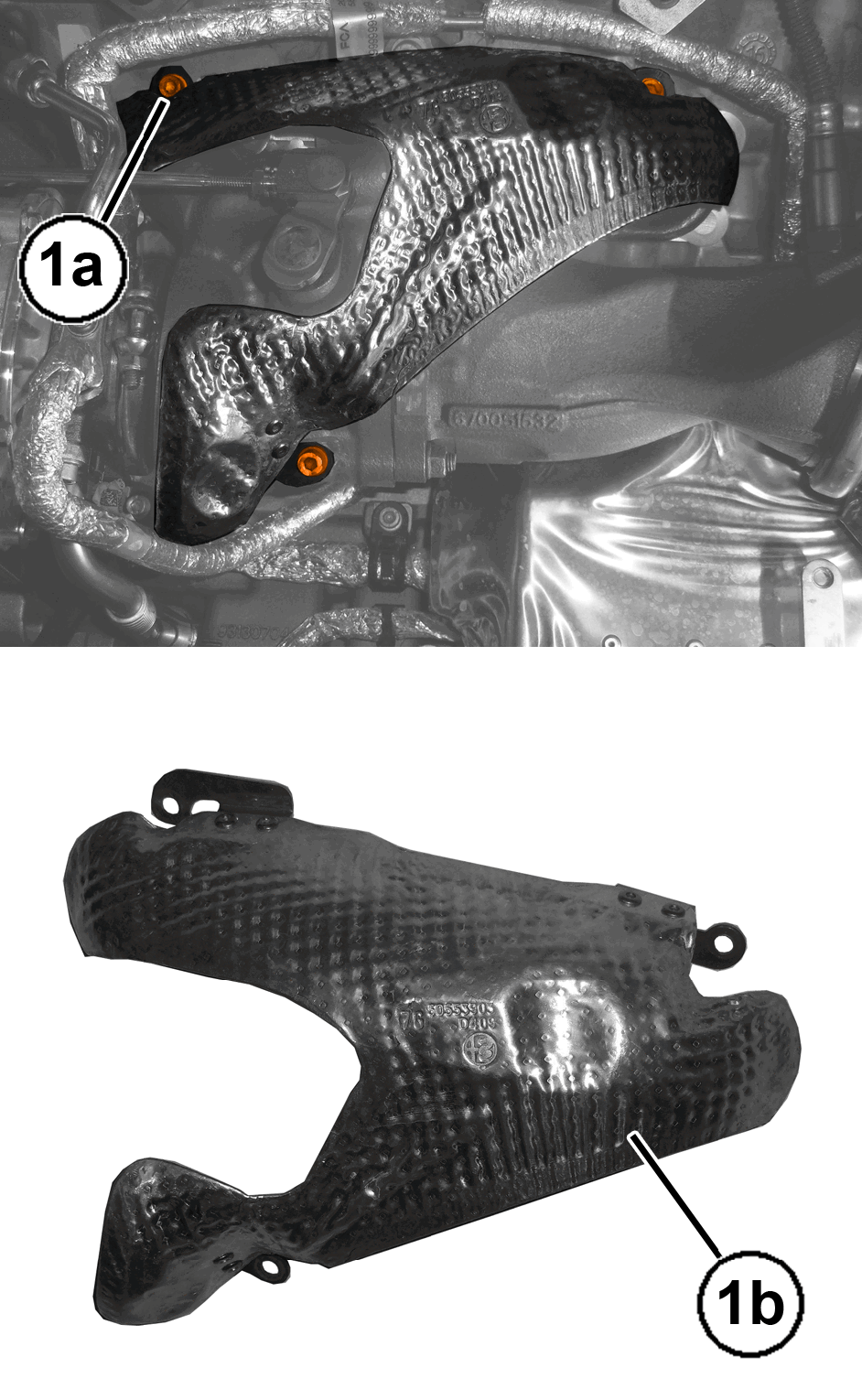

5. Remove the screws (1a) and remove the left side turbocharger heat shield (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

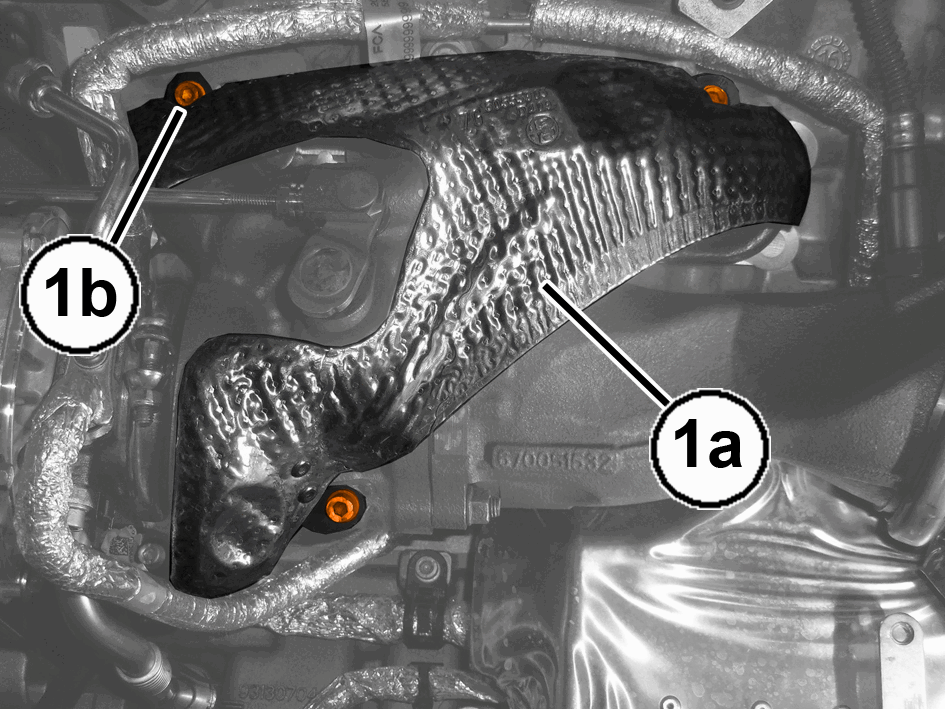

1. Install the left side turbocharger heat shield (1a) and securely tighten the screws (1b).
2. Install the engine and transmission to the suspension crossmember. Refer to REMOVAL AND INSTALLATION .
3. Install the powertrain assembly and suspension crossmember to the vehicle. Refer to REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
5. Remove the support and lower the vehicle.
