Vacuum Reservoir

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the rear half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION or SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .

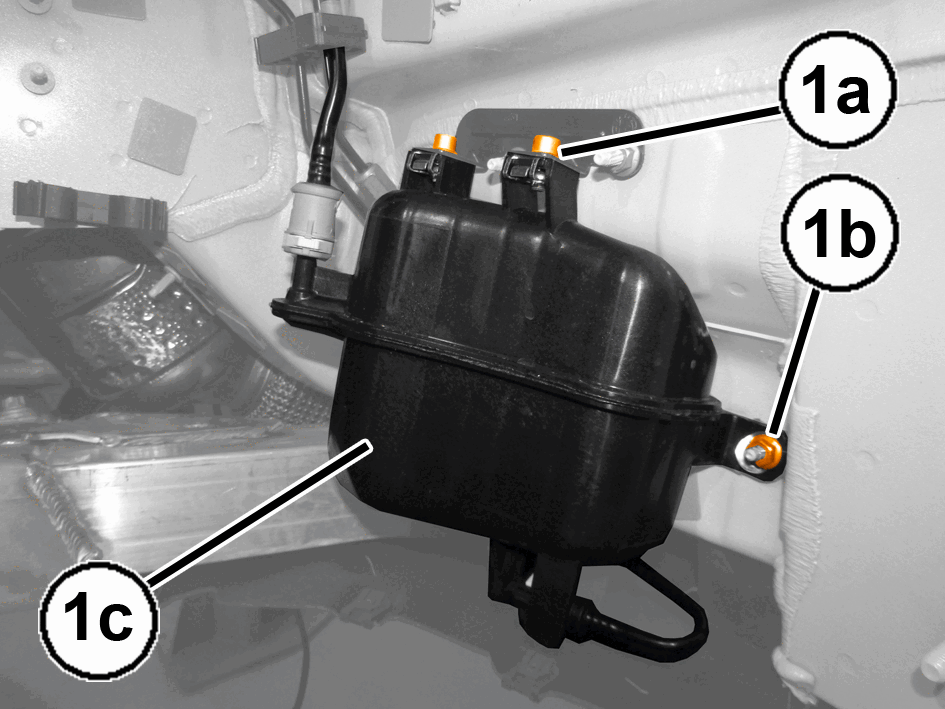

    GC0196578Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (1a) and the nut (1b) and remove the reservoir (1c) from the mounting bracket.

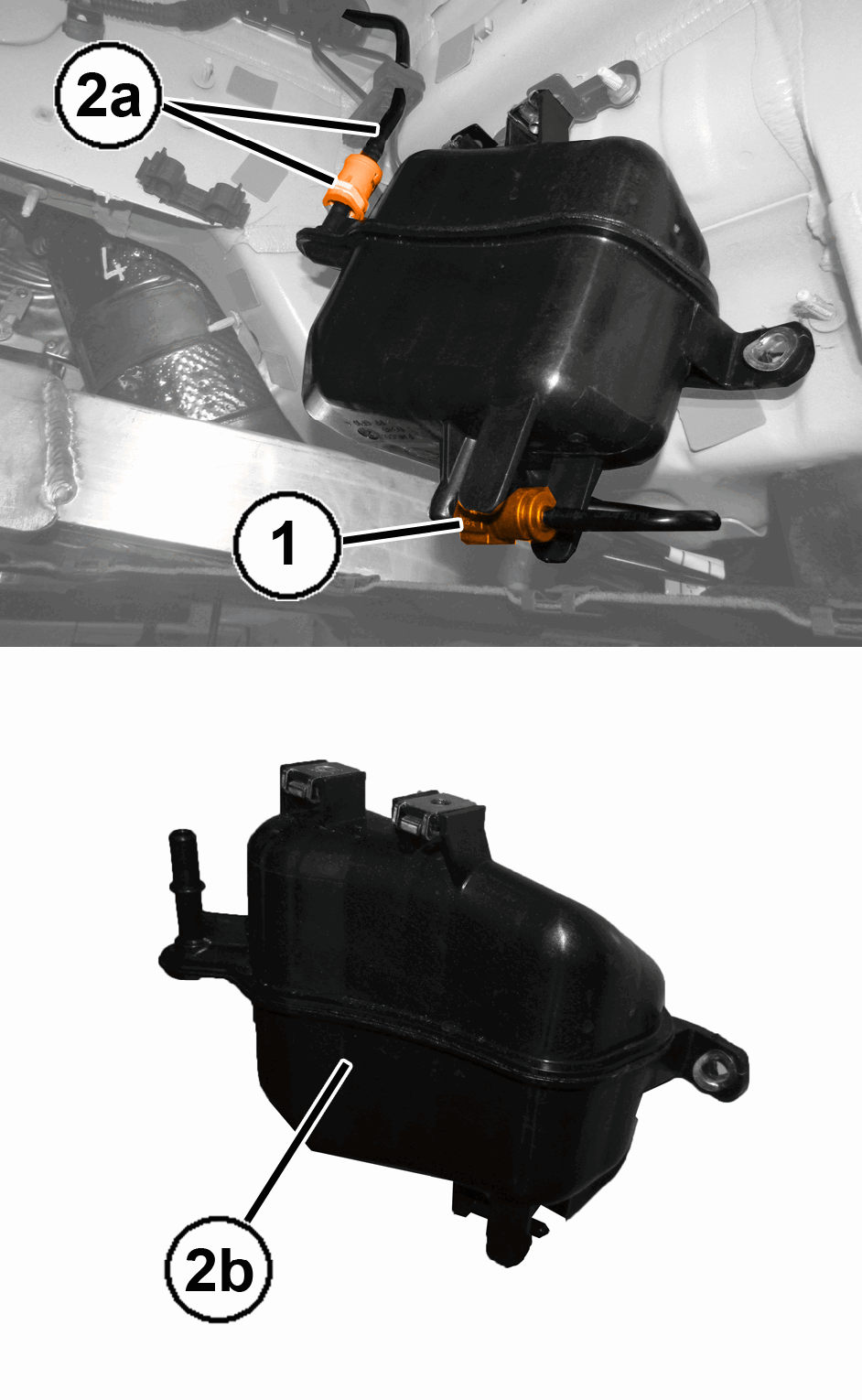

    GC0196441Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the vacuum reservoir supply pipe quick coupling (1).
  5. Disconnect the quick coupling (2a) and remove the vacuum reservoir (2b).
    GC0196797Courtesy of CHRYSLER GROUP, LLC

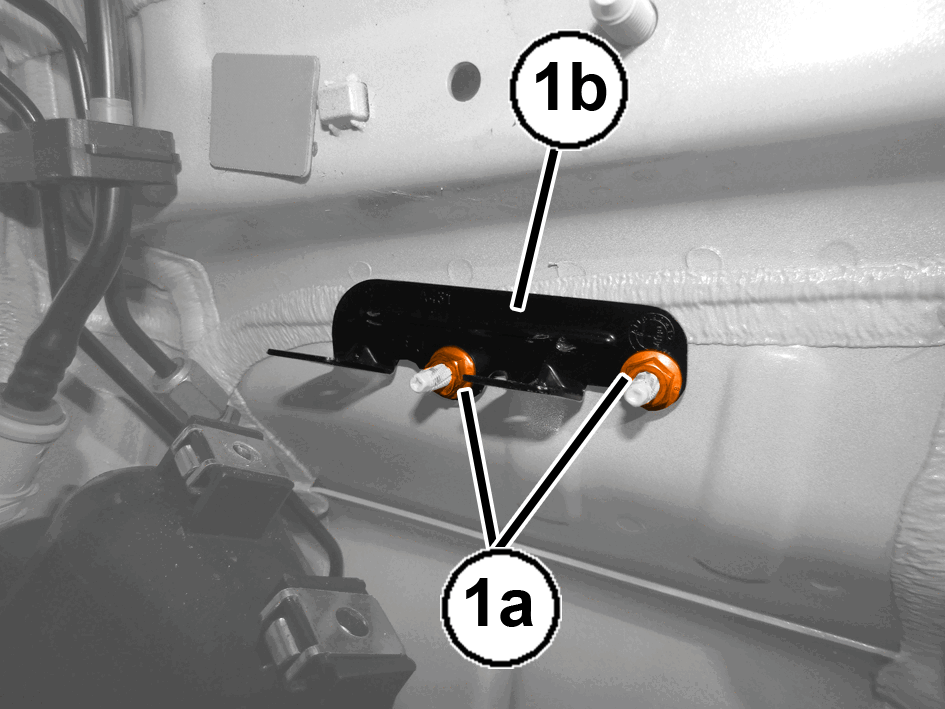

  6. If required, remove the nuts (1a) and remove the vacuum reservoir mounting bracket (1b).

INSTALLATION

  1. If removed, Install the vacuum reservoir mounting bracket and securely tighten the nuts.
  2. Install the vacuum reservoir in the mounting bracket and securely tighten the nut and bolts.
  3. Connect the quick coupling of the vacuum supply pipe.
  4. Connect the vacuum reservoir supply pipe quick coupling.
  5. Install the rear half of the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION or SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
  6. Remove the support and lower the vehicle.
