Left Side

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the left air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

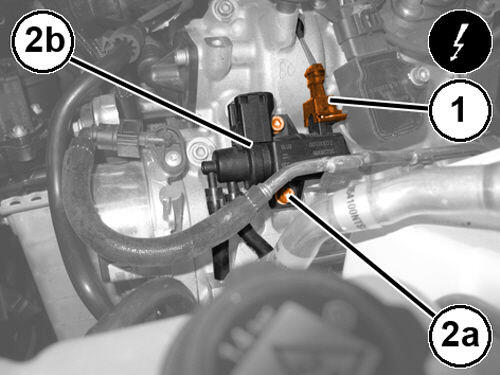

3. Disconnect the left turbocharger waste-gate solenoid wire harness connector (1).
4. Remove the bolts (2a) and the waste-gate solenoid (2b).

   Courtesy of CHRYSLER GROUP, LLC

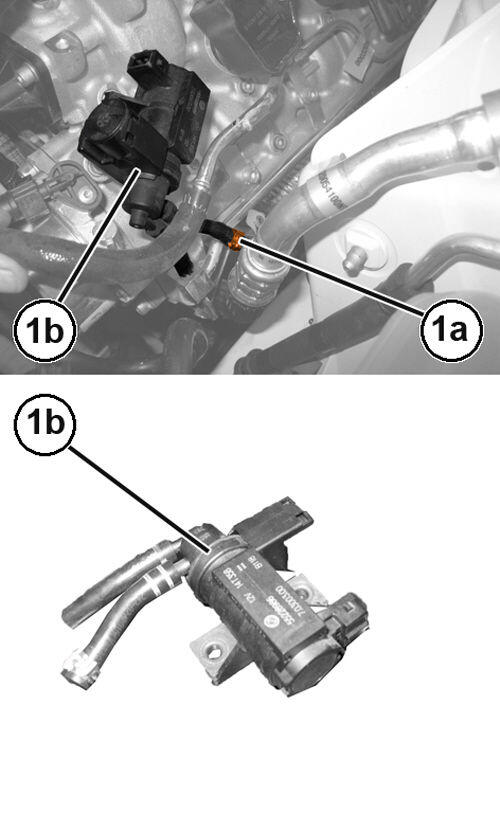

5. Loosen the clamp (1a) and remove the left turbocharger waste-gate solenoid (1b) and the hose.

INSTALLATION

1. Install the left turbocharger waste-gate solenoid hose and close the clamp.
2. Install the left turbocharger waste-gate solenoid and securely tighten the bolts.
3. Connect the left turbocharger waste-gate solenoid wire harness connector.
4. Install the left air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable.
