Right Turbocharger Coolant Outlet Tube

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the right turbocharger/exhaust manifold assembly. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .

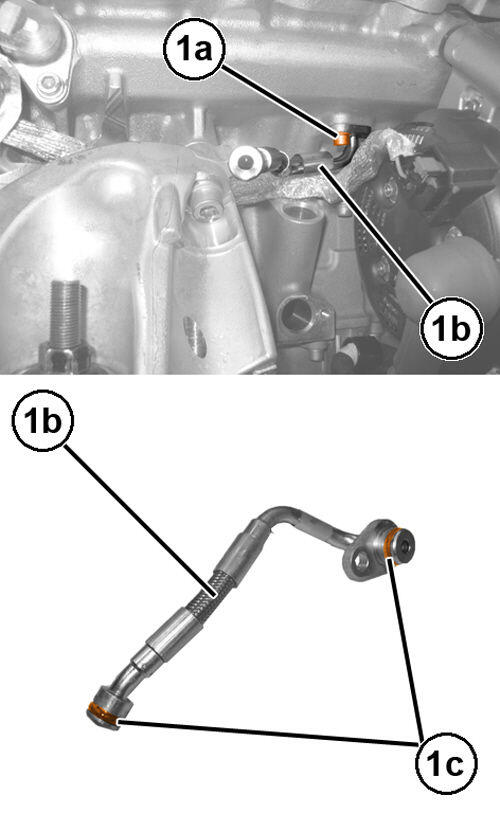

    GC0193200Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolt (1a) and the engine coolant tube to the right turbocharger (1b), complete with O-ring (1c).

INSTALLATION

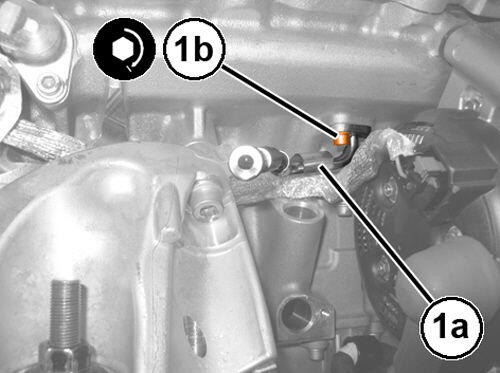

GC0194984Courtesy of CHRYSLER GROUP, LLC
  1. Using a NEW  O-rings, install the engine coolant tube to the right turbocharger (1a), and tighten the bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the right turbocharger/exhaust manifold assembly. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
