Left Turbocharger Coolant Outlet Tube

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the left turbocharger/exhaust manifold assembly. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .

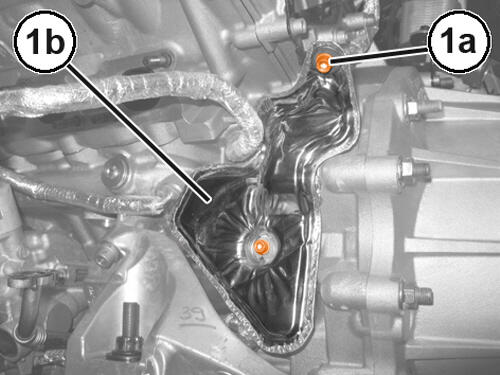

    GC0207781Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (1a) and the heat shield (1b).

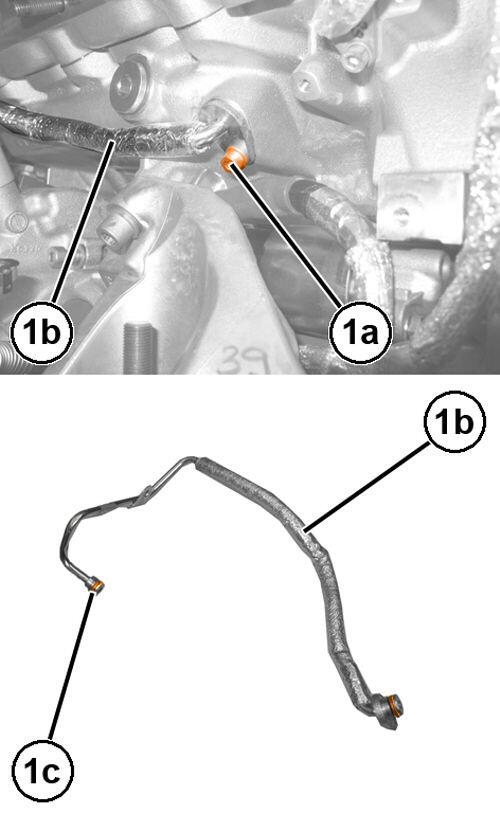

    GC0193593Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bolt (1a) and the engine coolant pipe to the left turbocharger (1b), complete with O-ring (1c).

INSTALLATION

  1. Using NEW  O-rings, install the engine coolant pipe to the left turbocharger (1a), and tighten the bolt (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the heat shield and securely tighten the bolts.
  3. Connect the negative battery cable.
