Right Throttle Body Spacer
WARNING: This page is about a different variant/trim than selected.
REMOVAL
- Remove the right throttle body air inlet hose. Refer to
COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .

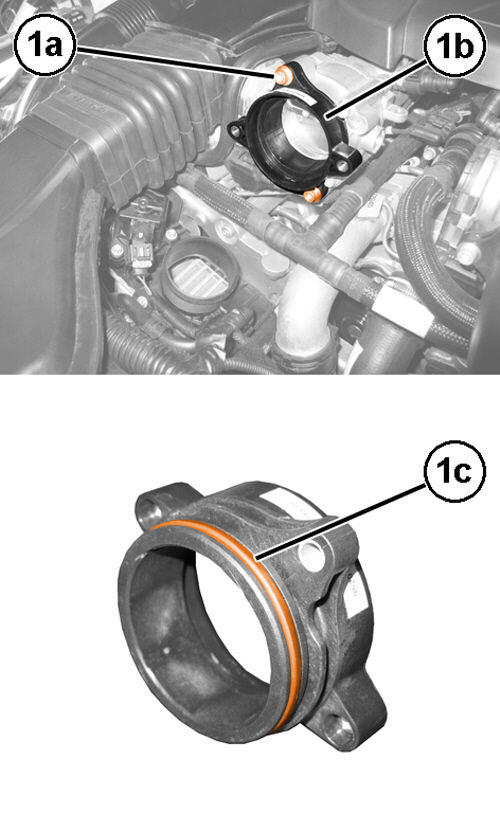

- Remove the bolts (1a) and the right throttle body spacer (1b) with the with O-ring (1c).
INSTALLATION
- Using a NEW O-ring, install the right throttle body and securely tighten the bolts.
- Install the right throttle body air inlet hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
