Right Throttle Body Air Inlet Hose

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

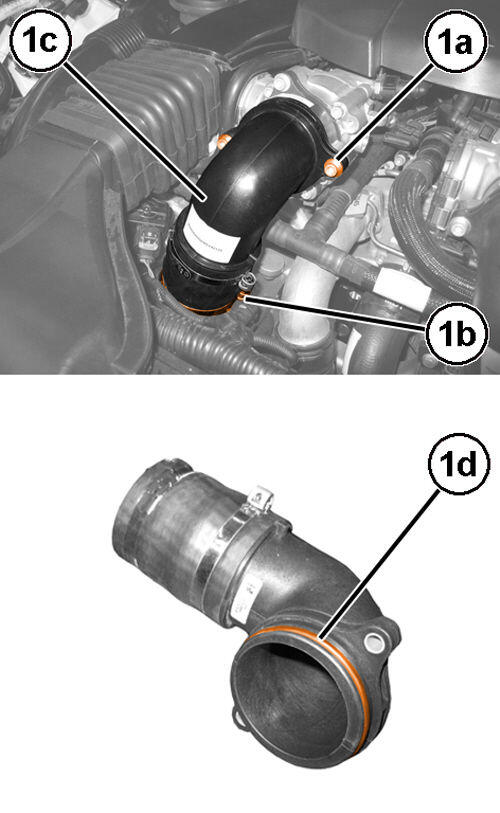

1. Loosen the clamp (1b) remove the bolts (1a), and the air inlet tube from the right throttle body (1c) with the O-ring (1d).
2. Loosen the clamp and disconnect the hose from the air inlet tube.

INSTALLATION

1. Connect the hose to the air inlet tube and securely tighten the clamp.
2. Using a NEW  O-ring, install the air inlet tube onto the right throttle body and securely tighten the bolts and the clamp.
