Left Throttle Body Spacer

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the left throttle body air inlet hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .

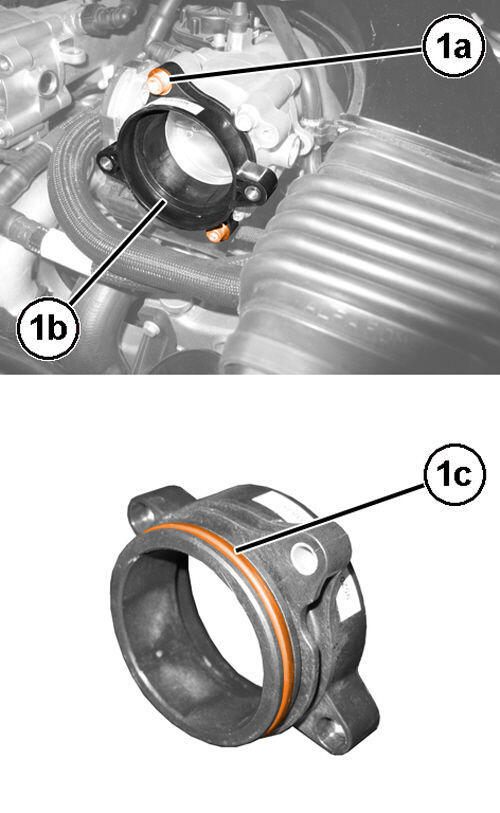

    GC0175066Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (1a) and the left throttle body spacer (1b) with the with O-ring (1c).

INSTALLATION

  1. Using a NEW  O-ring, install the left throttle body and securely tighten the bolts.
  2. Install the left throttle body air inlet hose. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
