Left Charge Air Water Cooler Tube To Turbocharger Inlet

WARNING: This page is about a different variant/trim than selected.

REMOVAL

GC0175073

Courtesy of CHRYSLER GROUP, LLC

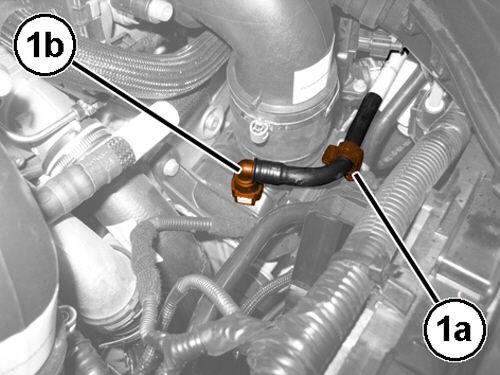

Open the retaining clip (1a) and disconnect the quick coupling (1b).

Courtesy of CHRYSLER GROUP, LLC

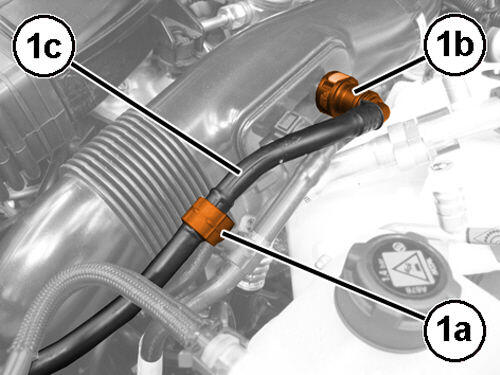

Open the retaining clips (1a), disconnect the quick coupling (1b) and remove the tube (1c).

INSTALLATION

Install the tube, connect the quick coupling and close the retaining clips.
Connect the quick coupling and close the retaining clip.
