Left Air Hose Between Turbocharger And Charge Air Water Cooler

REMOVAL

1. Remove the left turbocharger air inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

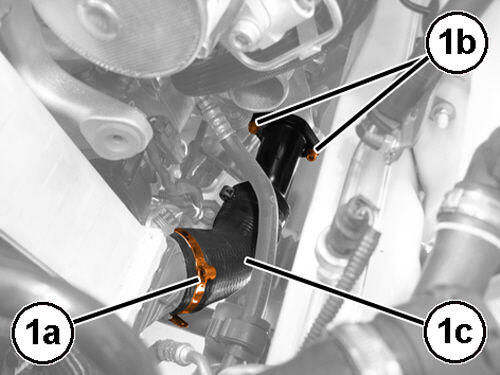

2. Loosen the clamp (1a) and remove the bolts (1b) and the air hose (1c) with gasket.

   Courtesy of CHRYSLER GROUP, LLC

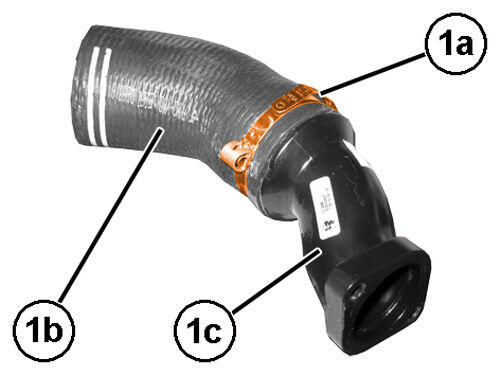

3. Loosen the clamp (1a) and disconnect the air delivery hose (1b) from the air tube (1c).

INSTALLATION

1. Connect the air delivery hose to the air tube and securely tighten the clamp.
2. Using a NEW  gasket, install the left air hose and securely tighten the bolts then the clamp.
3. Install the left turbocharger air inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
