Charge Air Water Cooler Bracket

REMOVAL

1. Remove the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .
2. Remove the A/C compressor. Refer to COMPRESSOR, A/C, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

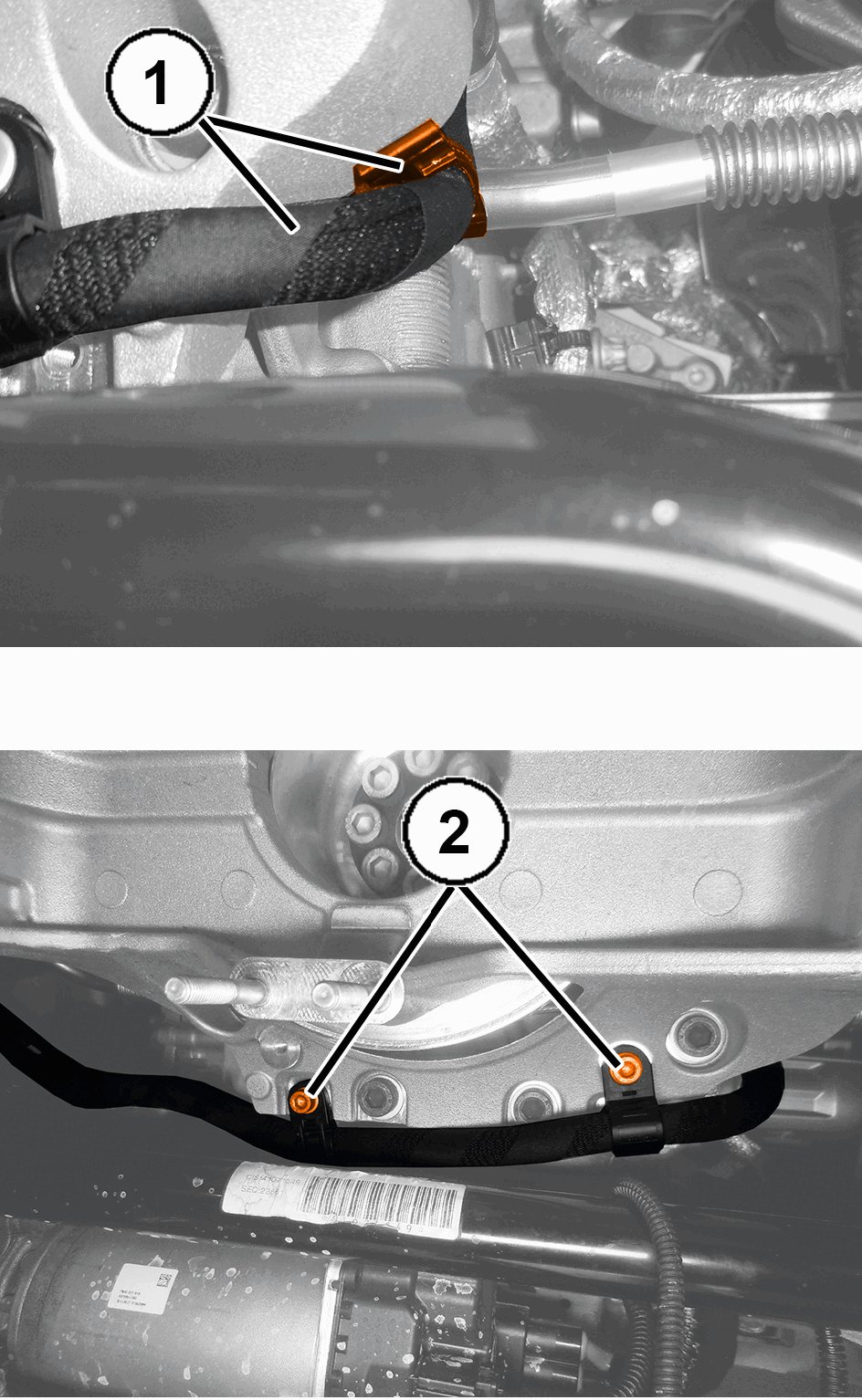

3. Disconnect the alternator wire harness from the intermediate retainers (1).
4. Remove the two bolts (2) securing the generator wire harness to the charge air water cooler bracket.

   Courtesy of CHRYSLER GROUP, LLC

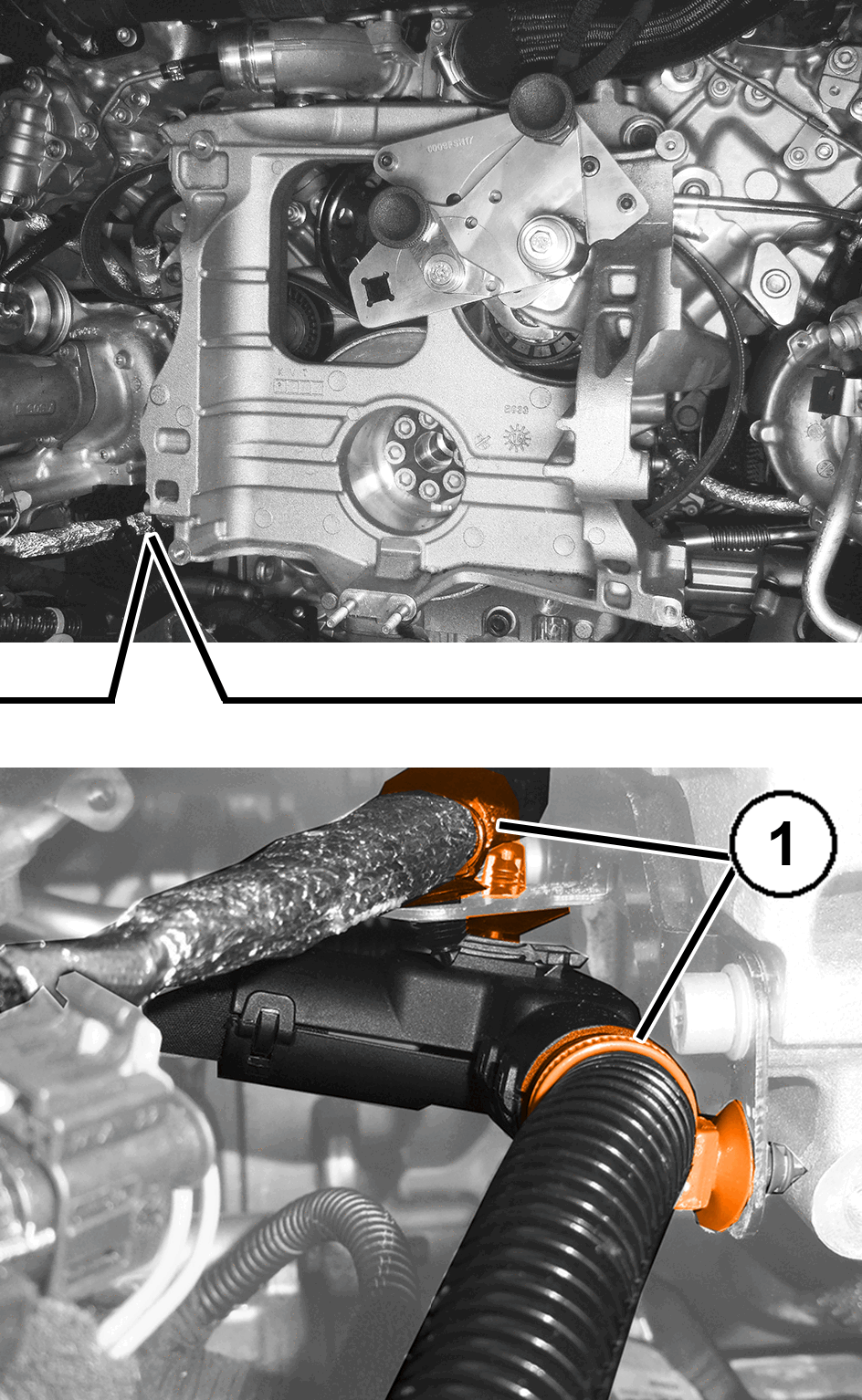

5. Disconnect the generator wire harness retaining clip (1).

   Courtesy of CHRYSLER GROUP, LLC

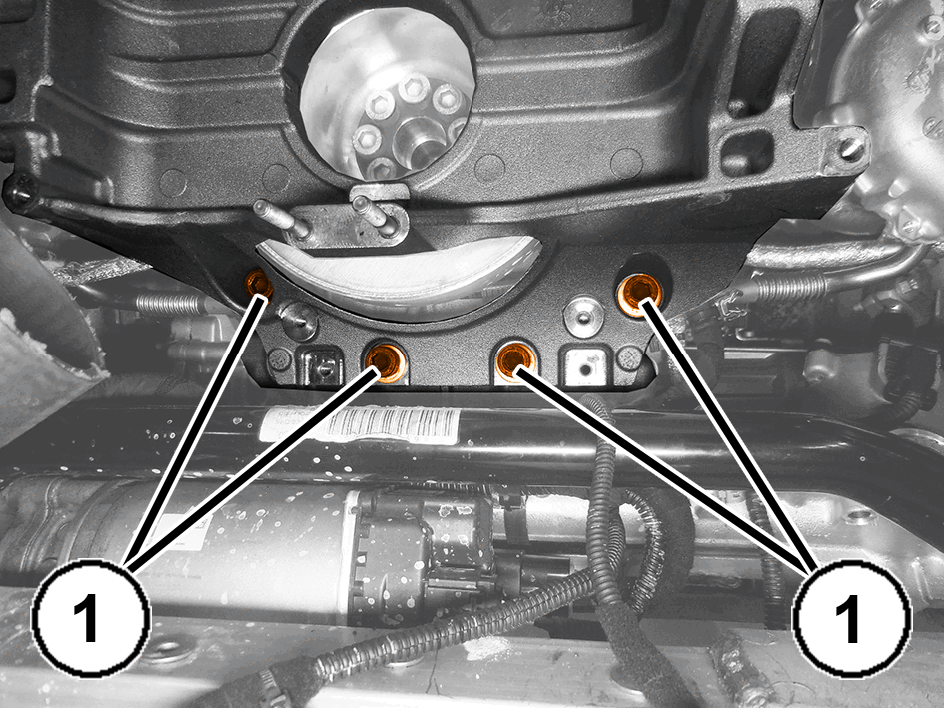

6. Remove the lower four bolts (1) securing the charge air water cooler bracket.

   Courtesy of CHRYSLER GROUP, LLC

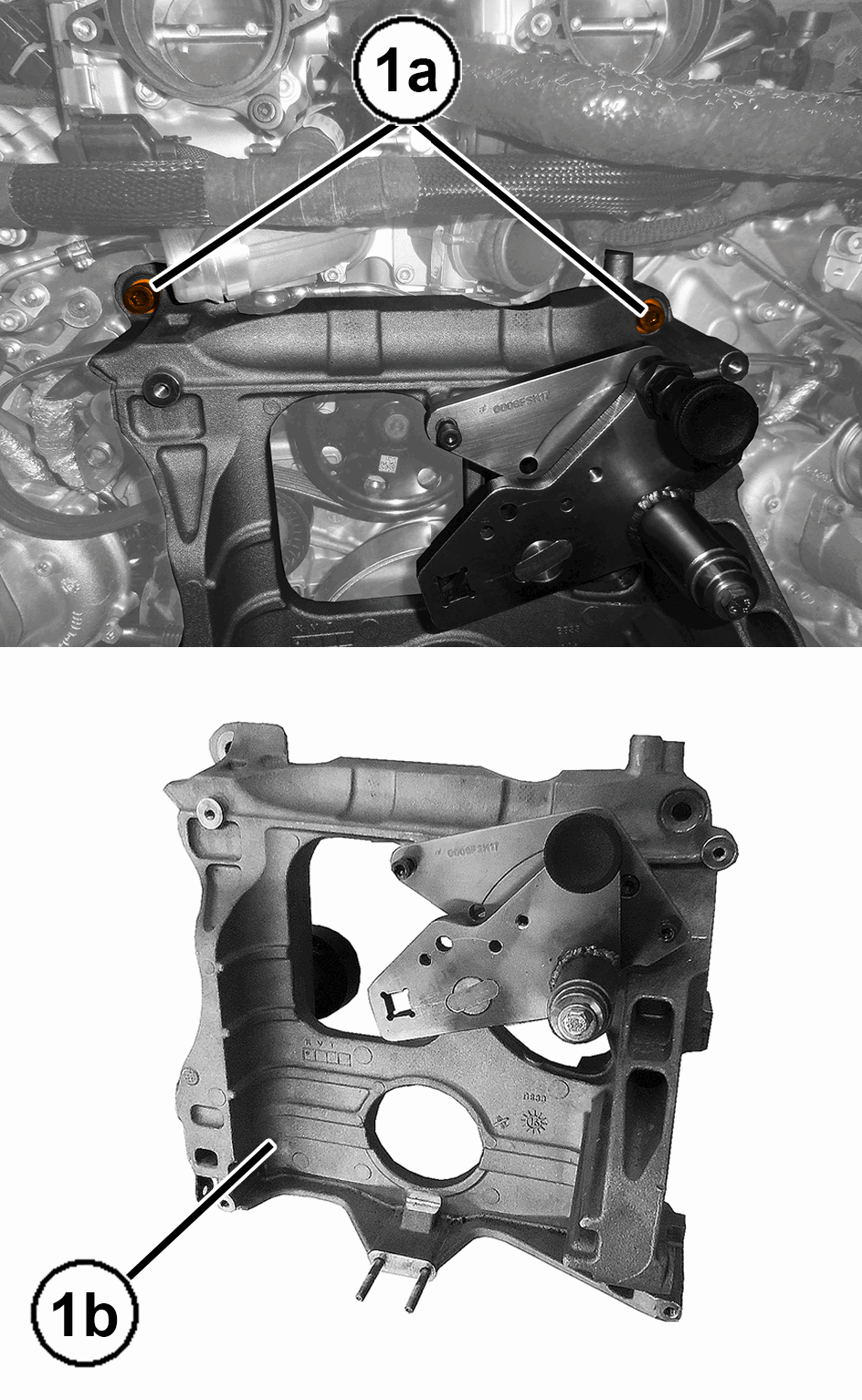

7. Remove the upper two bolts (1a) and remove the charge air water cooler bracket (1b).

   Courtesy of CHRYSLER GROUP, LLC

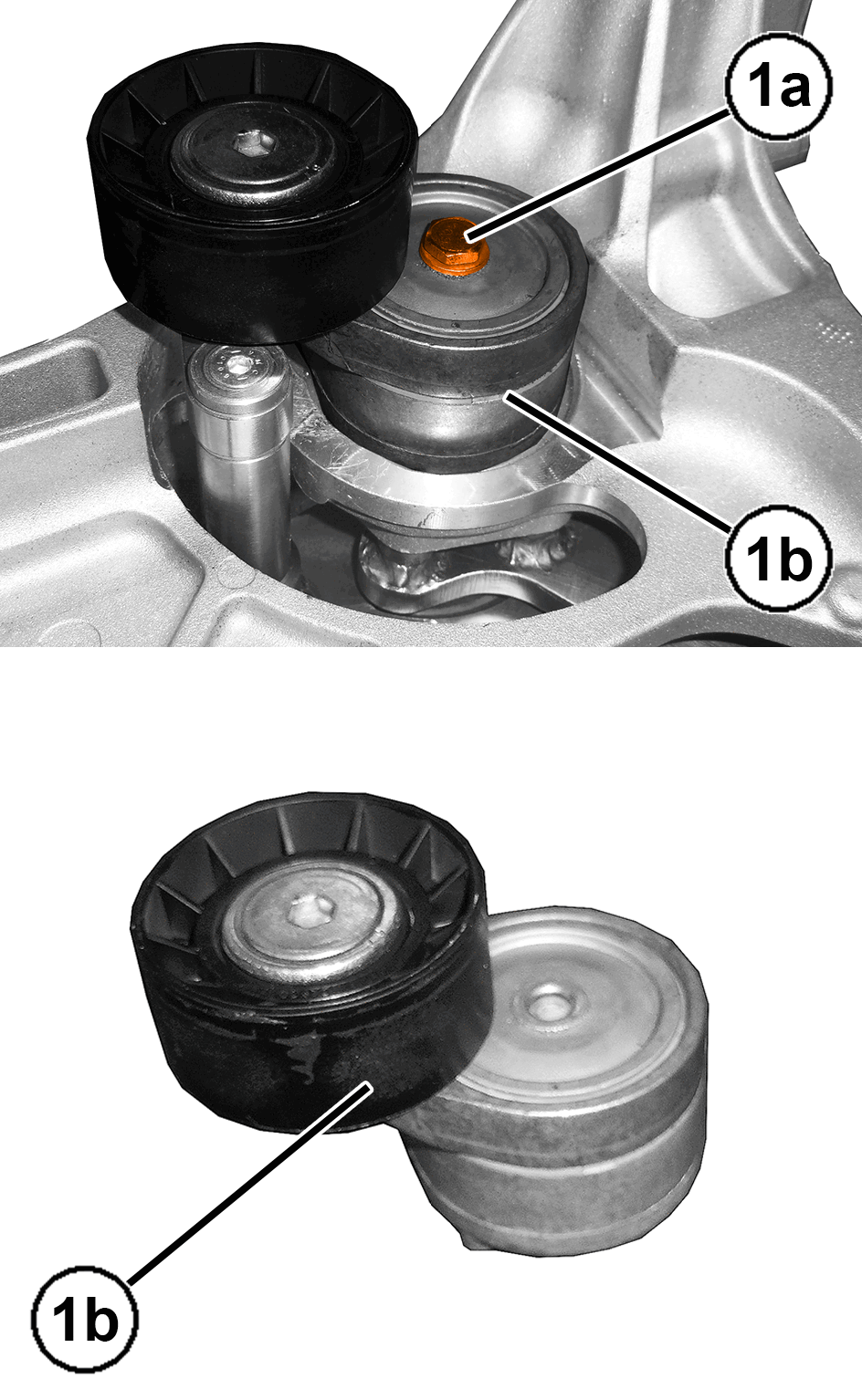

8. On the bench, release the single drive belt stretcher tool, undo the bolt (1a) and the single drive belt mobile stretcher (1b).

   Courtesy of CHRYSLER GROUP, LLC

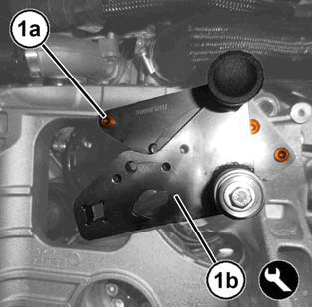

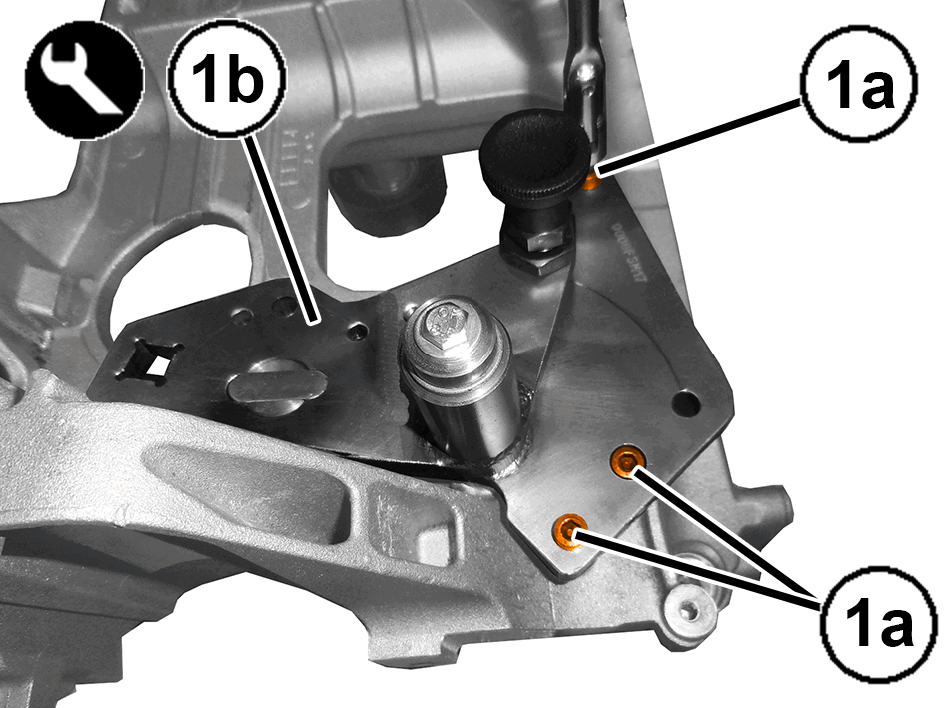

9. Remove the three bolts (1a) and remove the single drive belt stretcher tool (1b).

   Courtesy of CHRYSLER GROUP, LLC

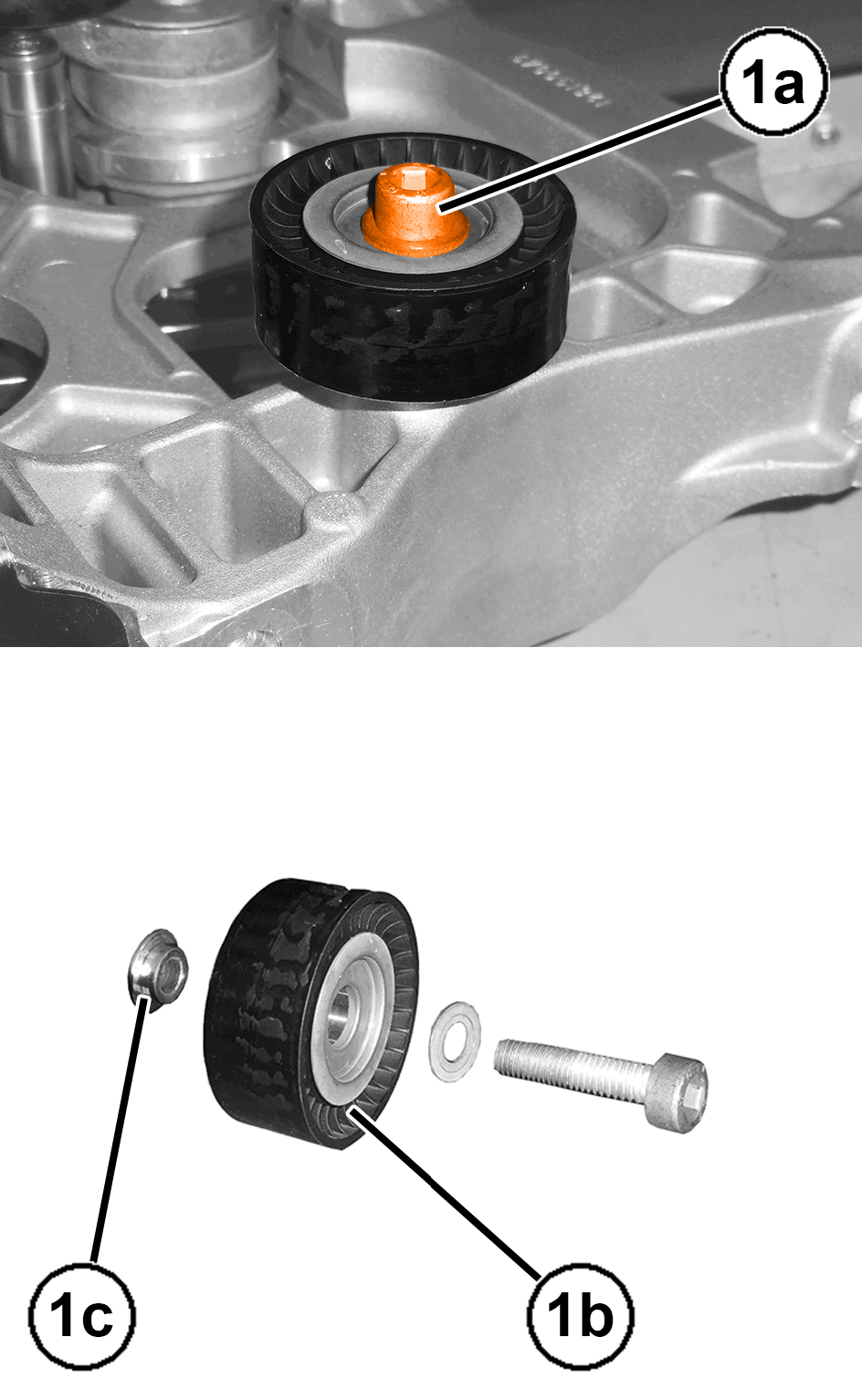

10. Remove the bolt (1a) and the fixed stretcher (1b) and bushing (1c).

    Courtesy of CHRYSLER GROUP, LLC

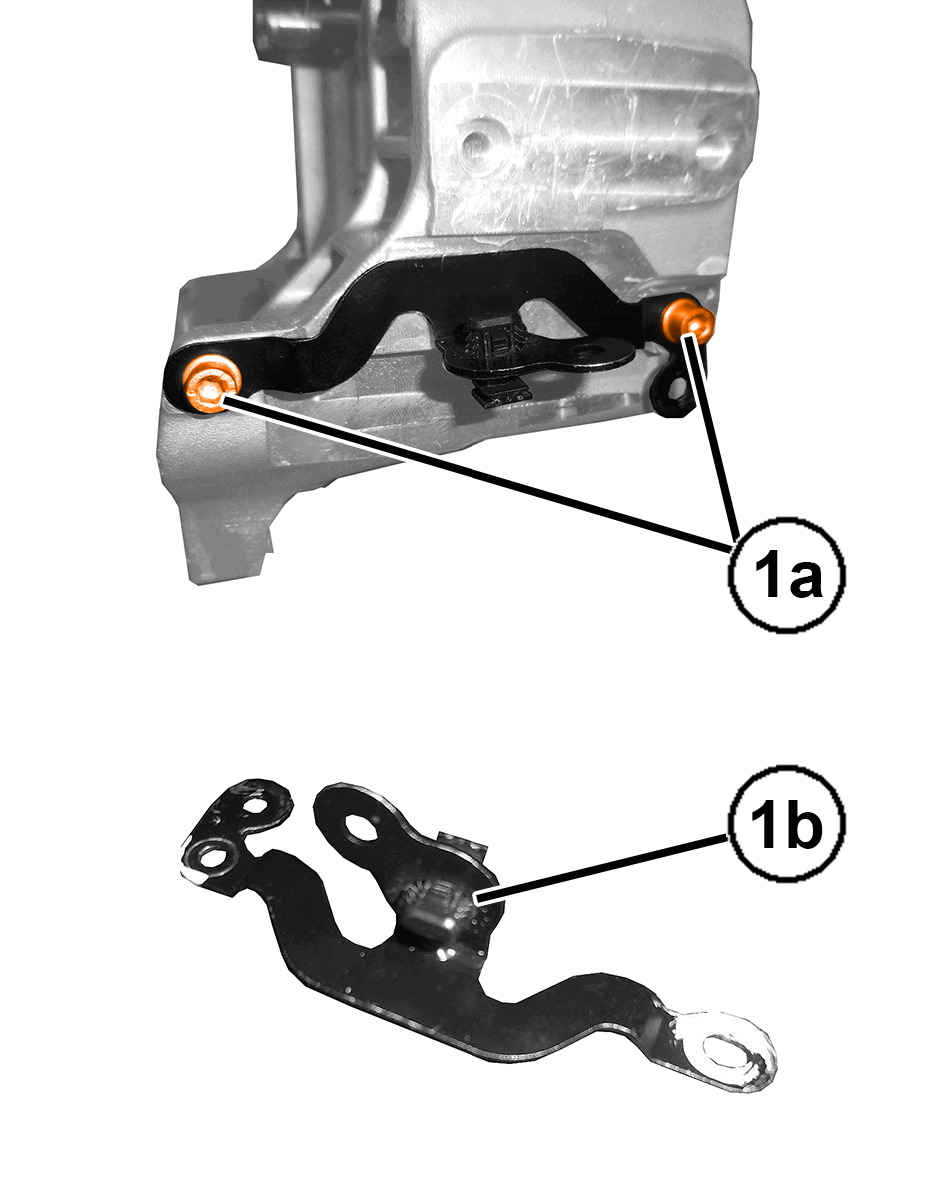

11. If necessary, remove the two bolts (1a) and generator wire support bracket (1b).

INSTALLATION

1. Position the charge air water cooler bracket on a secure workbench.

   Courtesy of CHRYSLER GROUP, LLC

2. If necessary, install the generator wire harness support bracket (1b) and securely tighten two bolts (1a).

   Courtesy of CHRYSLER GROUP, LLC

3. Install the fixed stretcher (1b) bushing (1c) and tighten bolt (1a) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

4. Install the single drive belt stretcher tool 2055100090 (1b) and three bolts (1a) without tightening.

   Courtesy of CHRYSLER GROUP, LLC

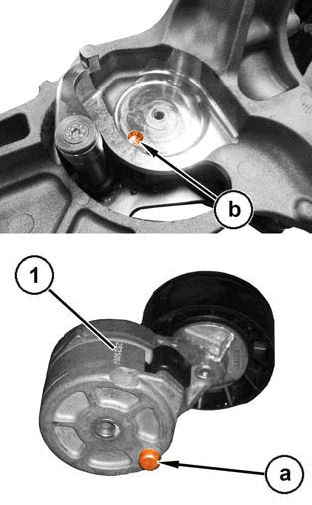

5. Install the single drive belt mobile stretcher and insert pin "a" into hole "b".

   Courtesy of CHRYSLER GROUP, LLC

6. Tighten the fixing bolt (1a) of the drive belt fixed stretcher (1b) tool to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

7. Position the charge air water cooler bracket (1b) in its housing and tighten the two upper bolts (1a) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

8. Tighten the four lower bolts (1) securing the charge air water cooler bracket to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

9. Tighten the fixing bolts (1a) of the single drive belt stretcher tool (1b).

   Courtesy of CHRYSLER GROUP, LLC

10. Install the generator wire harness into the intermediate retainers.

    Courtesy of CHRYSLER GROUP, LLC

11. Install the generator wire harness and securely tighten the two support bracket bolts (1) to the charge air water cooler bracket.
12. Install the generator wire harness into the intermediate retainers.
13. Install the A/C compressor. Refer to COMPRESSOR, A/C, REMOVAL AND INSTALLATION .
14. Install the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .
