Removal Of Engine And Transmission From The Suspension CROSSMEMBER

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

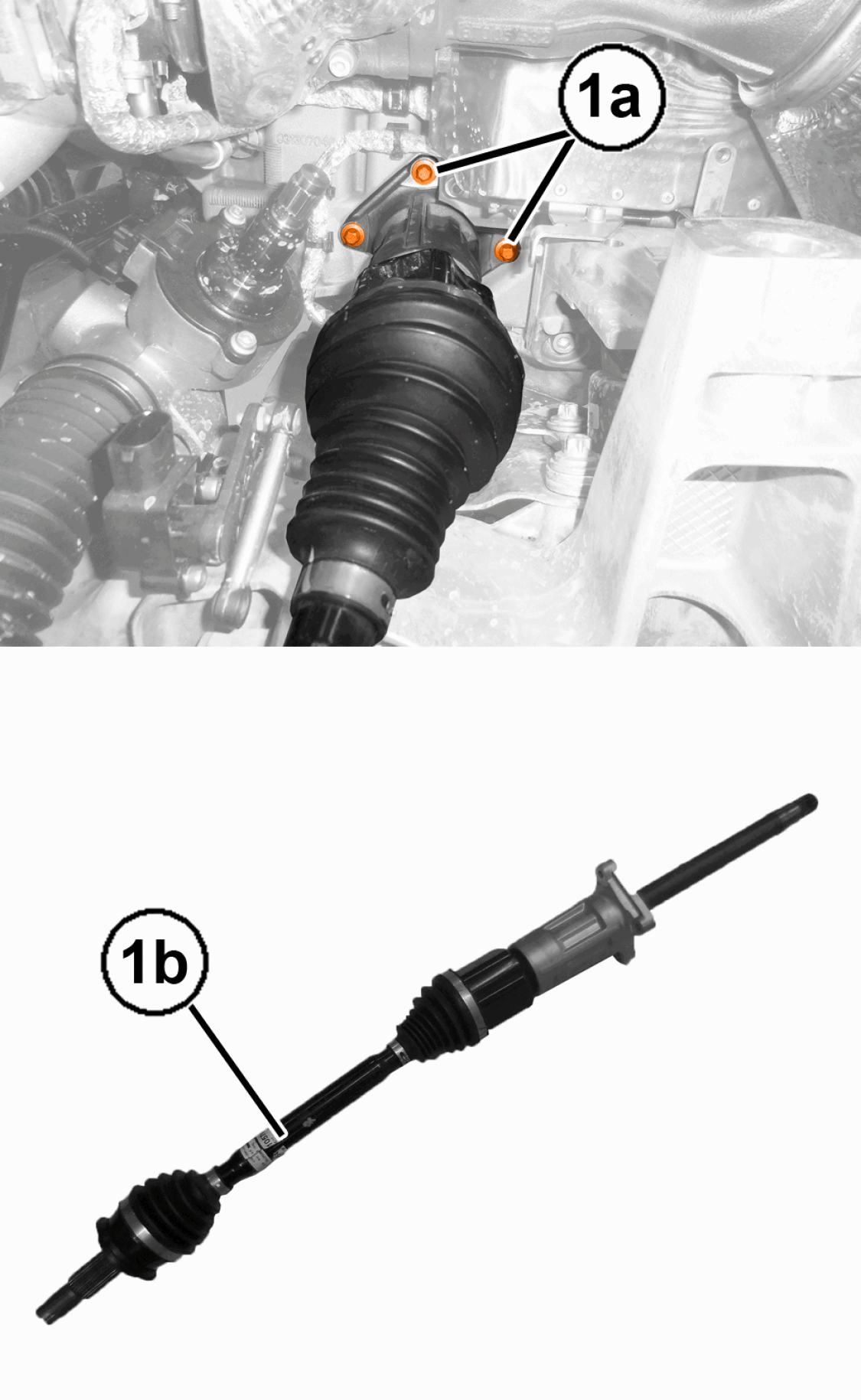

1. Remove the bolts (1a) and remove the left half shaft (1b).

   Courtesy of CHRYSLER GROUP, LLC

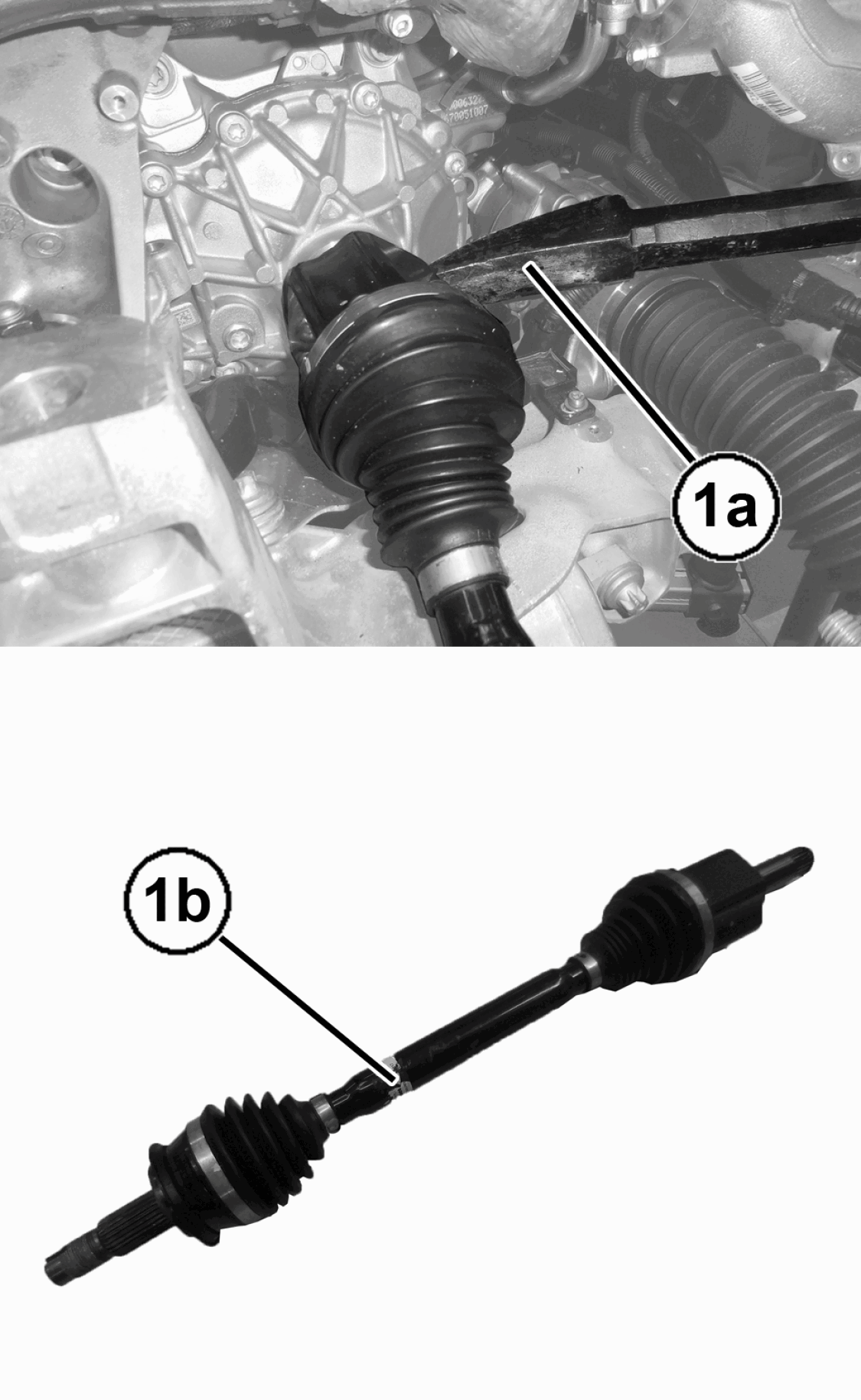

2. With a suitable tool (1a), release the right-hand side half shaft (1b) from the differential then remove it.

   Courtesy of CHRYSLER GROUP, LLC

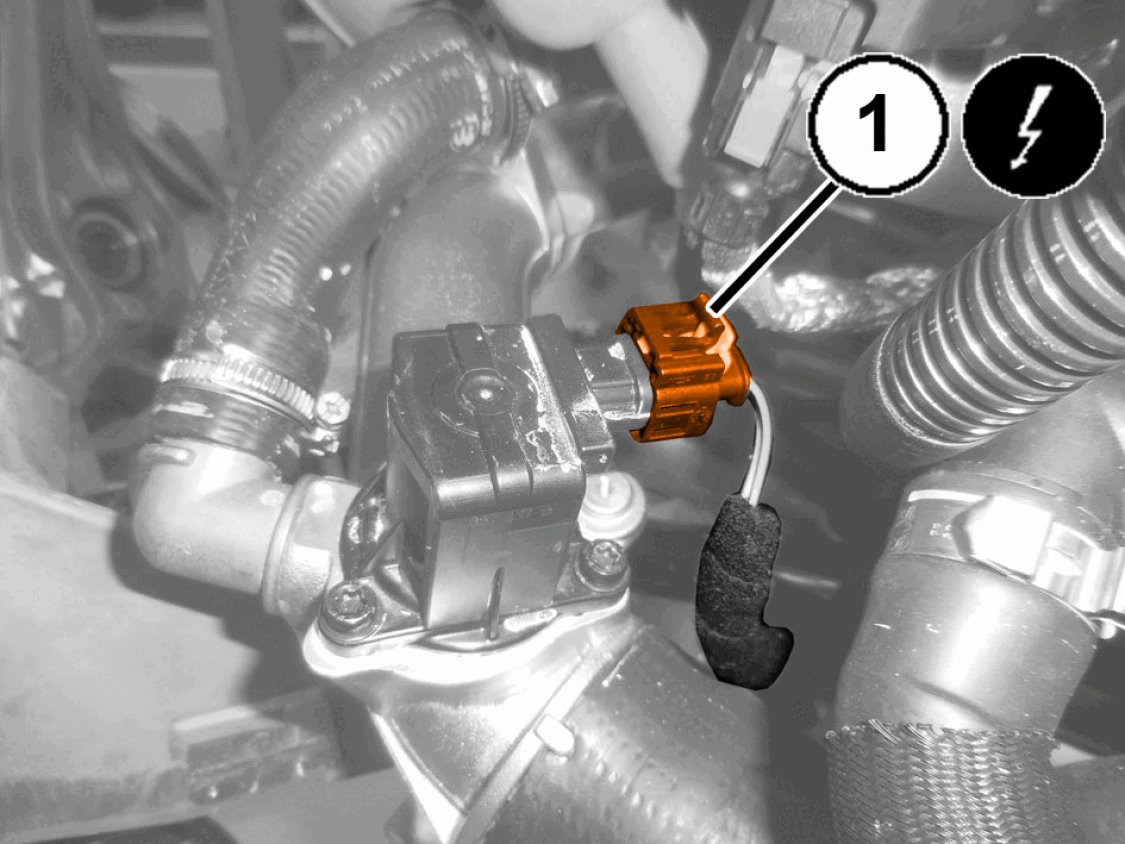

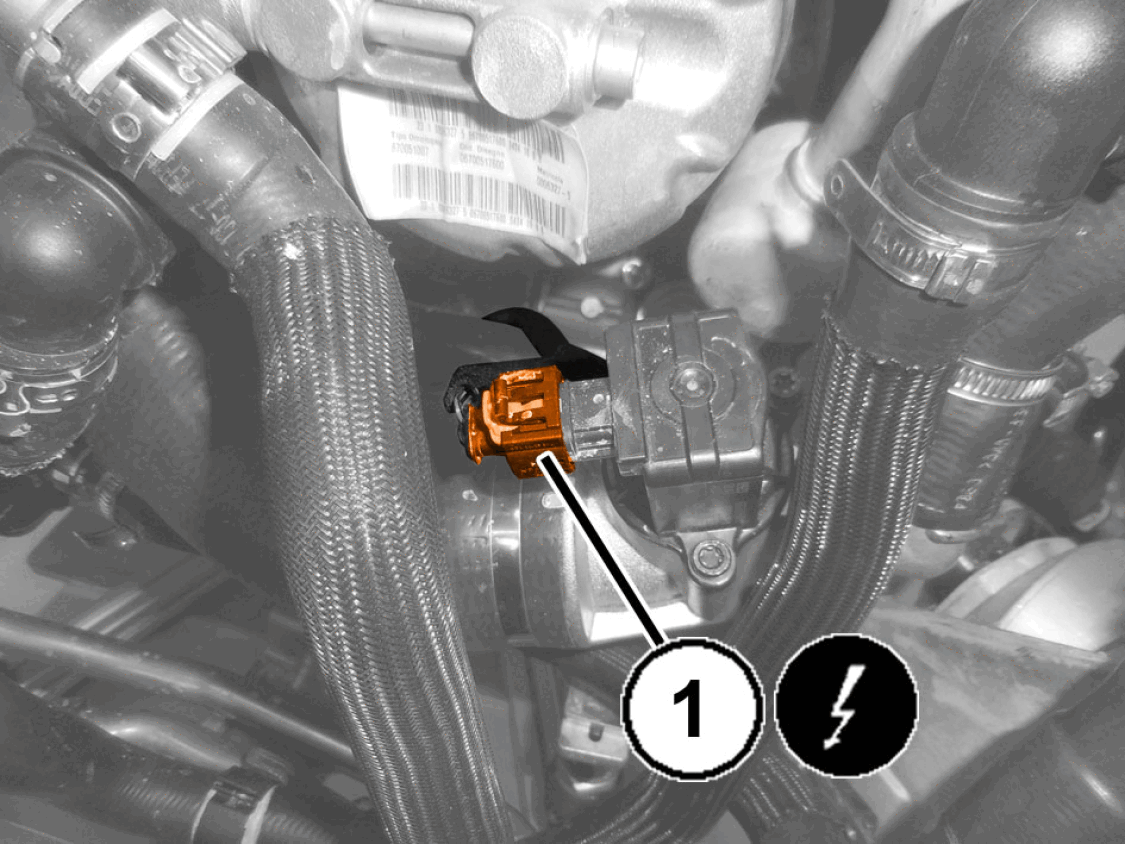

3. Disconnect the wire harness connection (1) for the by-pass solenoid valve, left-hand side.

   Courtesy of CHRYSLER GROUP, LLC

4. Disconnect the wire harness connection (1) for the by-pass solenoid valve, right-hand side.

   Courtesy of CHRYSLER GROUP, LLC

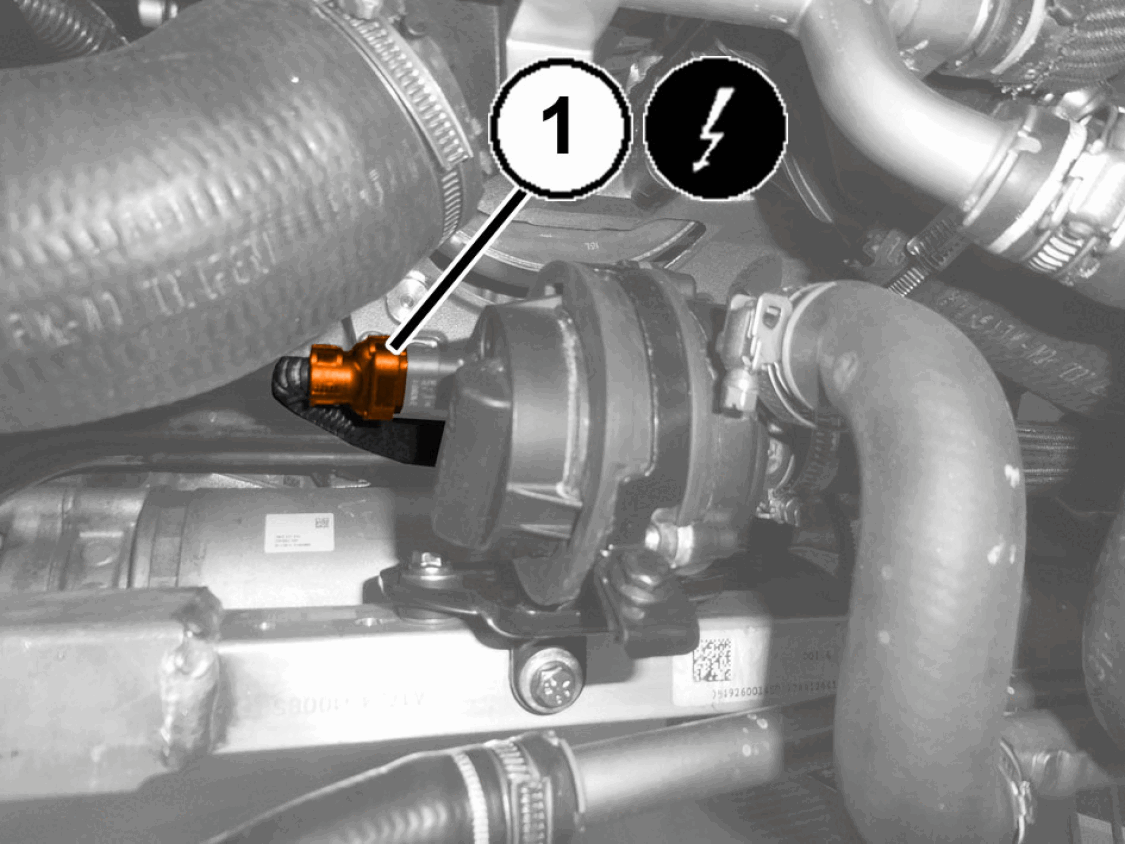

5. Disconnect the wire harness connection (1) of the turbocharger air cooling system coolant pump.

   Courtesy of CHRYSLER GROUP, LLC

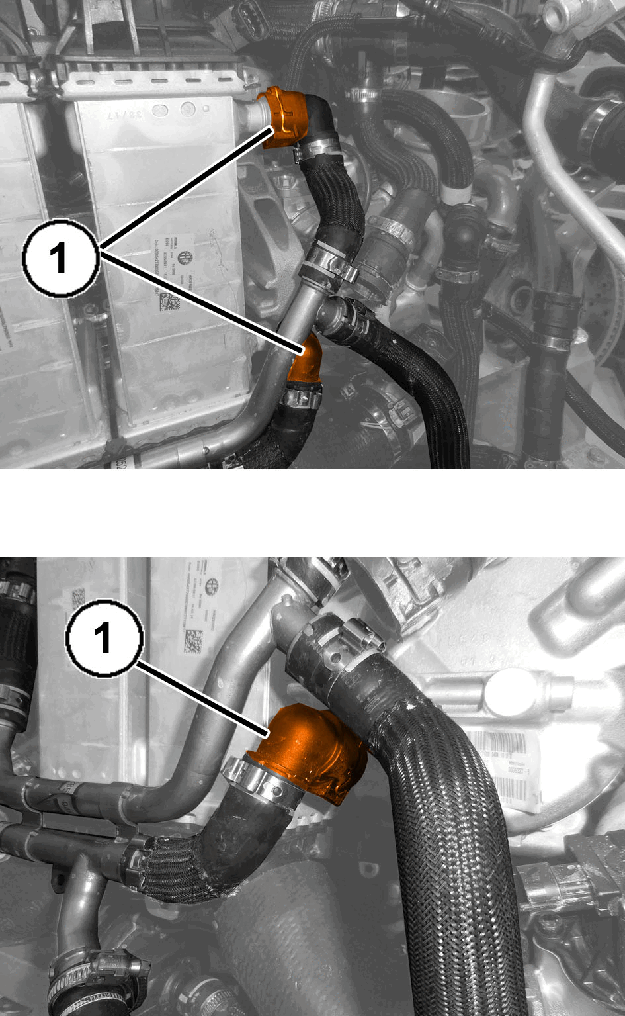

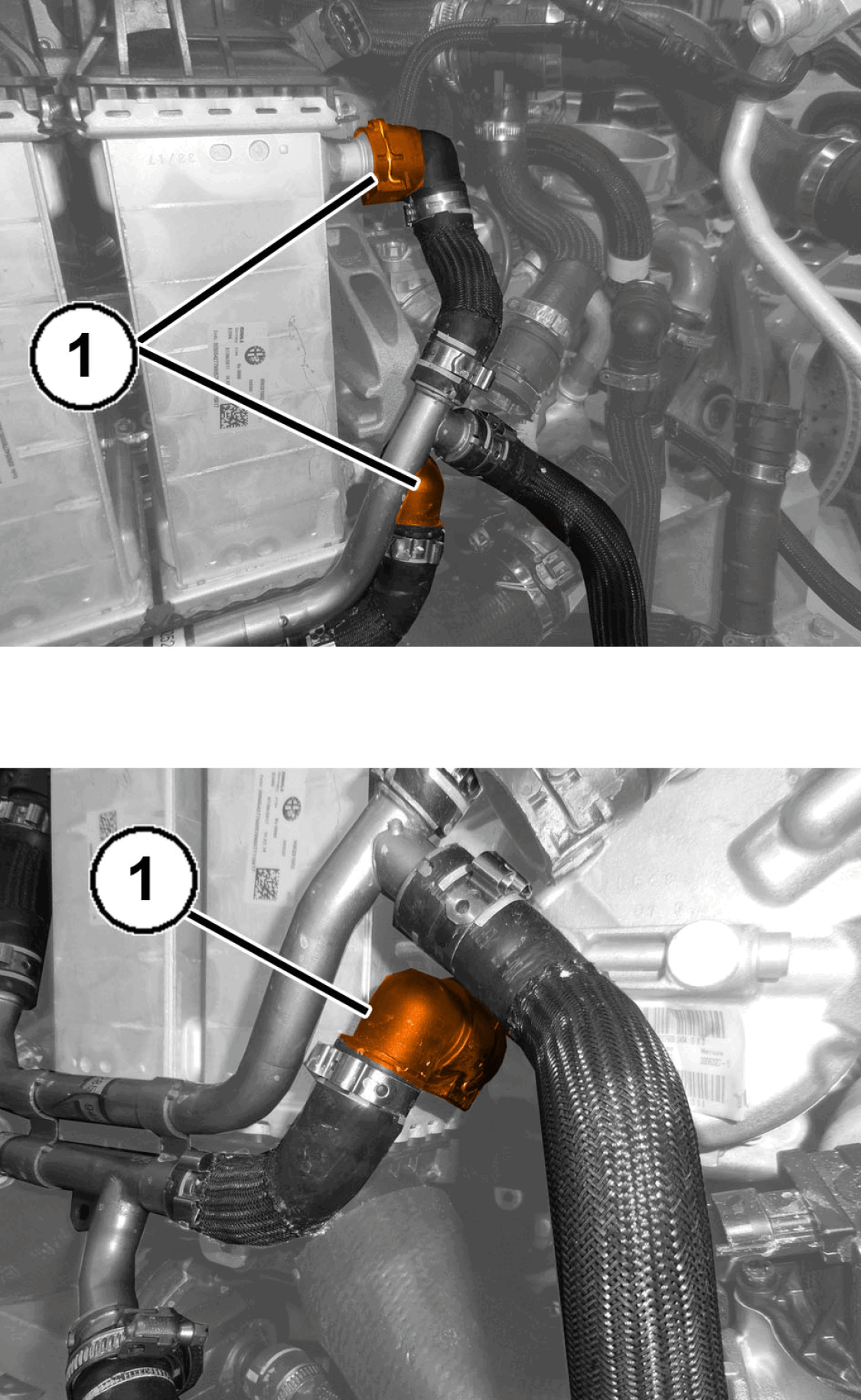

6. Disconnect the quick couplings (1) of the coolant inlet and outlet pipes of the turbocharger air-water heat exchanger.

   Courtesy of CHRYSLER GROUP, LLC

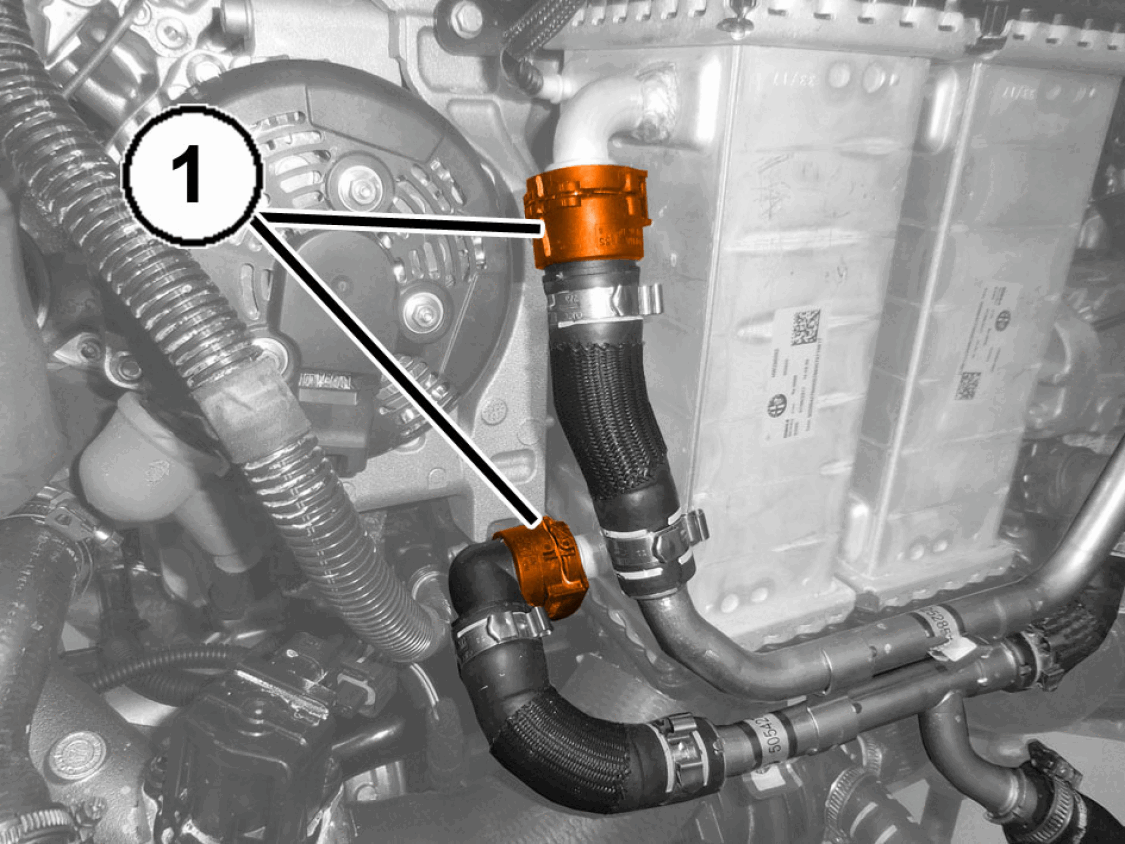

7. Disconnect the quick couplings (1) of the coolant inlet and outlet pipes of the turbocharger air-water heat exchanger.

   Courtesy of CHRYSLER GROUP, LLC

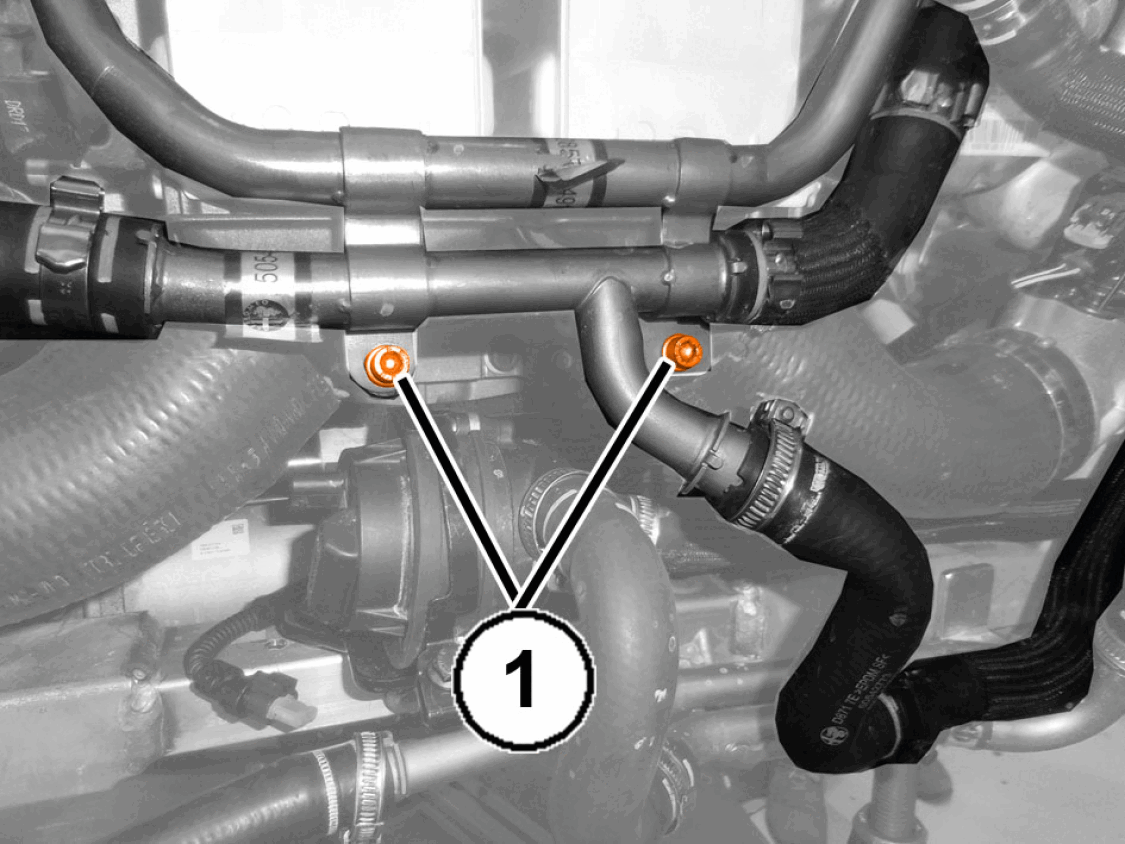

8. Remove the bolts (1) of the mounting brackets of the coolant inlet and outlet pipes of the supercharger air-water heat exchanger.

   Courtesy of CHRYSLER GROUP, LLC

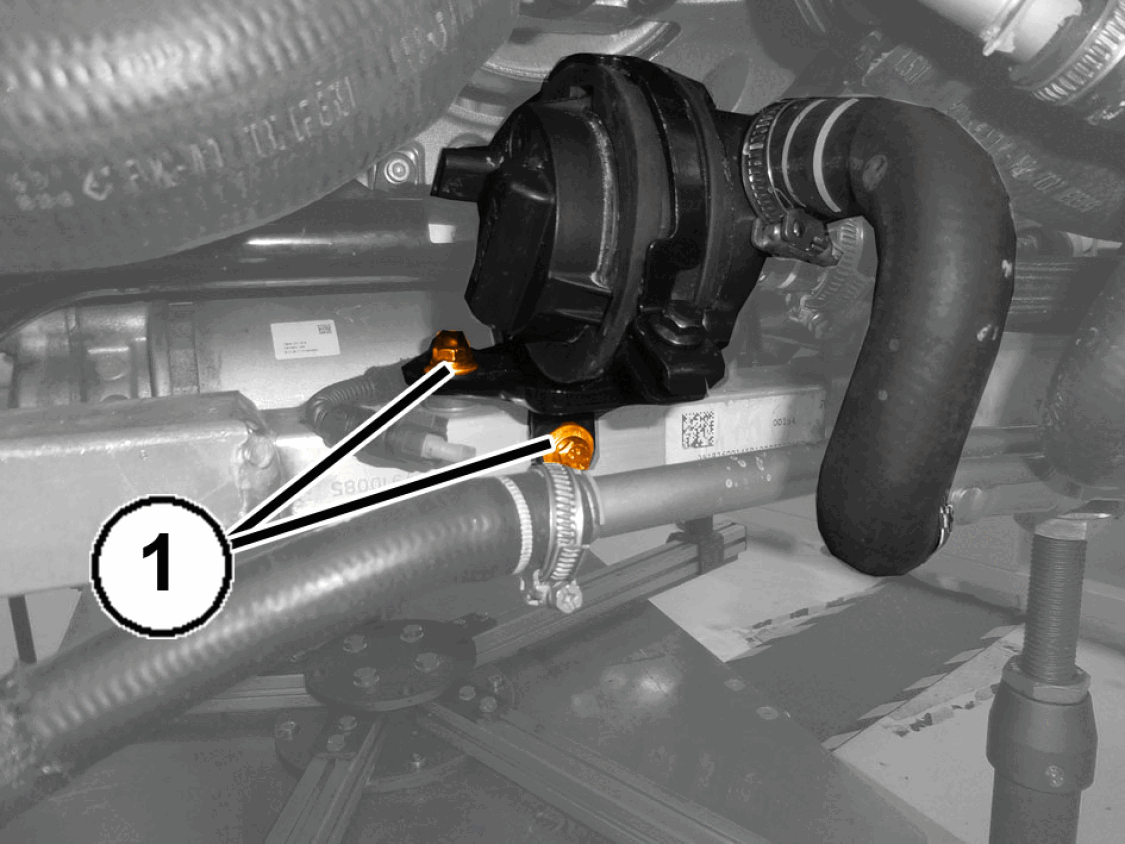

9. Remove the bolts (1) of the bracket securing the turbocharger air cooling system coolant pump to the front suspension crossmember.

   Courtesy of CHRYSLER GROUP, LLC

10. Remove the bolt (1a) and remove the supercharger coolant pipes (1b) together with the coolant pump.

    Courtesy of CHRYSLER GROUP, LLC

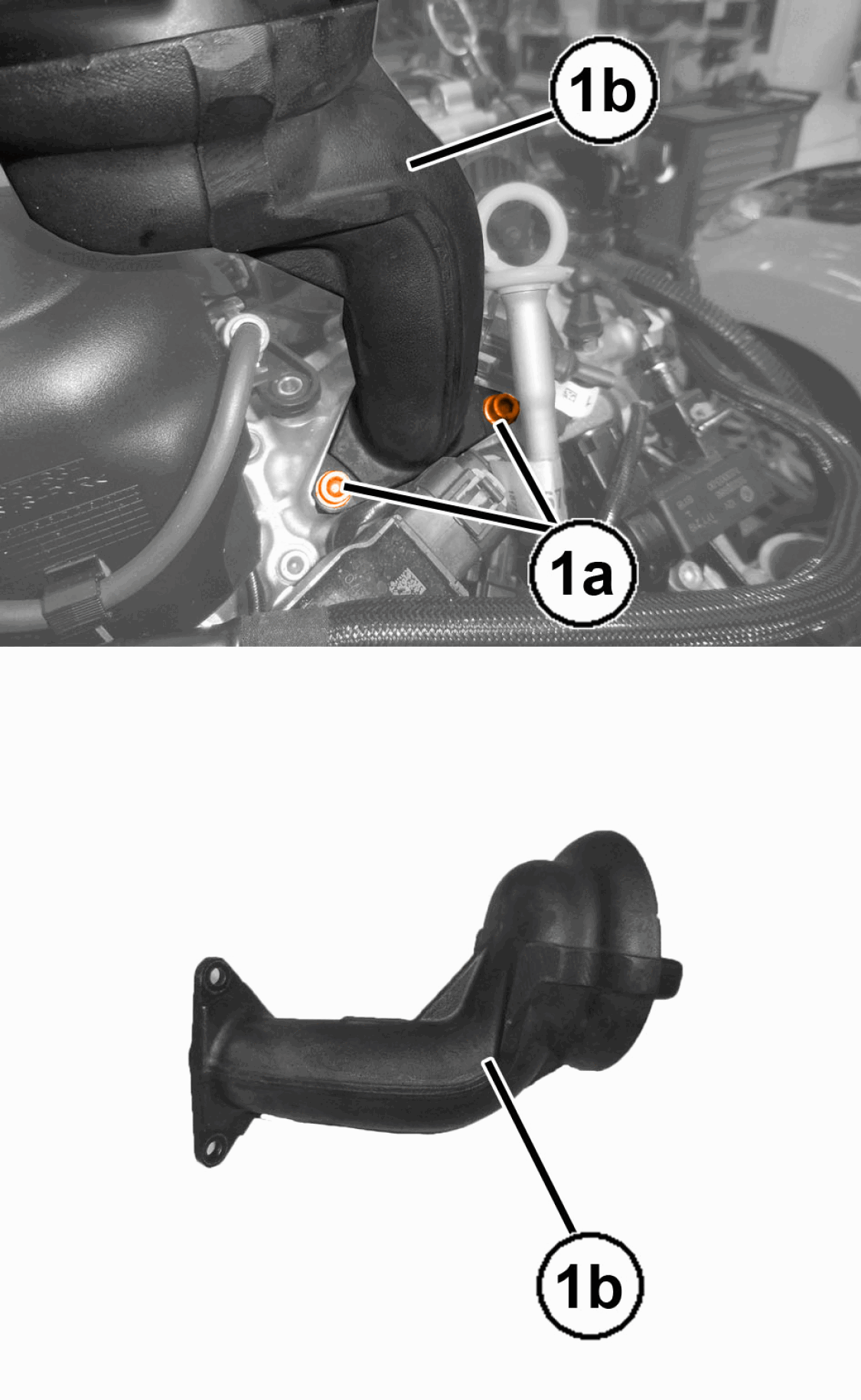

11. Remove the bolts (1a) and remove the oil inlet pipe (1b).

    Courtesy of CHRYSLER GROUP, LLC

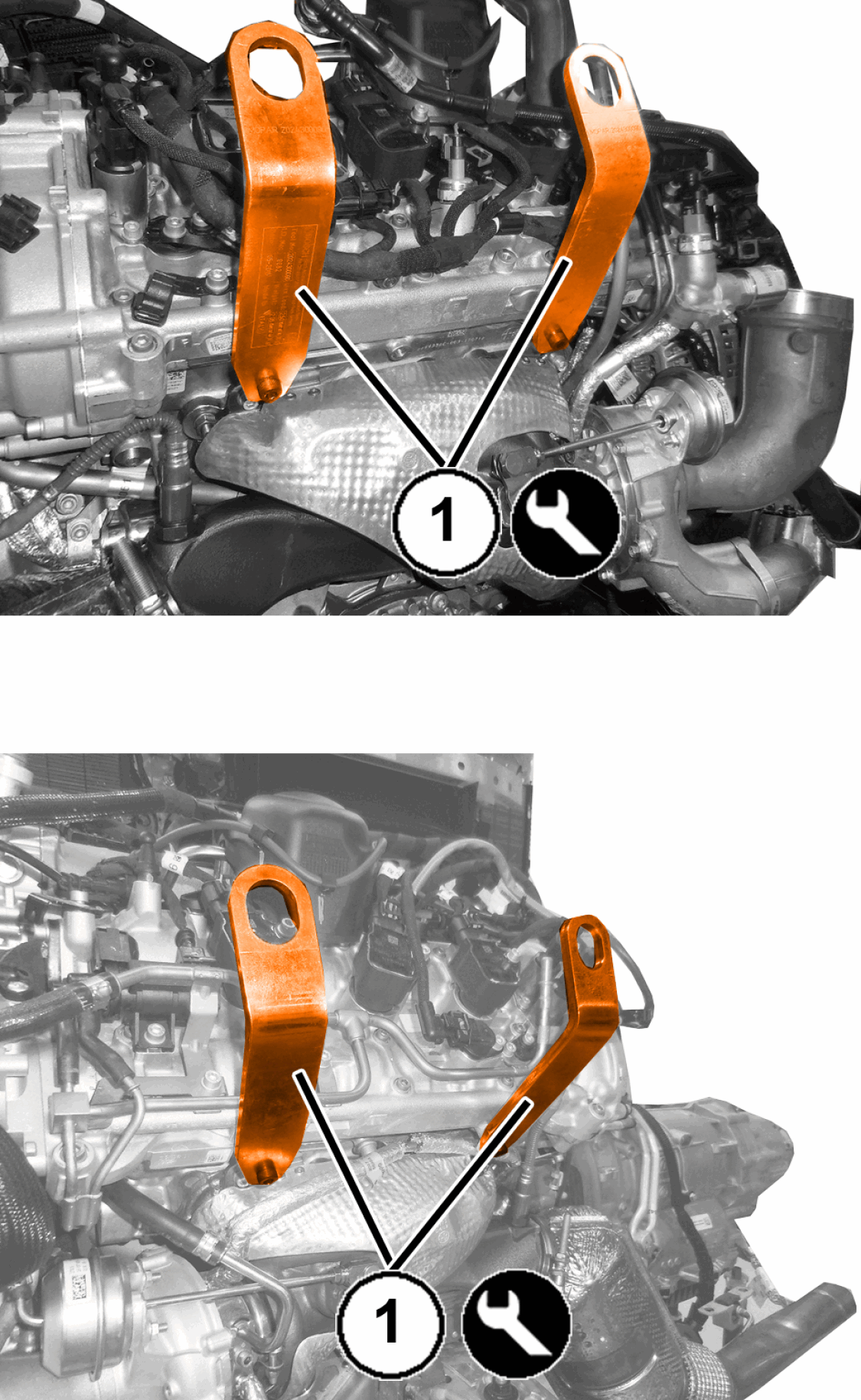

12. Install the (special tool #2024300090, Brackets, Engine Lifting) (1) on the left and right cylinder head.

    Courtesy of CHRYSLER GROUP, LLC

13. Support the powertrain with a suitable hydraulic lift (1).

    Courtesy of CHRYSLER GROUP, LLC

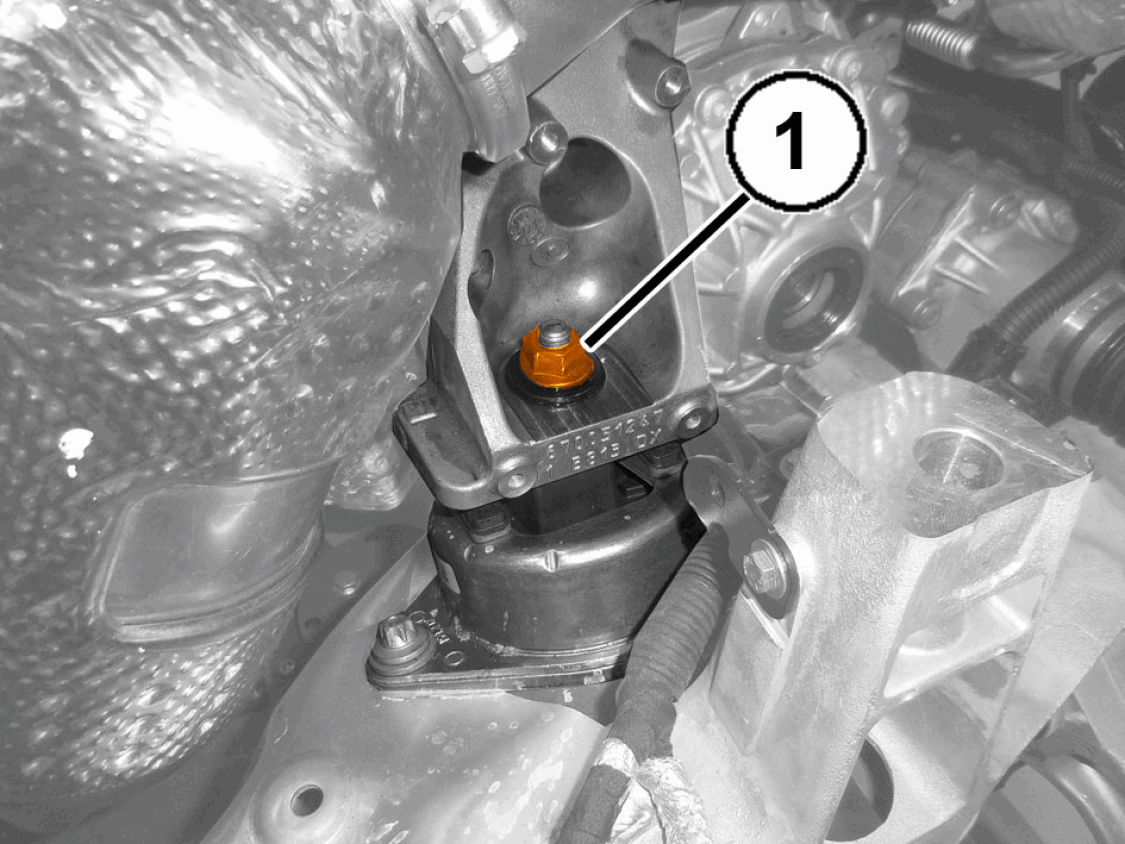

14. Remove the right engine mount nut (1).
15. Carry out the same steps for the left side.

    Courtesy of CHRYSLER GROUP, LLC

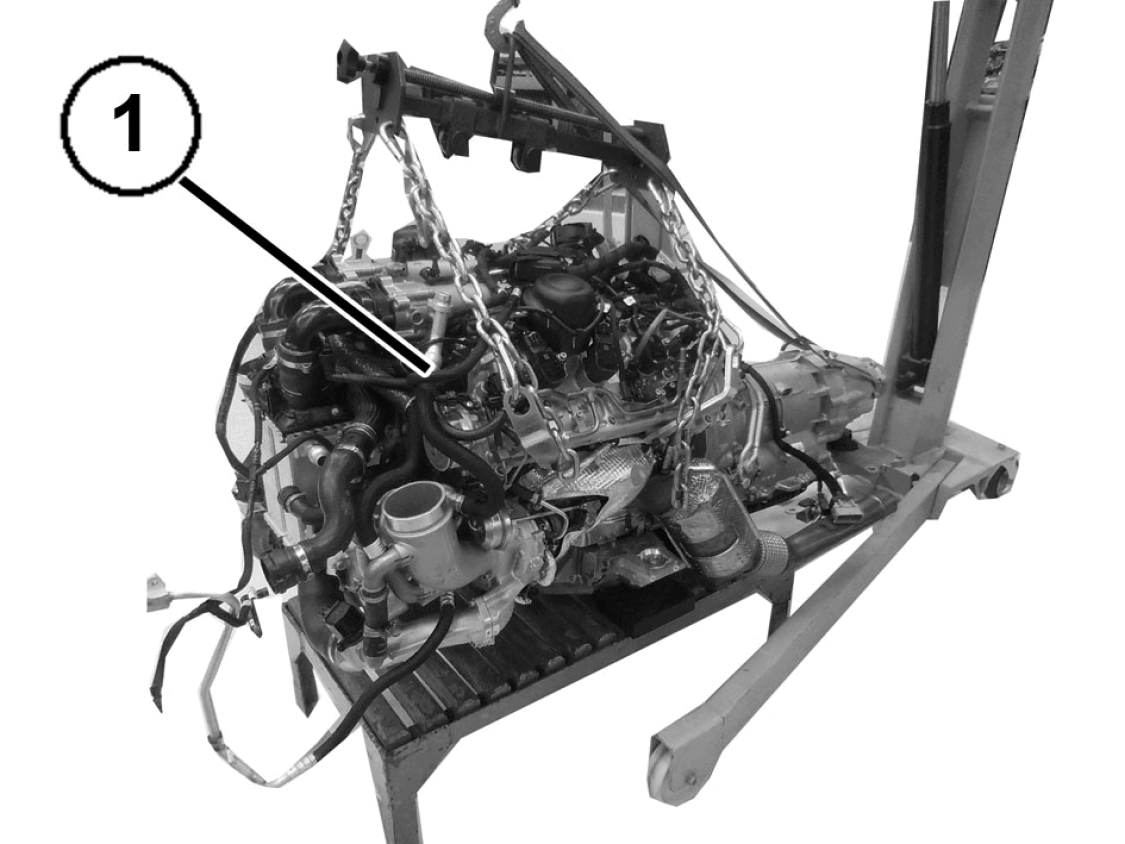

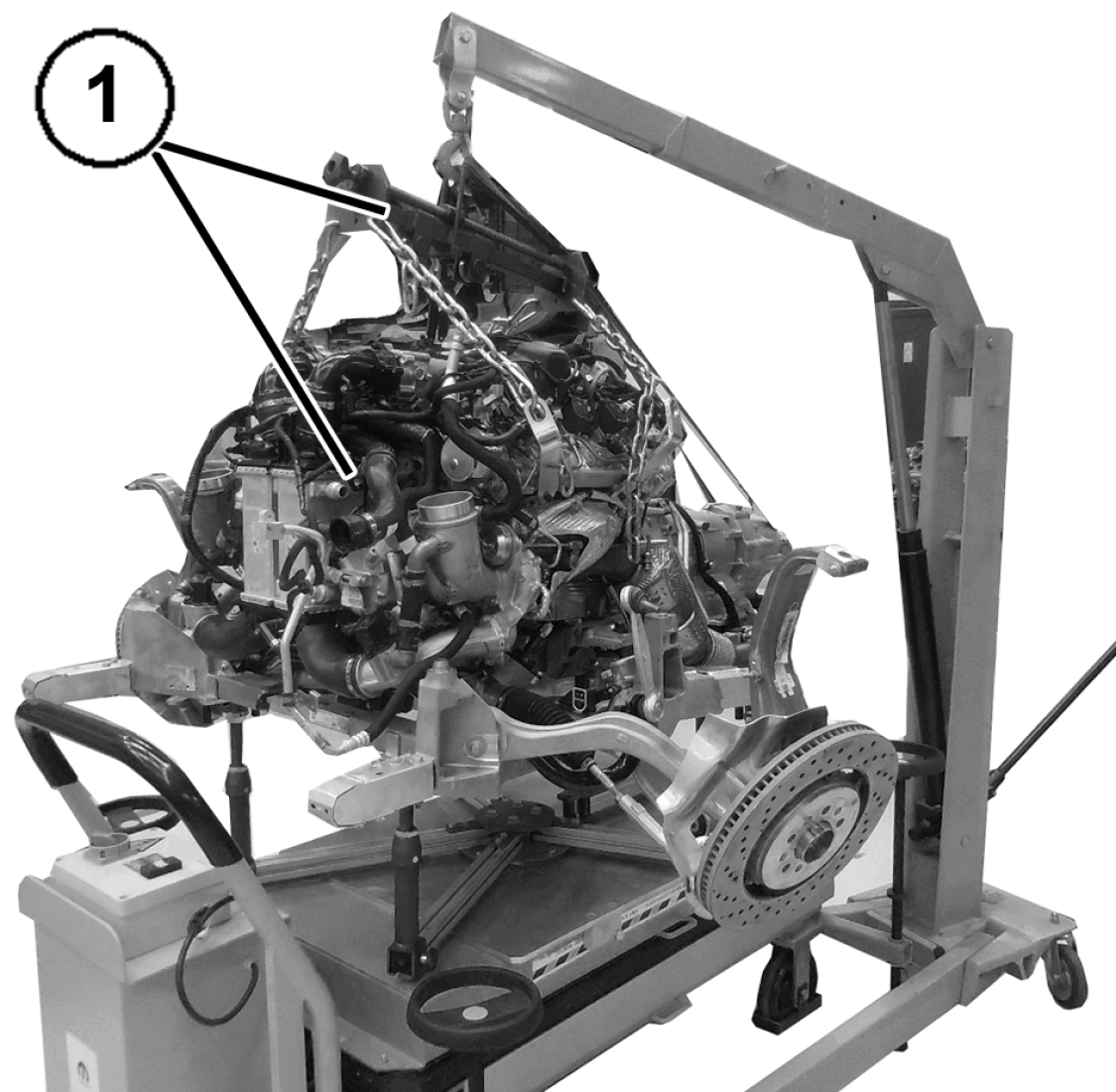

16. Lift the powertrain (1) to disengage it from the suspension crossmember and place it on a suitable support.
17. Remove the tools used for lifting the power unit.

INSTALLATION

1. Using the tools used for removing, lift the power unit and position it on the suspension crossmember taking care to engage the engine mounting pins into their respective holes on the engine mount support brackets.

   Courtesy of CHRYSLER GROUP, LLC

2. Tighten the nut (1) securing the engine mount bracket to the right engine mount insulator to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
3. Carry out the same steps for the left side.

   Courtesy of CHRYSLER GROUP, LLC

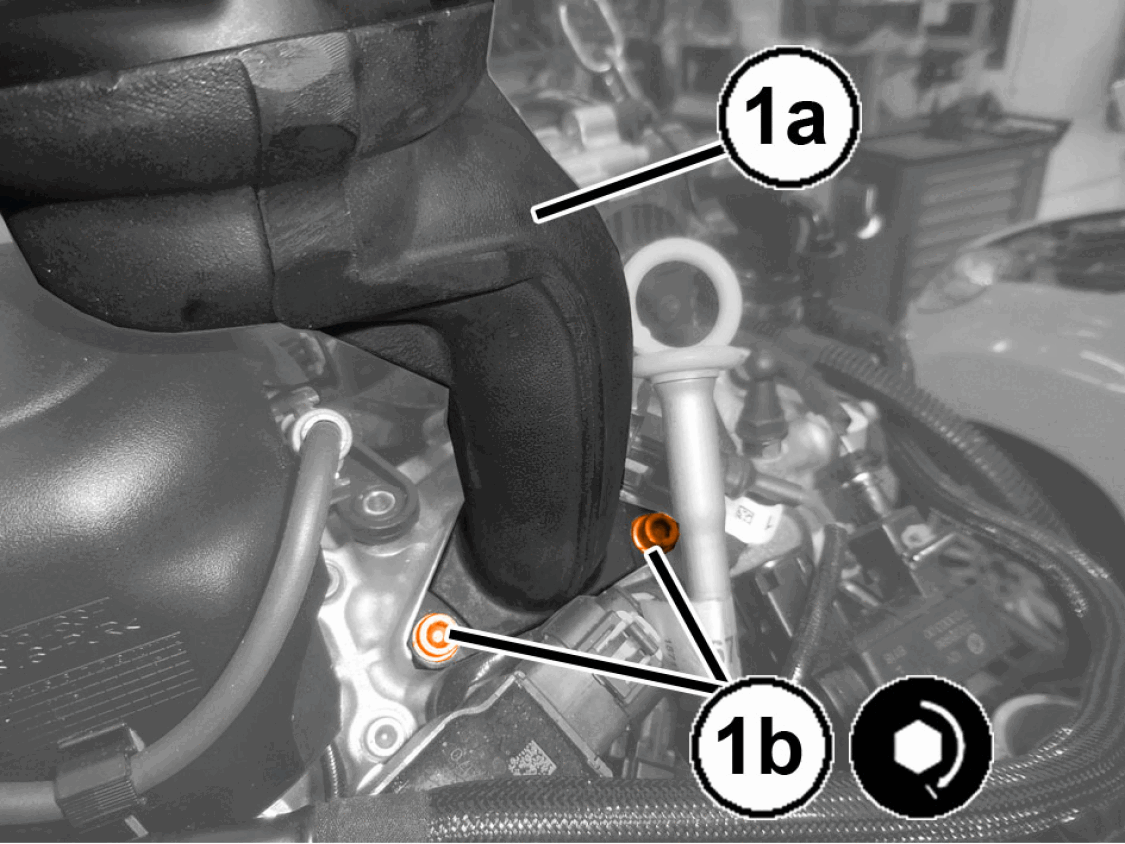

4. Install the oil inlet pipe (1a) and tighten the bolts (1b) to the proper. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

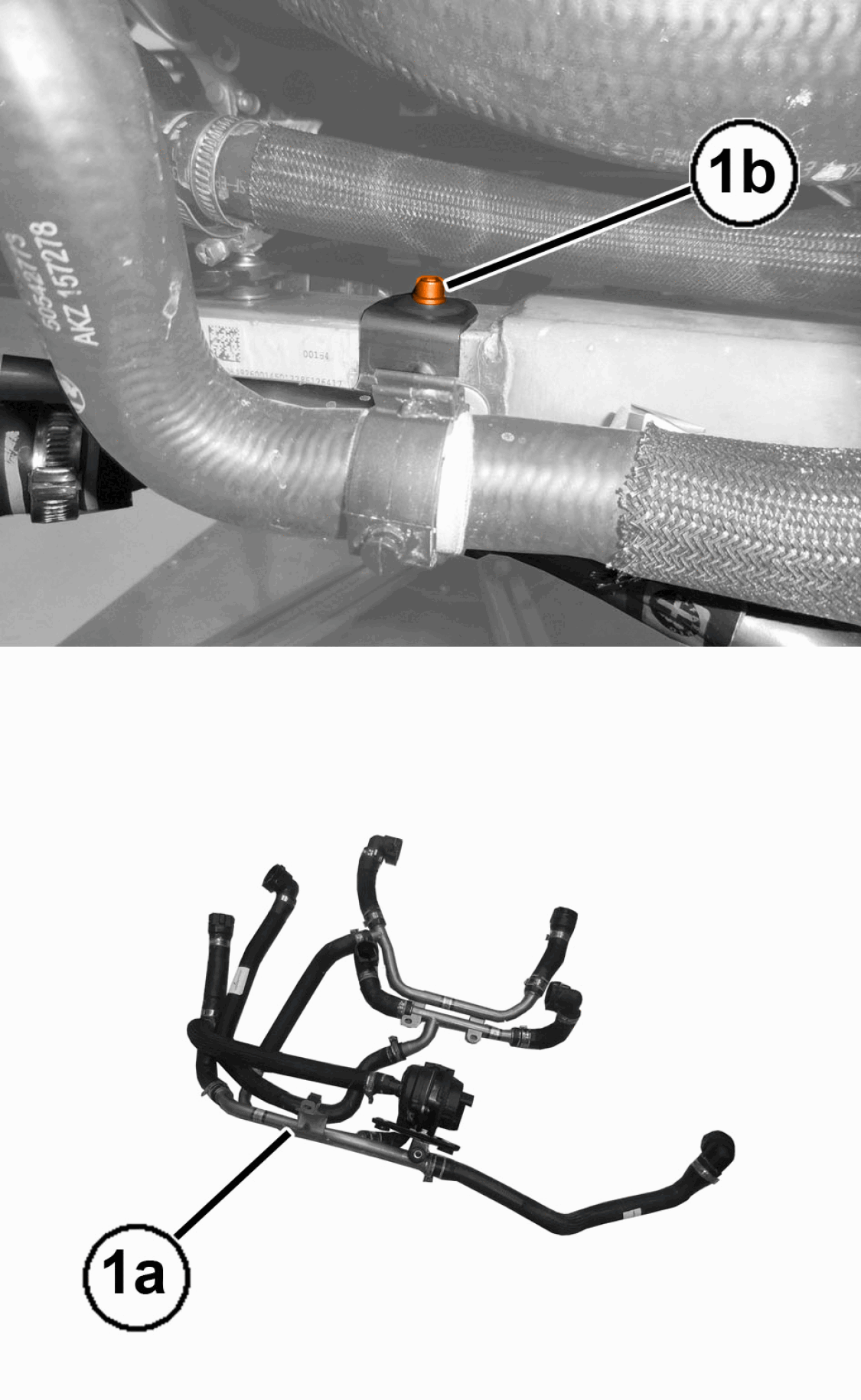

5. Install the turbocharger coolant pipes (1a) together with the coolant pump and securely tighten the bracket bolt (1b).

   Courtesy of CHRYSLER GROUP, LLC

6. Tighten the bracket bolts (1) securing the turbocharger air cooling system coolant pump to the front suspension crossmember.

   Courtesy of CHRYSLER GROUP, LLC

7. Securely tighten the bolts (1) of the mounting brackets of the coolant inlet and outlet pipes of the supercharger air-water heat exchanger.

   Courtesy of CHRYSLER GROUP, LLC

8. Connect the quick couplings (1) of the coolant inlet and outlet pipes of the turbocharger air-water heat exchanger.

   Courtesy of CHRYSLER GROUP, LLC

9. Connect the quick couplings (1) of the coolant inlet and outlet pipes of the turbocharger air-water heat exchanger.

   Courtesy of CHRYSLER GROUP, LLC

10. Connect the wire harness connection (1) of the turbocharger air cooling system coolant pump.

    Courtesy of CHRYSLER GROUP, LLC

11. Connect the wire harness connection (1) for the by-pass solenoid valve, right-hand side

    Courtesy of CHRYSLER GROUP, LLC

12. Connect the wire harness connection (1) for the by-pass solenoid valve, left-hand side.

    Courtesy of CHRYSLER GROUP, LLC

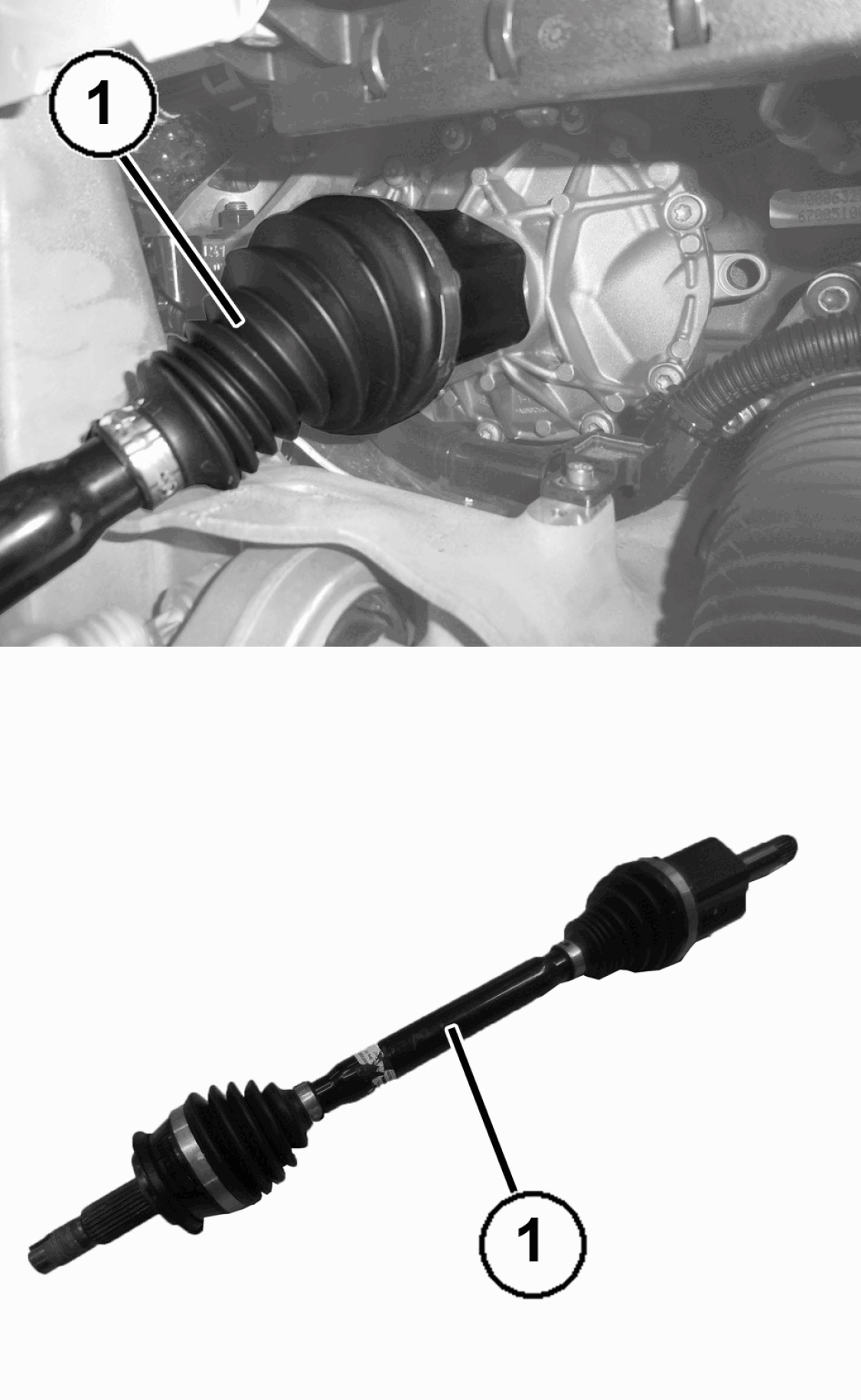

13. Install the front right half shaft (1) and connect it to the front differential.

    Courtesy of CHRYSLER GROUP, LLC

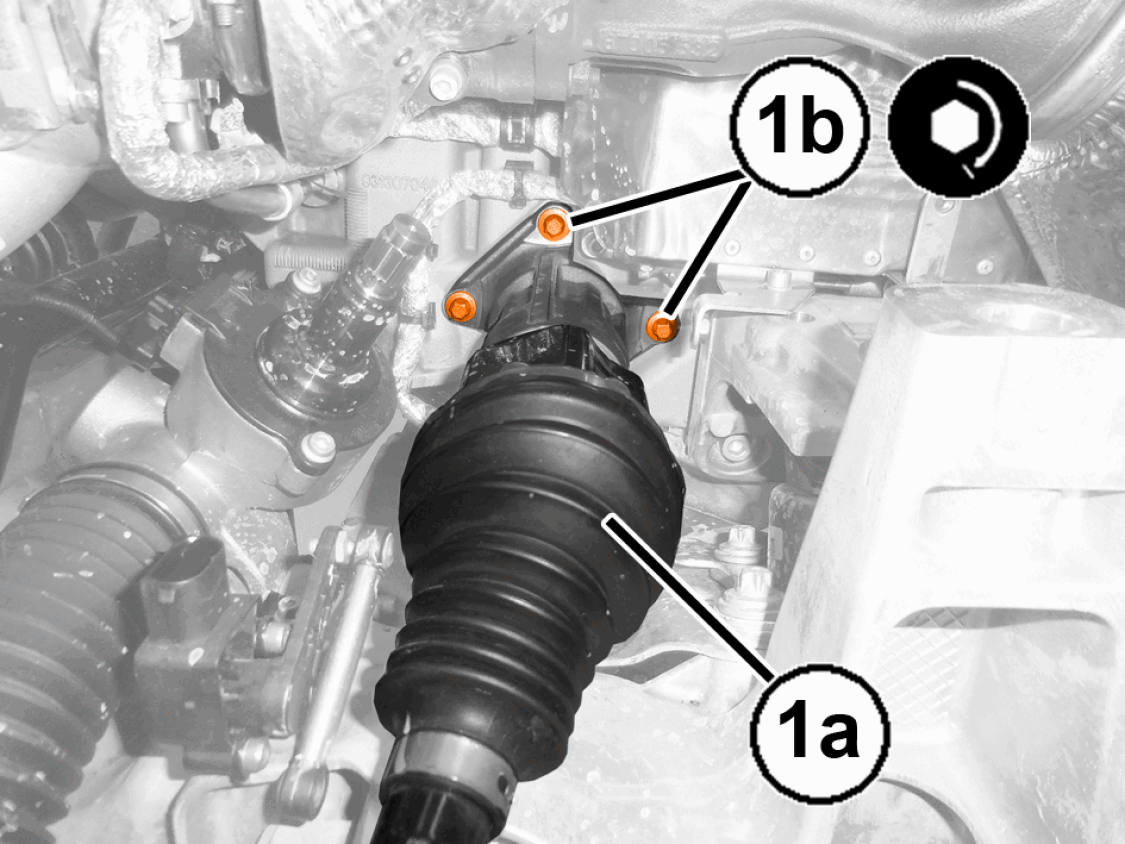

14. Install the left front haft shaft (1a), engaging the aligner bushing, and tighten the bolts (1b) of the bearing mounting to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
15. Remove the tools used for lifting the power unit.
