Deactivation Solenoid Valve Cylinder 1 Exhaust Side

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Disconnect and isolate the negative battery cable.
Remove the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
Remove the left cylinder head ignition coil. Refer to COIL, IGNITION, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

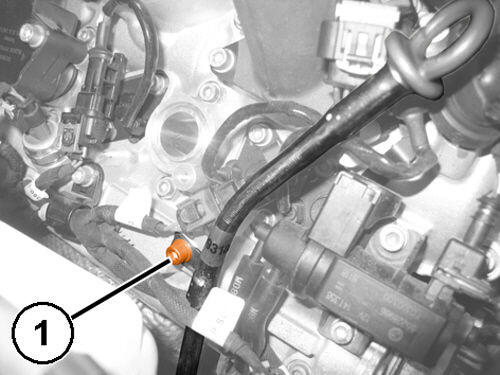

Remove the bolt securing the engine oil dipstick tube.

Courtesy of CHRYSLER GROUP, LLC

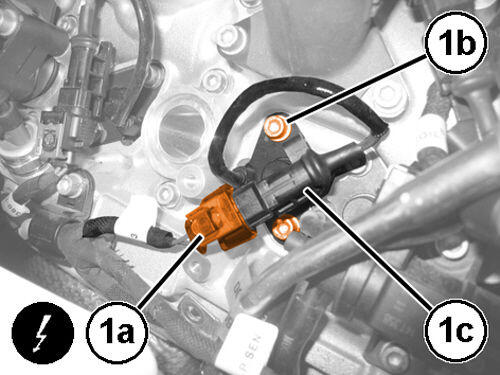

Disconnect the cylinder 1 deactivation solenoid valve wire harness connector (1a), exhaust side. Remove the bolts (1b) and the solenoid valve flange (1c).

Courtesy of CHRYSLER GROUP, LLC

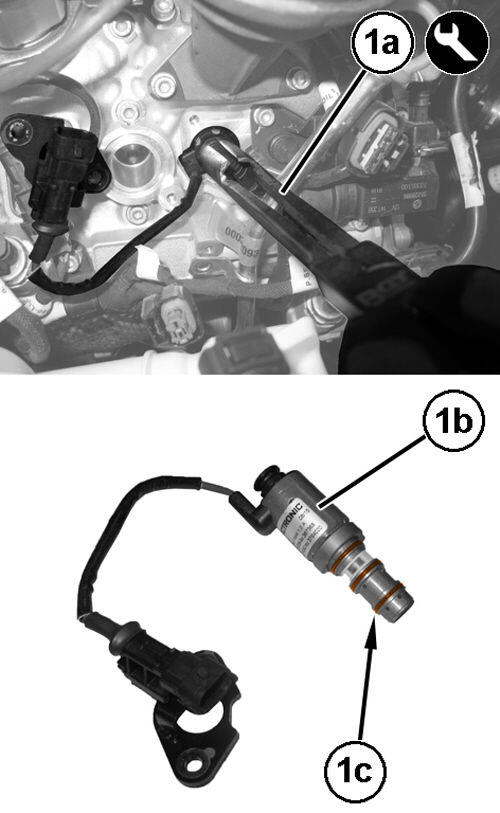

Using a suitable tool (1a), remove the cylinder 1 deactivation solenoid valve, exhaust side (1b), complete with O-rings (1c).

INSTALLATION

Install the cylinder 1 deactivation solenoid valve, exhaust side, back in its housing, complete with O-rings.
Install the solenoid valve flange and securely tighten the bolts.
Connect the cylinder 1 deactivation solenoid valve wire harness connector, exhaust side.
Install the engine oil dipstick tube bolt and securely tighten.
Install the left cylinder head ignition coil. Refer to COIL, IGNITION, REMOVAL AND INSTALLATION .
Install the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
Connect the negative battery cable.
