Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the right exhaust connector heat shield. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION .
    GC0194336Courtesy of CHRYSLER GROUP, LLC

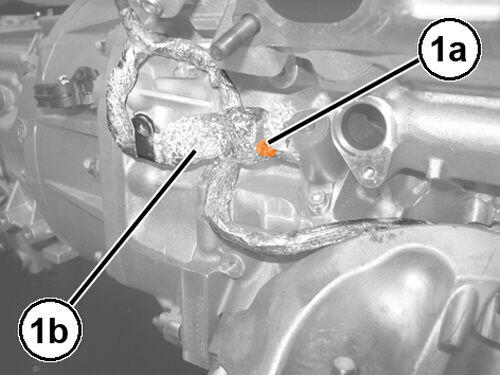

  2. Cut the heat shield (1b) retaining band (1a).
    GC0080328Courtesy of CHRYSLER GROUP, LLC

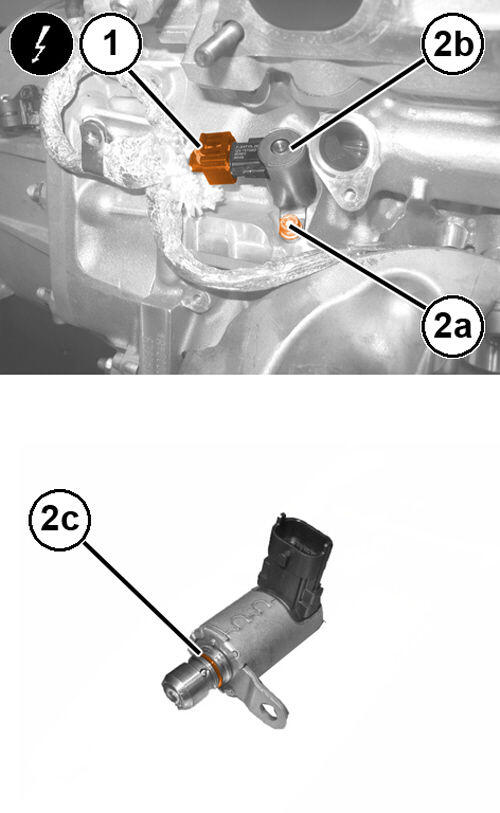

  3. Disconnect the oil pressure regulator wire harness connector (1).
  4. Remove the bolt (2a) and the oil pressure regulator (2b) with O-ring seal (2c).

INSTALLATION

  1. Using a NEW  O-ring, install the oil pressure regulator and securely tighten the bolt.
  2. Connect the oil pressure regulator wire harness connector.
  3. Install a NEW  retaining band on the heat shield.
  4. Install the right exhaust connector heat. Refer to SHIELD, HEAT, REMOVAL AND INSTALLATION .
