Oil Pump Bearing

REMOVAL

1. Remove the oil pump drive chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

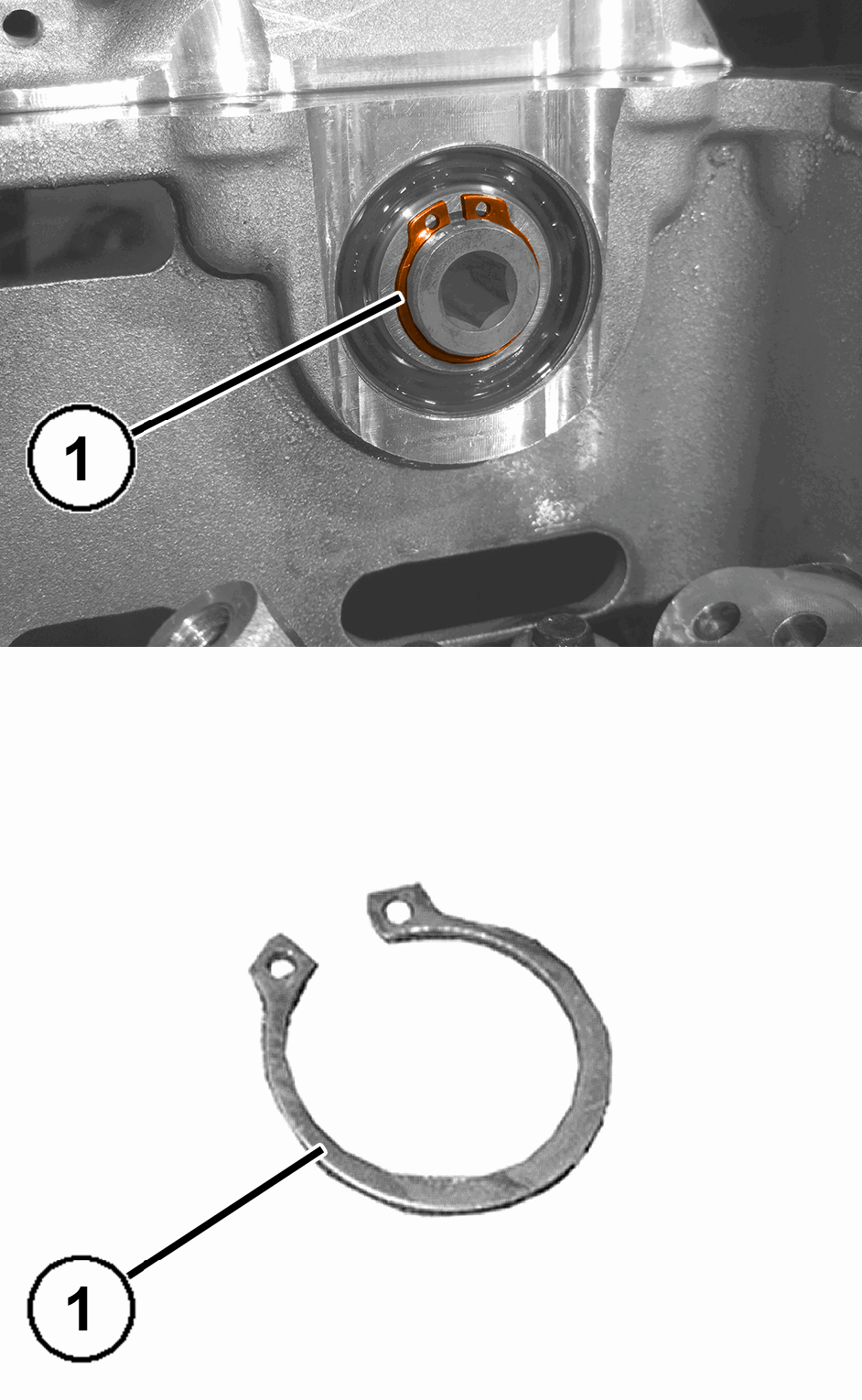

2. Remove the oil pump hub retaining circlip (1).

   Courtesy of CHRYSLER GROUP, LLC

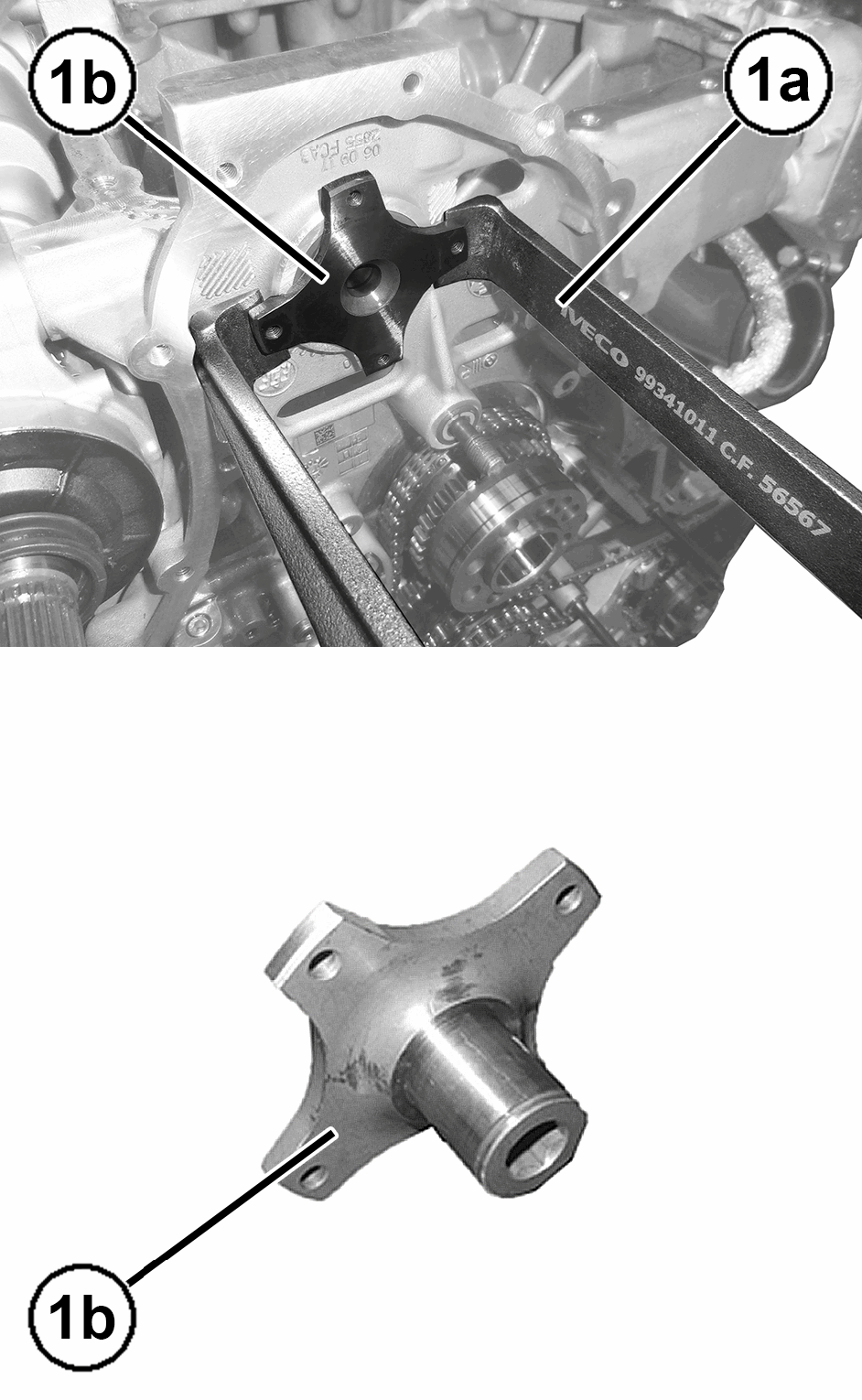

3. Use a suitable puller (1a) to remove the hub from the oil pump (1b).

   Courtesy of CHRYSLER GROUP, LLC

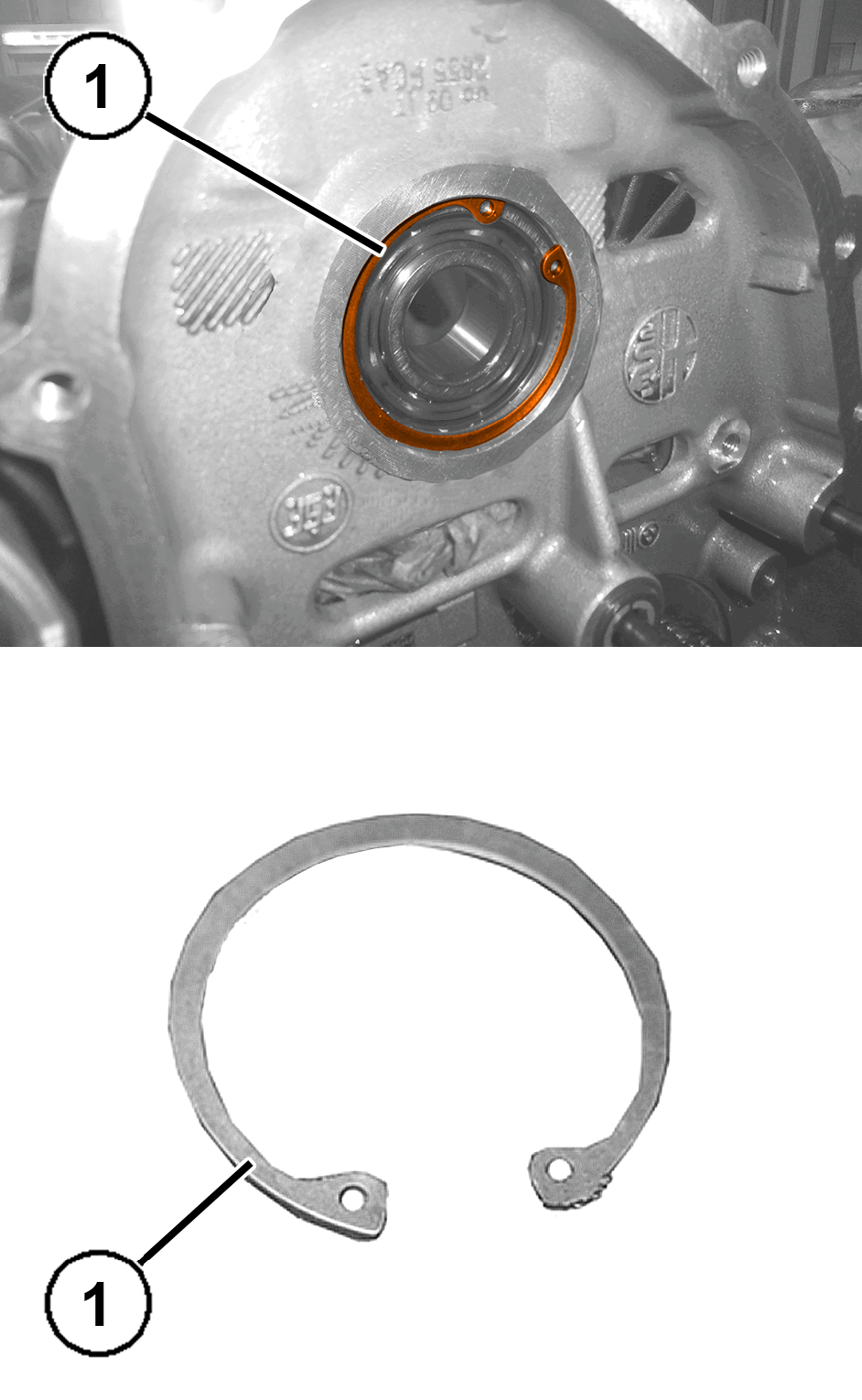

4. Remove the oil pump bearing retaining circlip (1).

   Courtesy of CHRYSLER GROUP, LLC

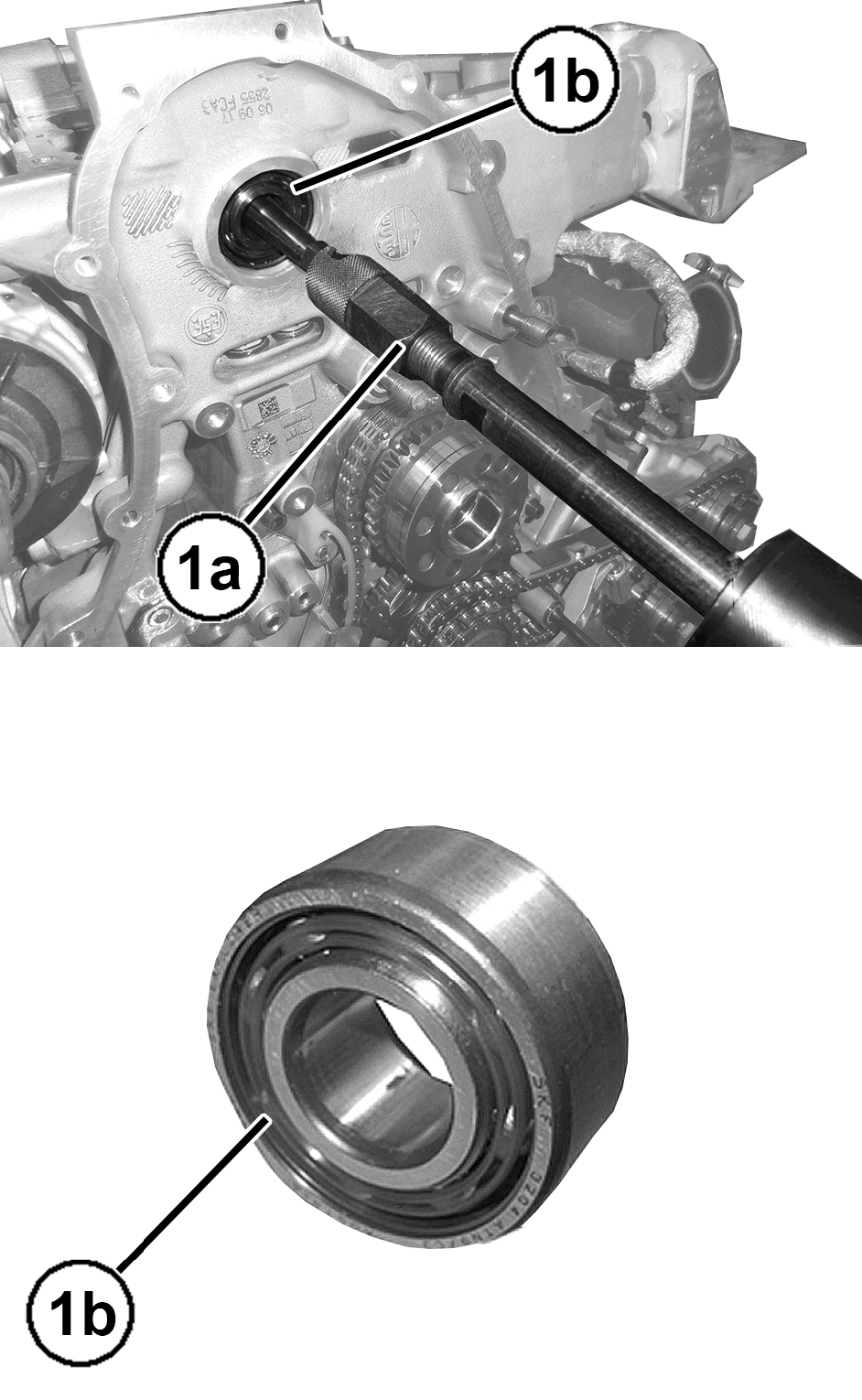

5. Using a suitable extractor (1a), remove the bearing from the oil pump (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

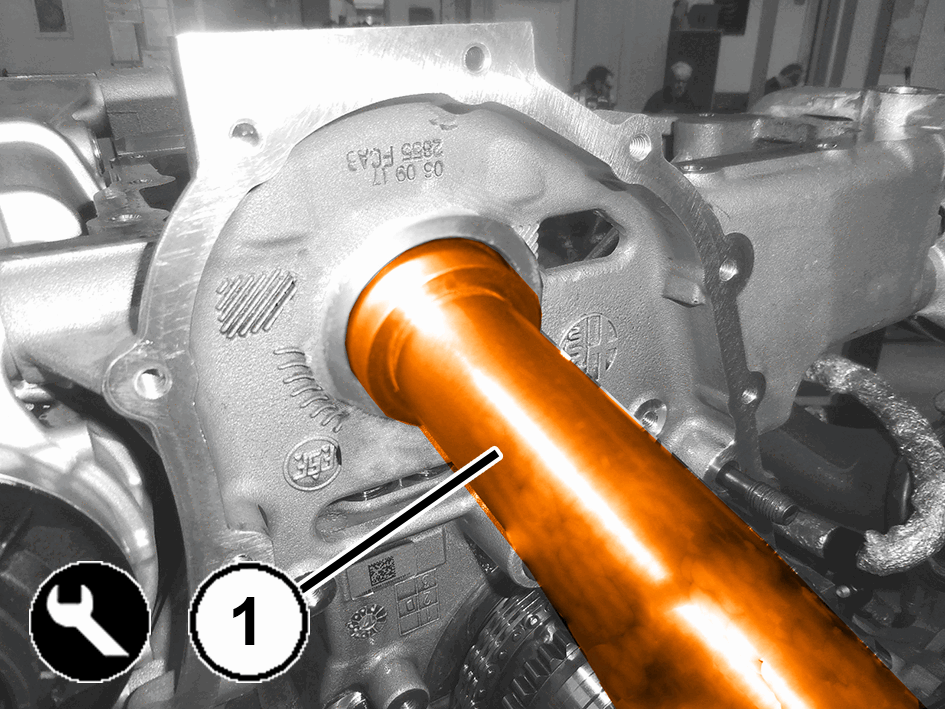

1. Use a bearing driver (1) to insert the oil pump bearing.

   Courtesy of CHRYSLER GROUP, LLC

2. Install the retaining circlip (1) for the oil pump bearing.

   Courtesy of CHRYSLER GROUP, LLC

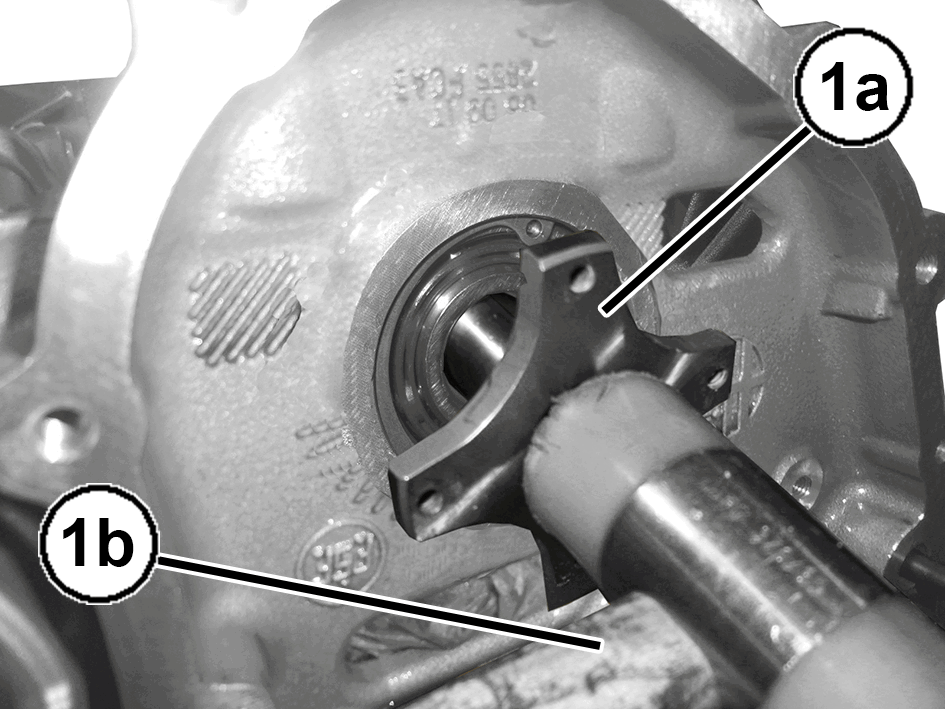

3. Install the oil pump hub (1a) using a suitable hammer (1b).

   Courtesy of CHRYSLER GROUP, LLC

4. Install the retaining circlip for the oil pump hub.
5. Install the oil pump drive chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .
