Engine Oil Pump

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the engine timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

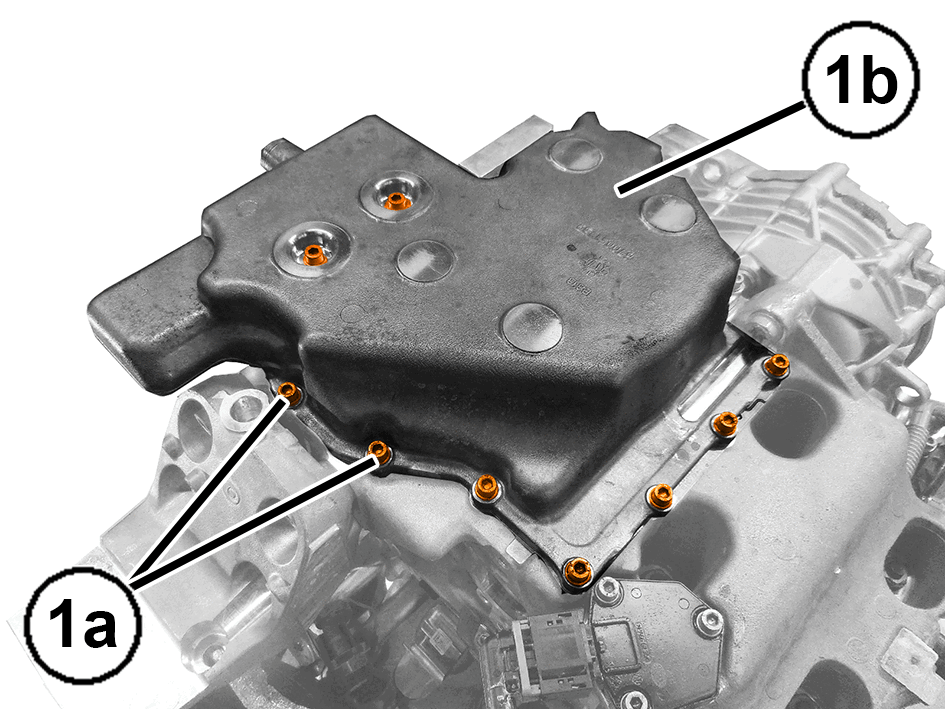

3. Remove the bolts (1a) and the oil pan (1b).

   Courtesy of CHRYSLER GROUP, LLC

4. Remove the oil pan gasket (1).

   Courtesy of CHRYSLER GROUP, LLC

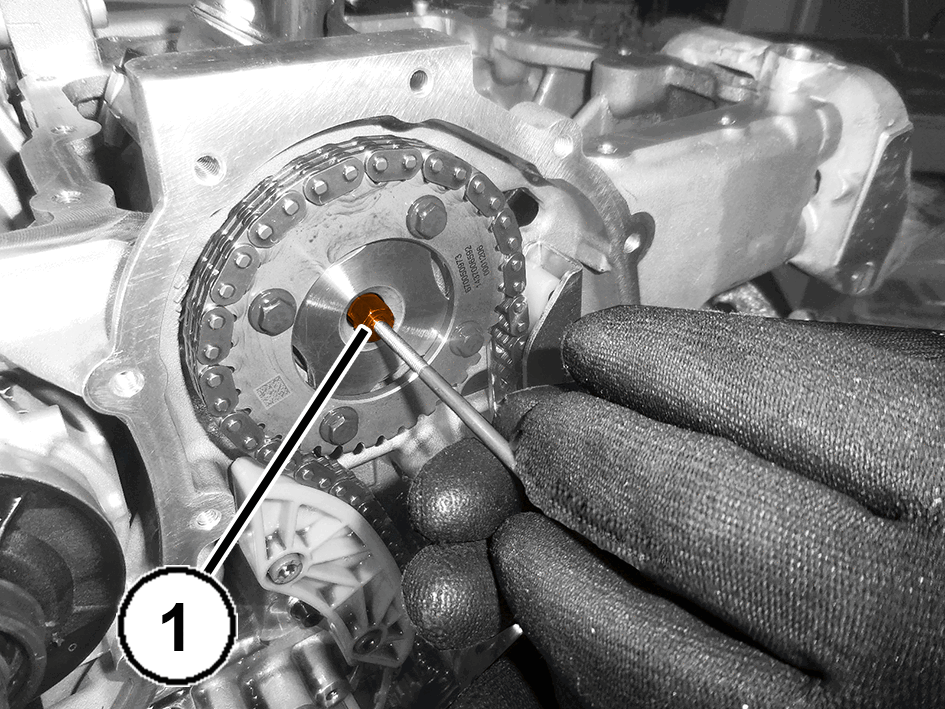

5. Remove the engine oil pump drive shaft snap ring (1).

   Courtesy of CHRYSLER GROUP, LLC

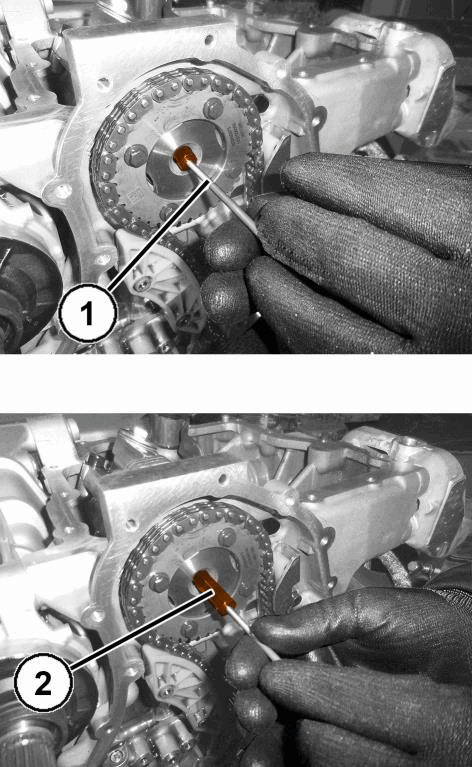

6. Install a suitable bolt in the engine oil pump drive shaft threaded hole (1).
7. Remove the engine oil pump drive shaft (2).

   Courtesy of CHRYSLER GROUP, LLC

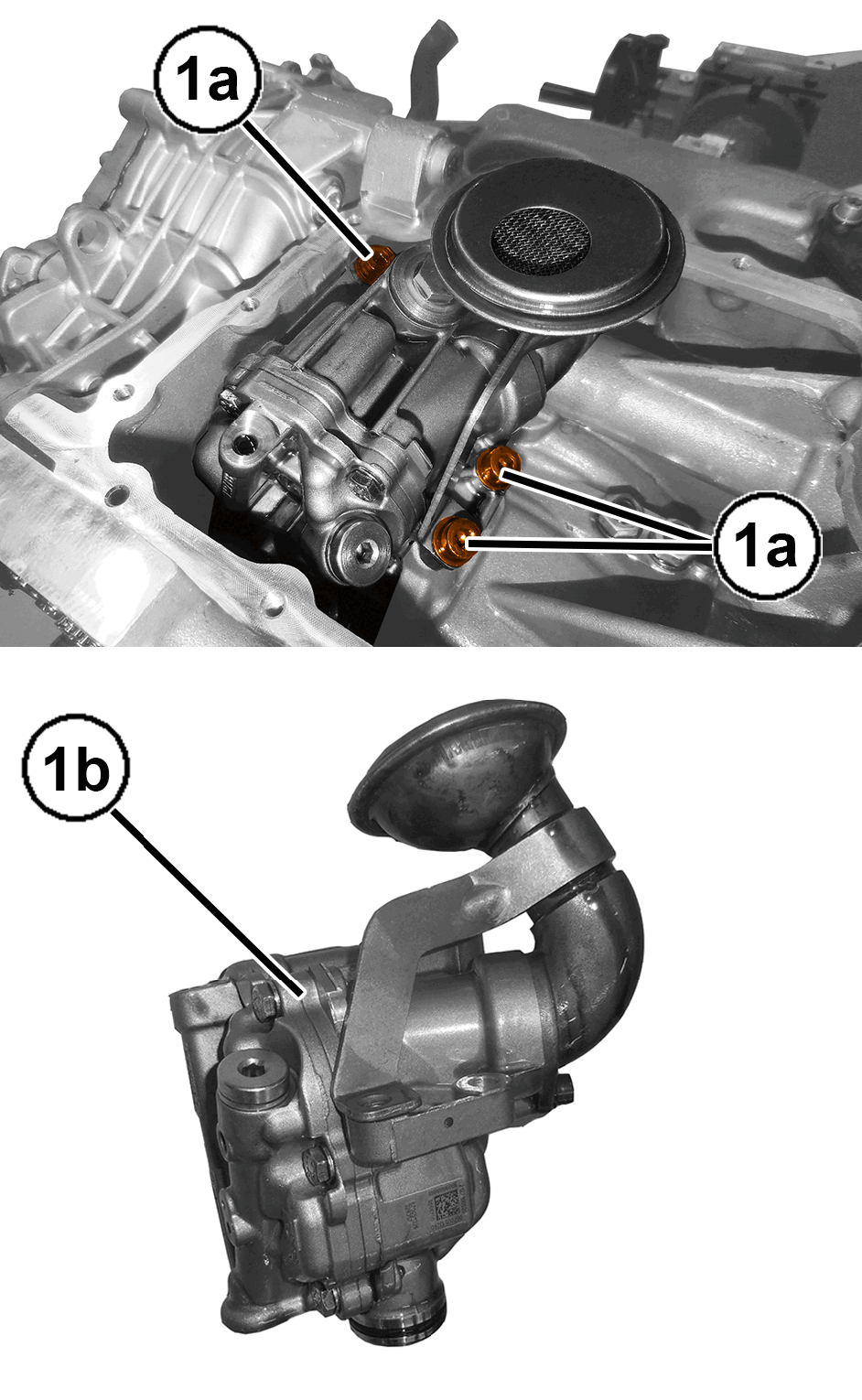

8. Remove the bolts (1a) and the engine oil pump (1b).

   Courtesy of CHRYSLER GROUP, LLC

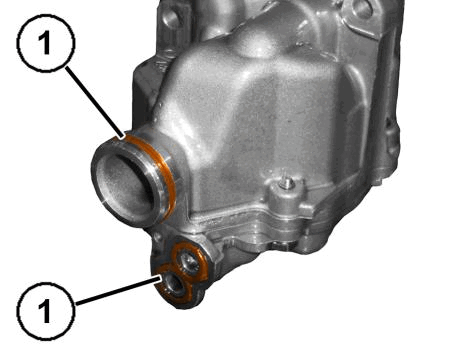

9. Remove the engine oil pump seals (1).

   Courtesy of CHRYSLER GROUP, LLC

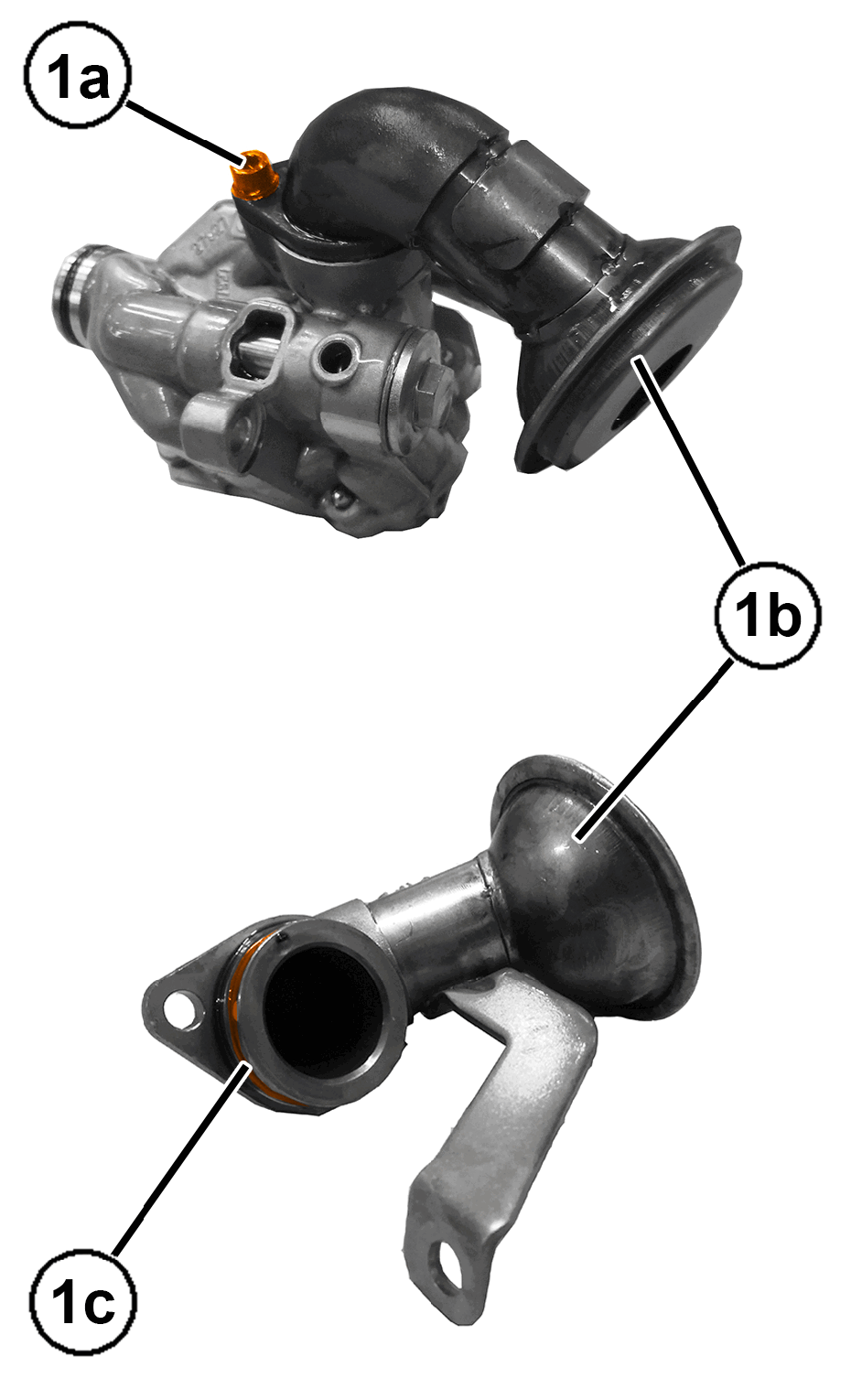

10. Remove the bolt (1a) and the oil pump pick-up tube (1b) complete with O-ring (1c).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

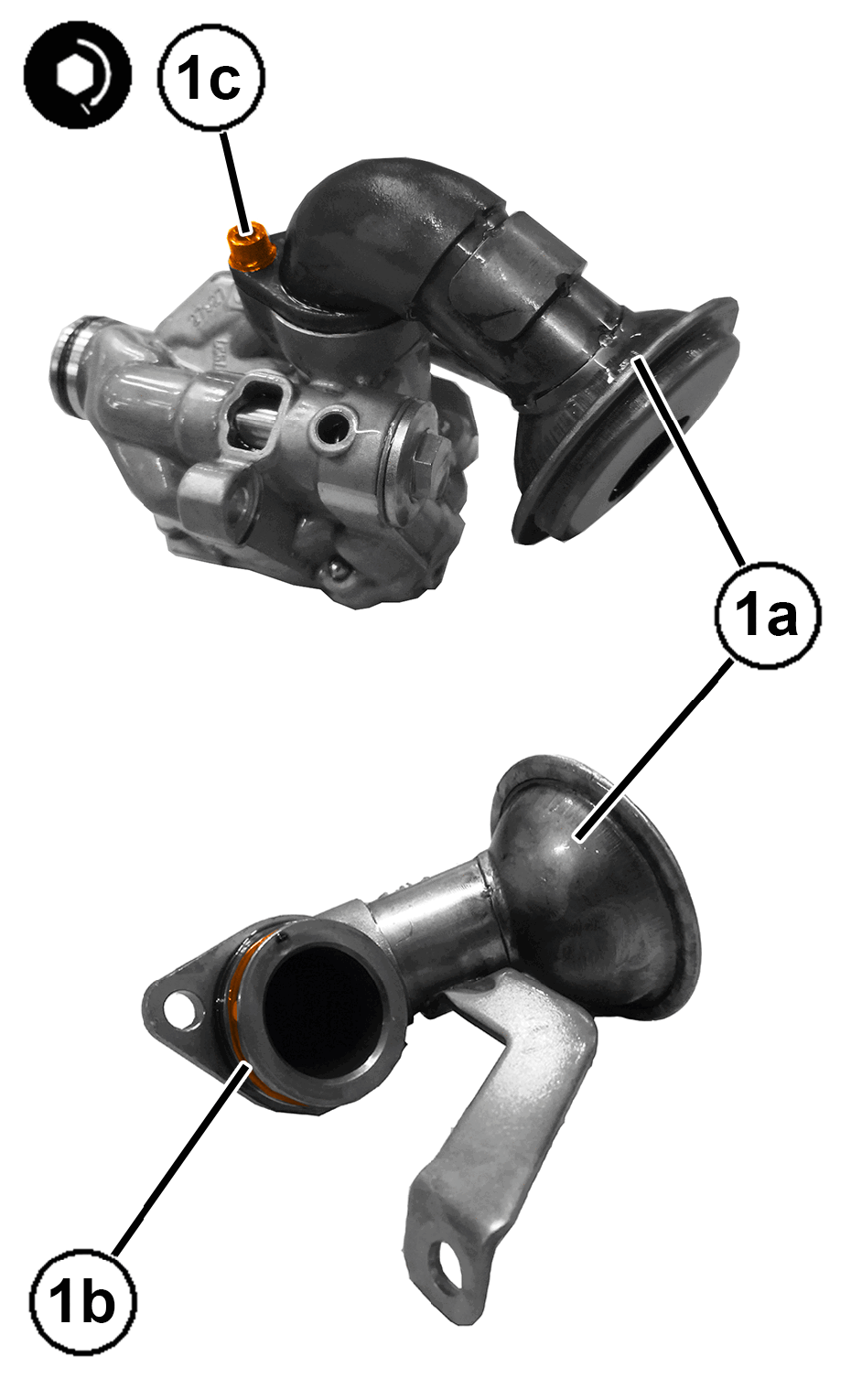

1. Using a NEW  O-ring (1b), install the oil pump pick-up tube (1a) and tighten the bolt (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

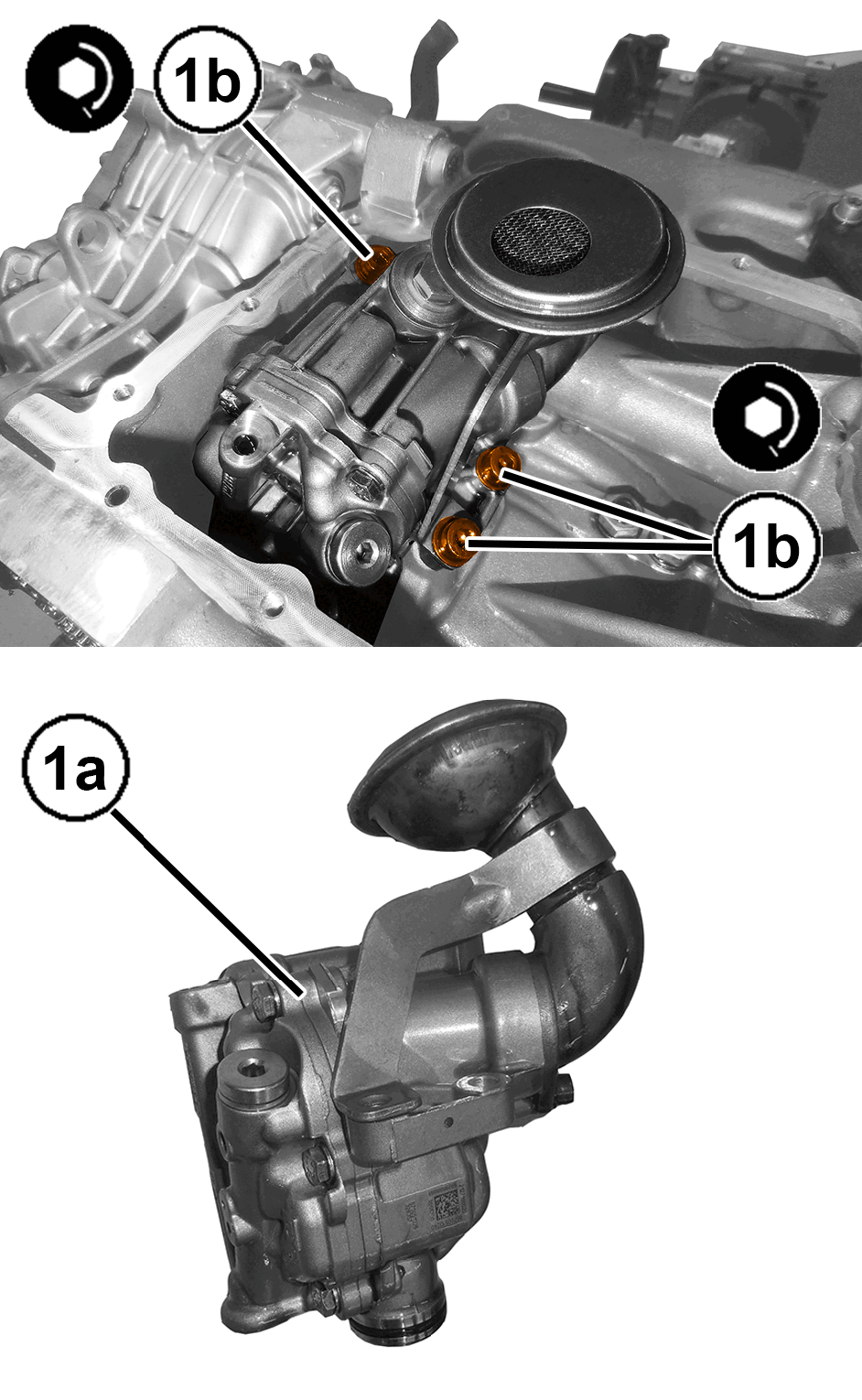

2. Using NEW  seals, install the engine oil pump (1a) and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the engine oil pump drive shaft into its housing (1).

   Courtesy of CHRYSLER GROUP, LLC

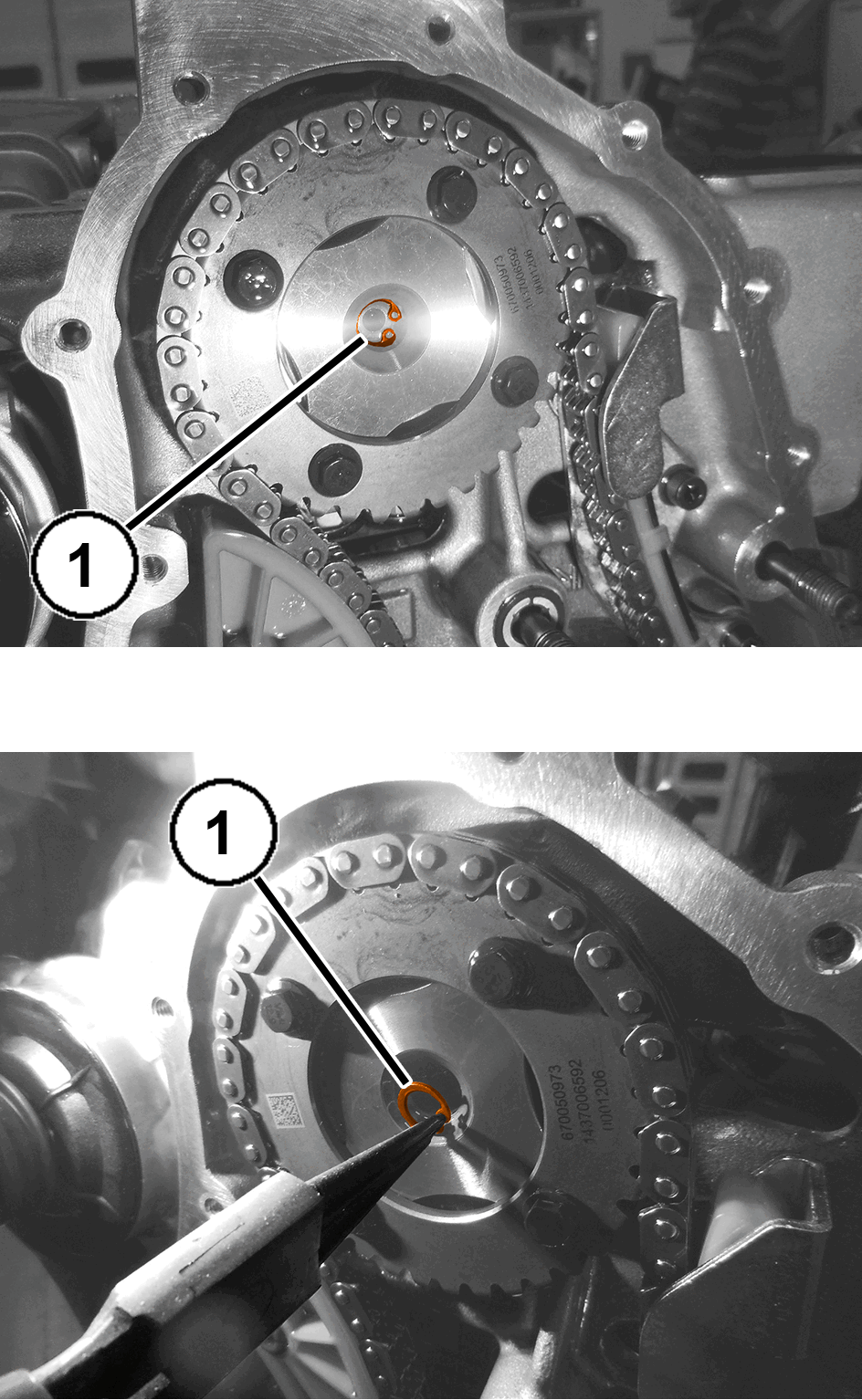

4. Install and secure the snap ring (1).

   Courtesy of CHRYSLER GROUP, LLC

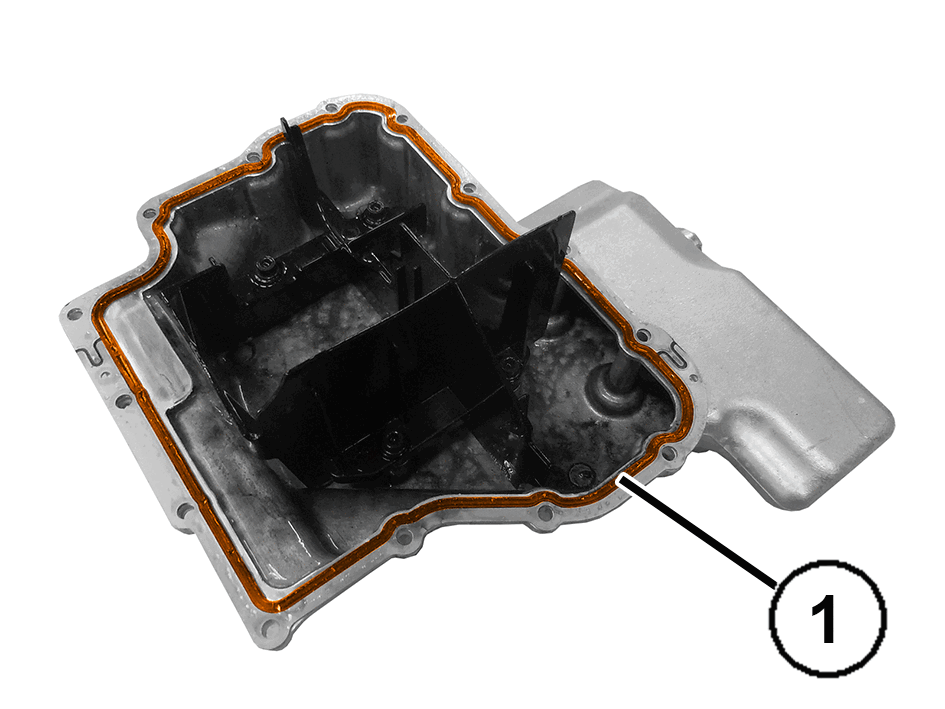

5. Install a NEW  oil pan gasket (1).

   Courtesy of CHRYSLER GROUP, LLC

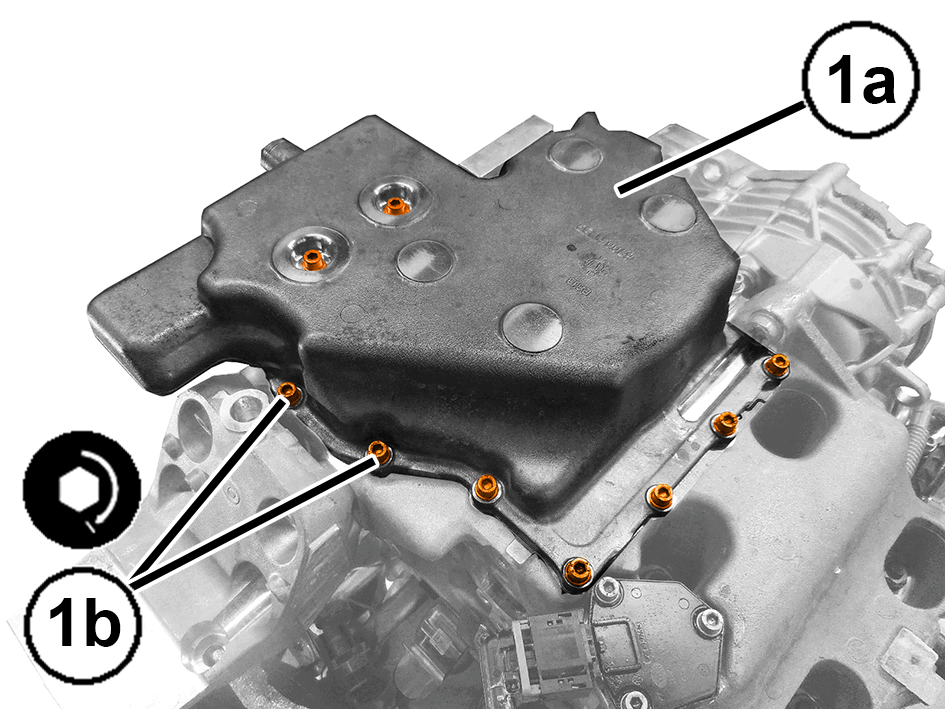

6. Install the oil pan (1a) and tighten the bolts (1b) finger tight.

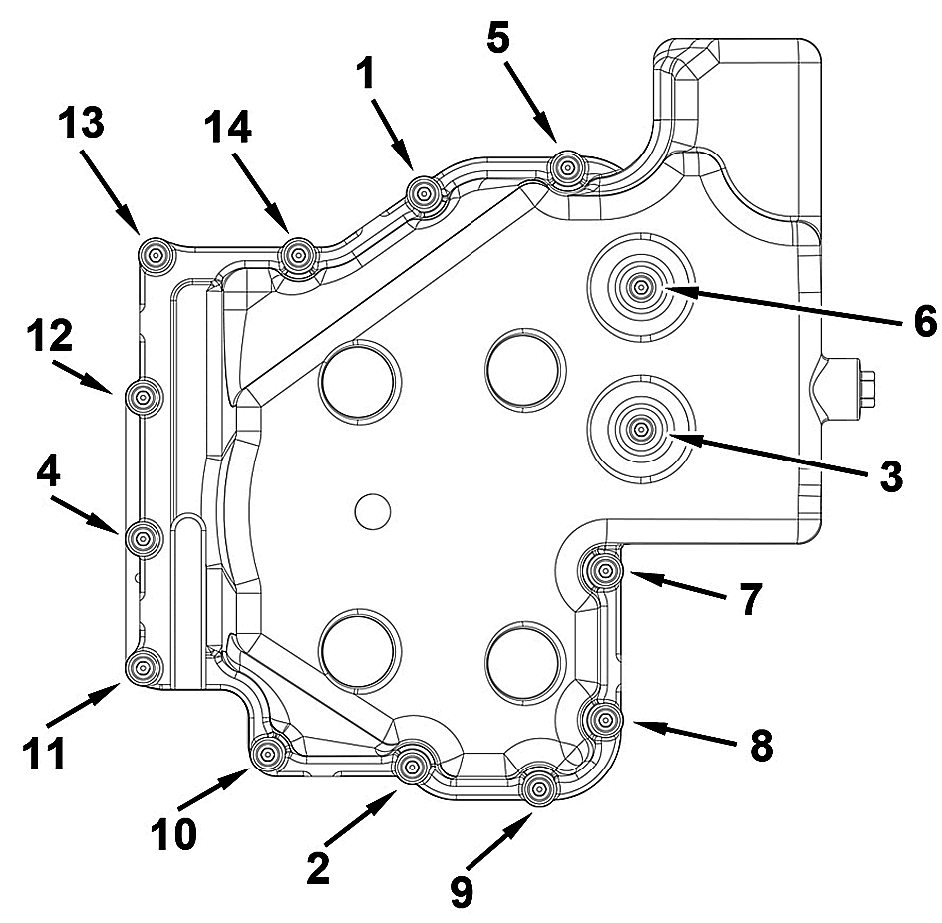

   Fig 1: Oil Pan Bolts Tightening Sequence

   Courtesy of CHRYSLER GROUP, LLC
7. Using the tightening sequence shown in illustration, tighten the oil pan bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
8. Install the engine timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .
9. Connect the negative battery cable.
