Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the right side turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
    GC0195728Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine oil dipstick.

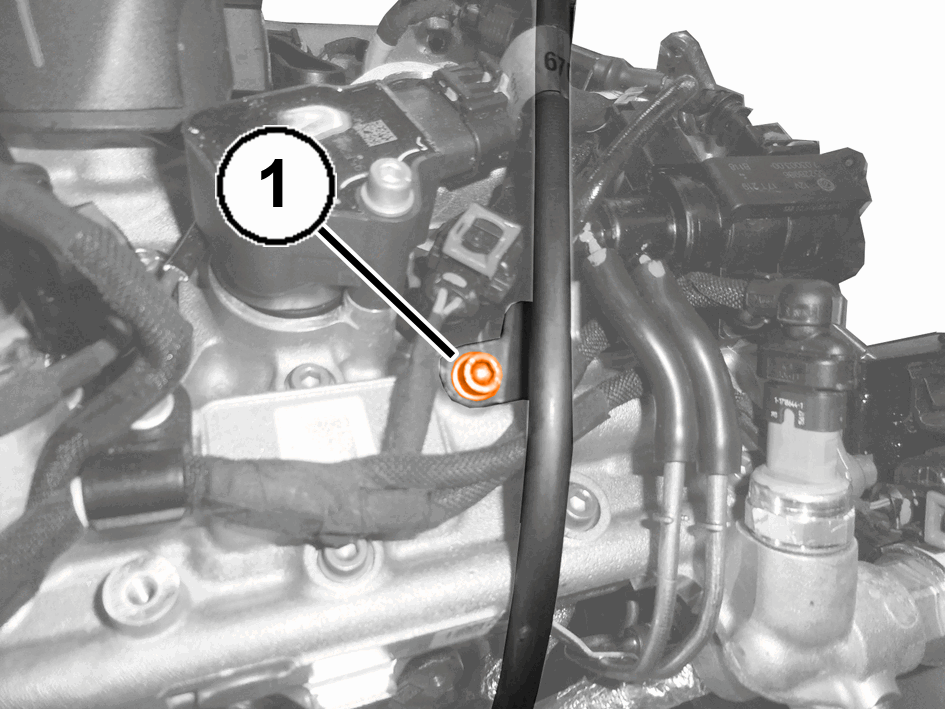

  3. Remove the bolt (1) securing the engine oil dipstick tube.
    GC0197310Courtesy of CHRYSLER GROUP, LLC

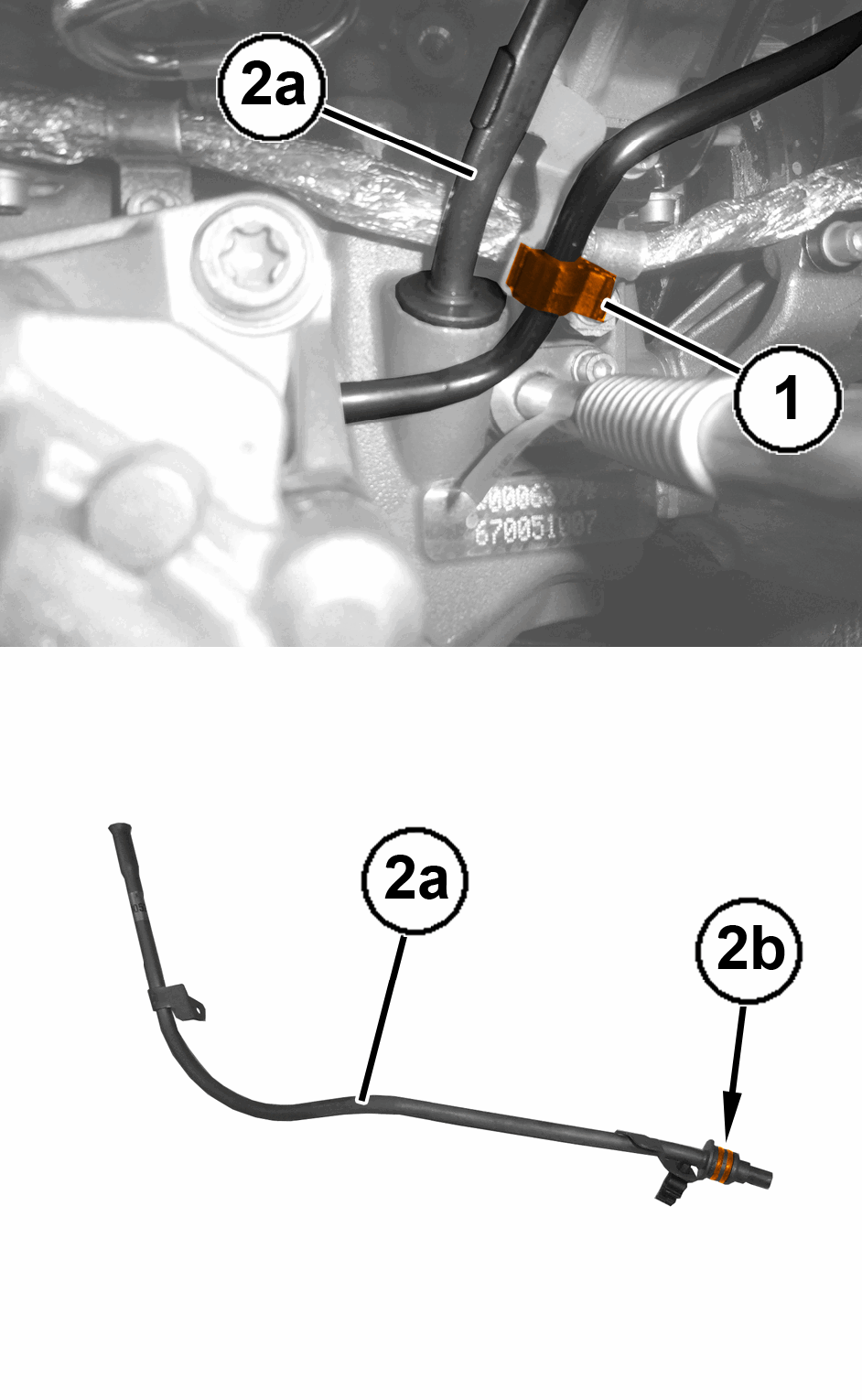

  4. Disengage the retaining clip (1) and remove the front differential vent tube.
  5. Remove the engine oil dipstick tube (2a) with O-rings (2b).

INSTALLATION

GC0196638Courtesy of CHRYSLER GROUP, LLC

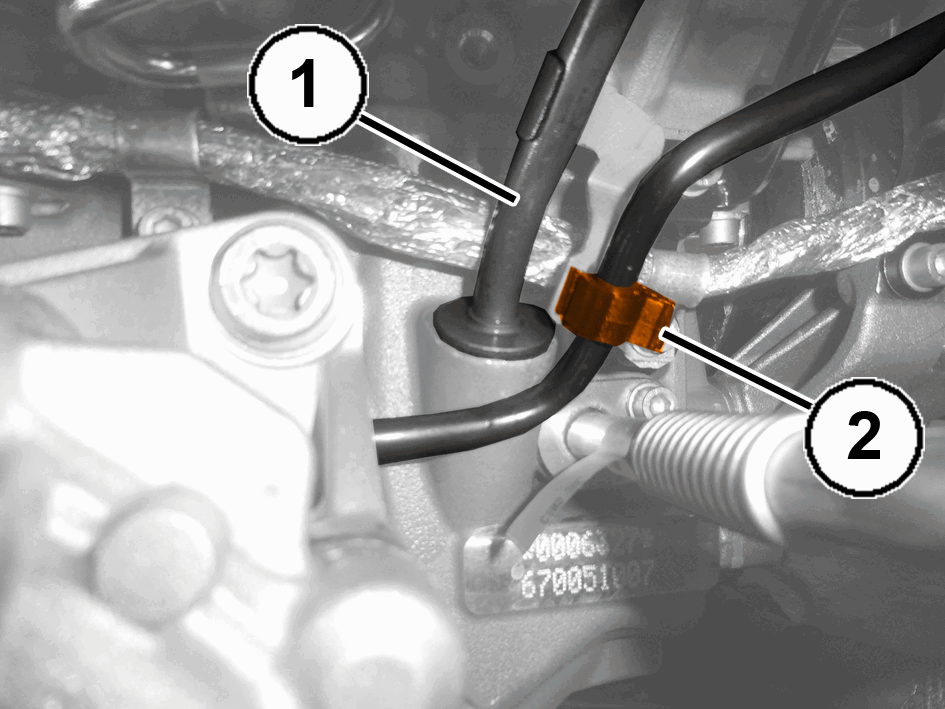

  1. Using NEW  O-rings, install the dipstick tube (1).
  2. Secure the retaining clip (2) for the front differential vent tube.
    GC0196287Courtesy of CHRYSLER GROUP, LLC

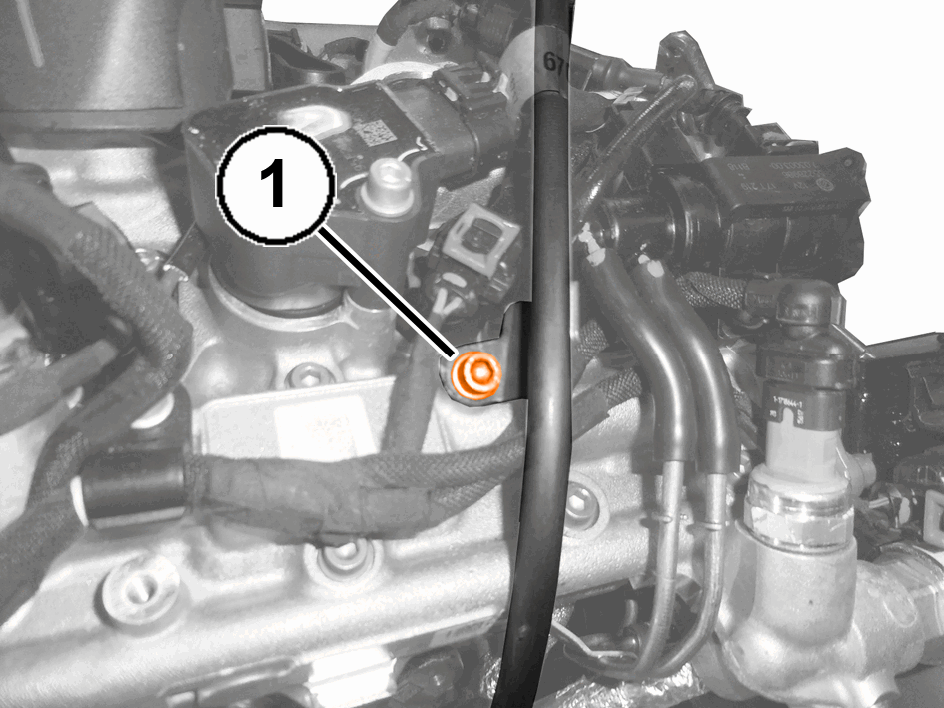

  3. Securely tighten the oil dipstick tube retaining bolt (1).
  4. Install the engine oil dipstick.
  5. Install the right side turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
