Checking Engine Oil Pressure
WARNING: This page is about a different variant/trim than selected.
- Remove the RH turbocharger deactivation solenoid. Refer to SOLENOID, DEACTIVATION, REMOVAL AND INSTALLATION .

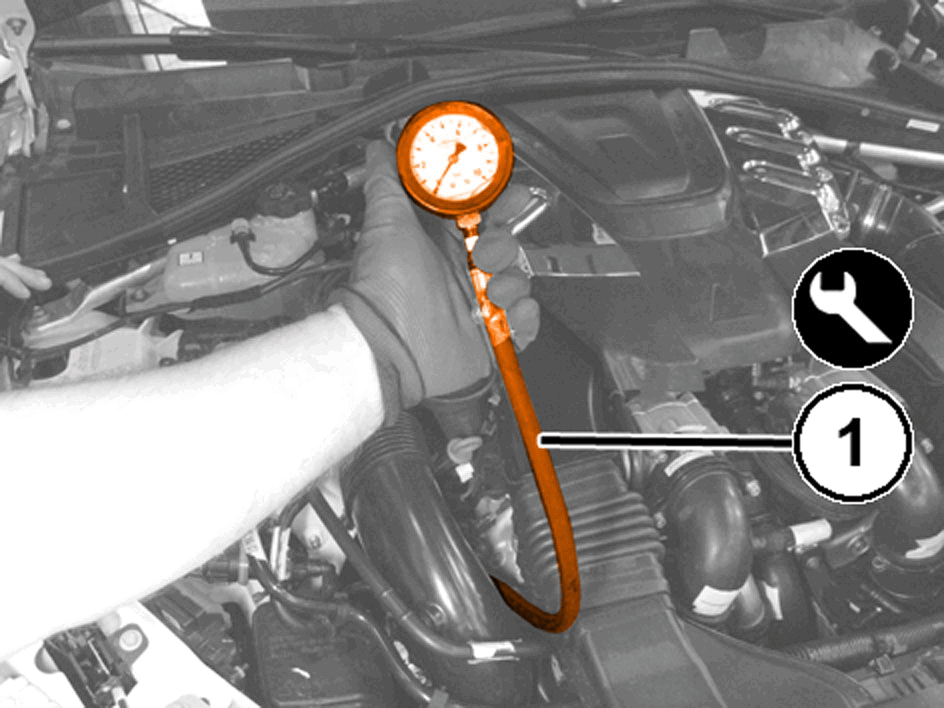

- Install a suitable oil pressure tool (1) into the deactivation solenoid port.
- Check that the engine oil pressure is within the following limits:
- 22 PSI +/- 4 PSI @ 2500 rpm with engine oil temperature 176 °F +/- 41 °F
