Removal And Installation

REMOVAL

1. Remove the oil filter housing. Refer to HOUSING, OIL FILTER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

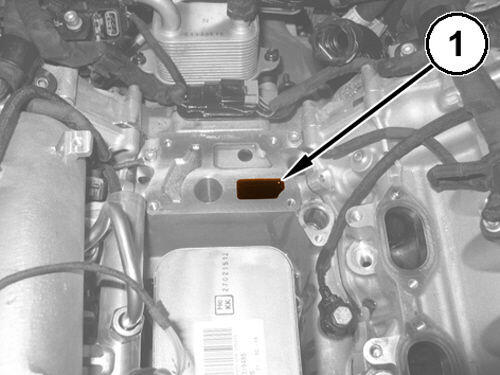

2. Remove the engine oil from the port (1) using a suitable suction gun.

   Courtesy of CHRYSLER GROUP, LLC

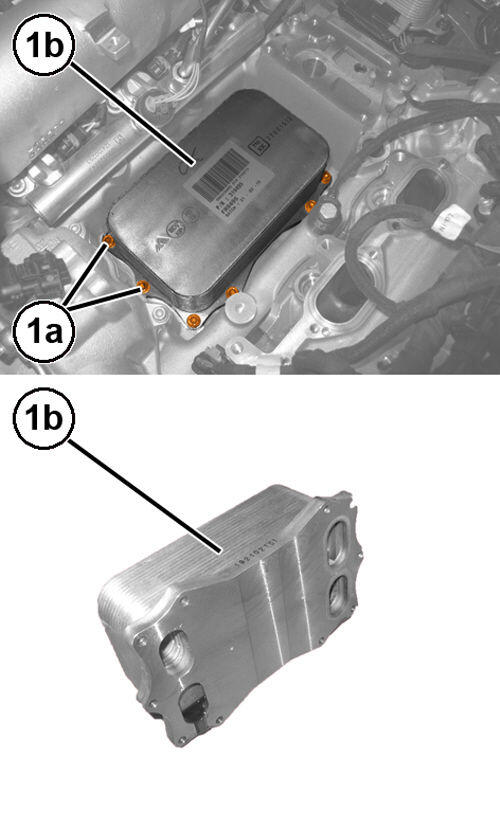

3. Remove the bolts (1a) and the engine oil cooler (1b).
4. Prepare a suitable container for retrieving the engine oil and the coolant contained in the engine oil cooler.
5. Using a suitable suction gun, remove the liquid from the housing on the engine oil cooler.

   Courtesy of CHRYSLER GROUP, LLC

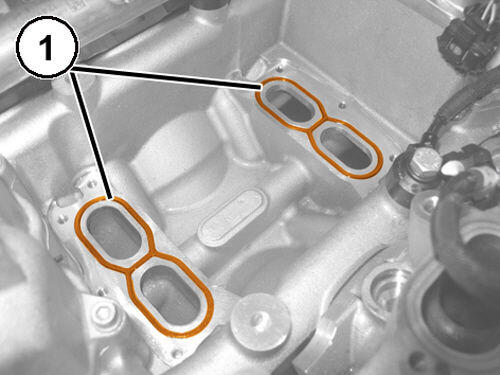

6. Remove the seals (1).

INSTALLATION

1. Carefully clean the engine oil cooler housing.
2. Install a NEW  seals in the engine oil cooler housing.

   Courtesy of CHRYSLER GROUP, LLC

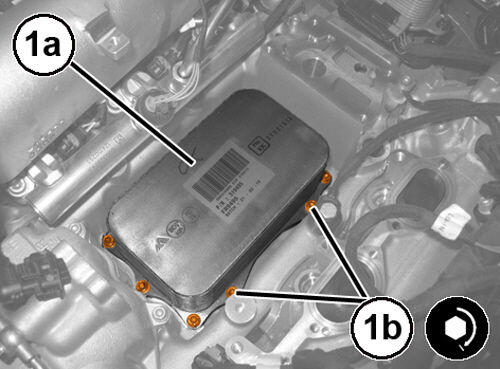

3. Install the engine oil cooler (1a) and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
4. Install the oil filter housing. Refer to HOUSING, OIL FILTER, REMOVAL AND INSTALLATION .
