Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .

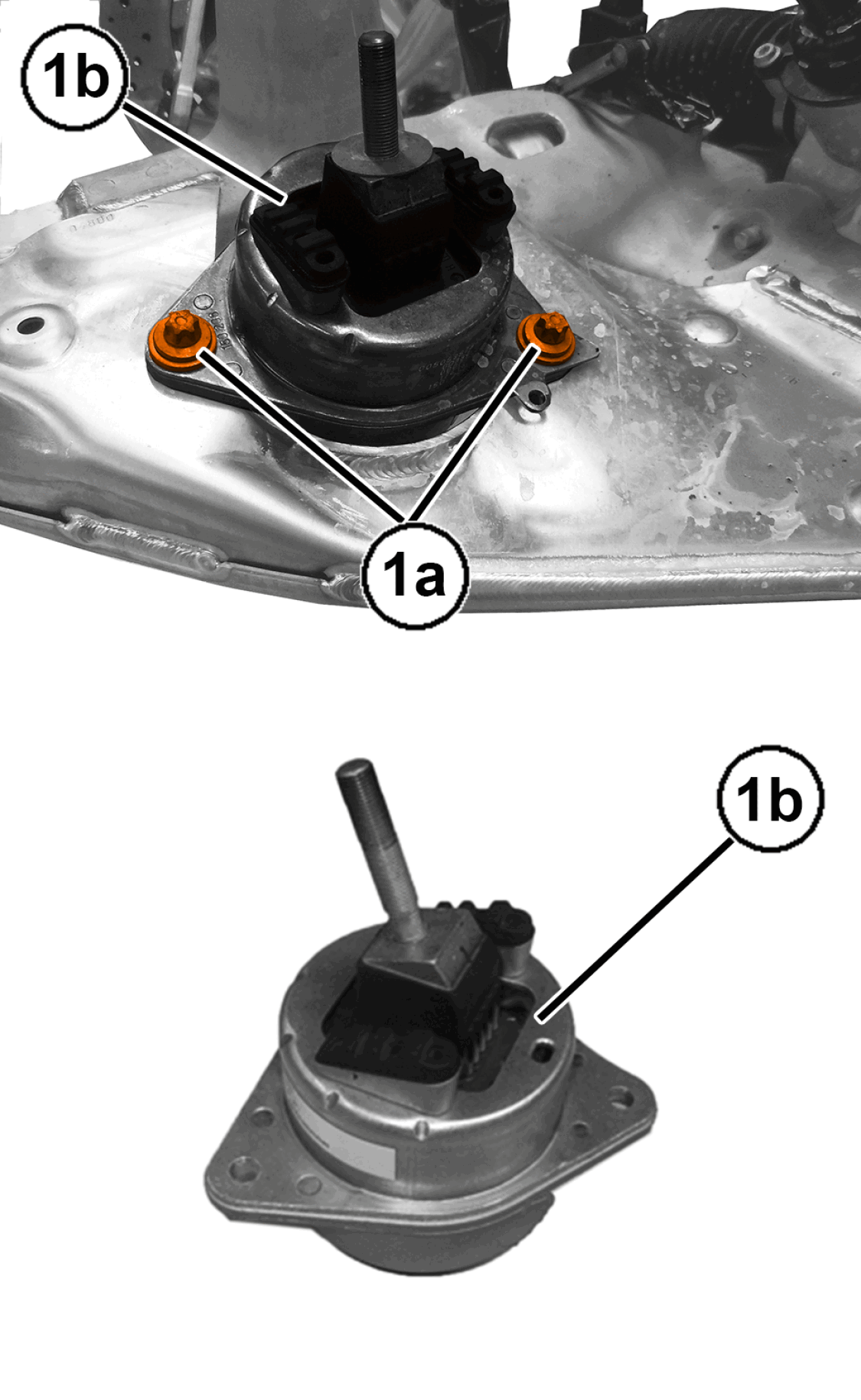

    GC0196896Courtesy of CHRYSLER GROUP, LLC
  2. Working of both right and left sides, remove the bolts (1a) and the engine mounts (1b).

INSTALLATION

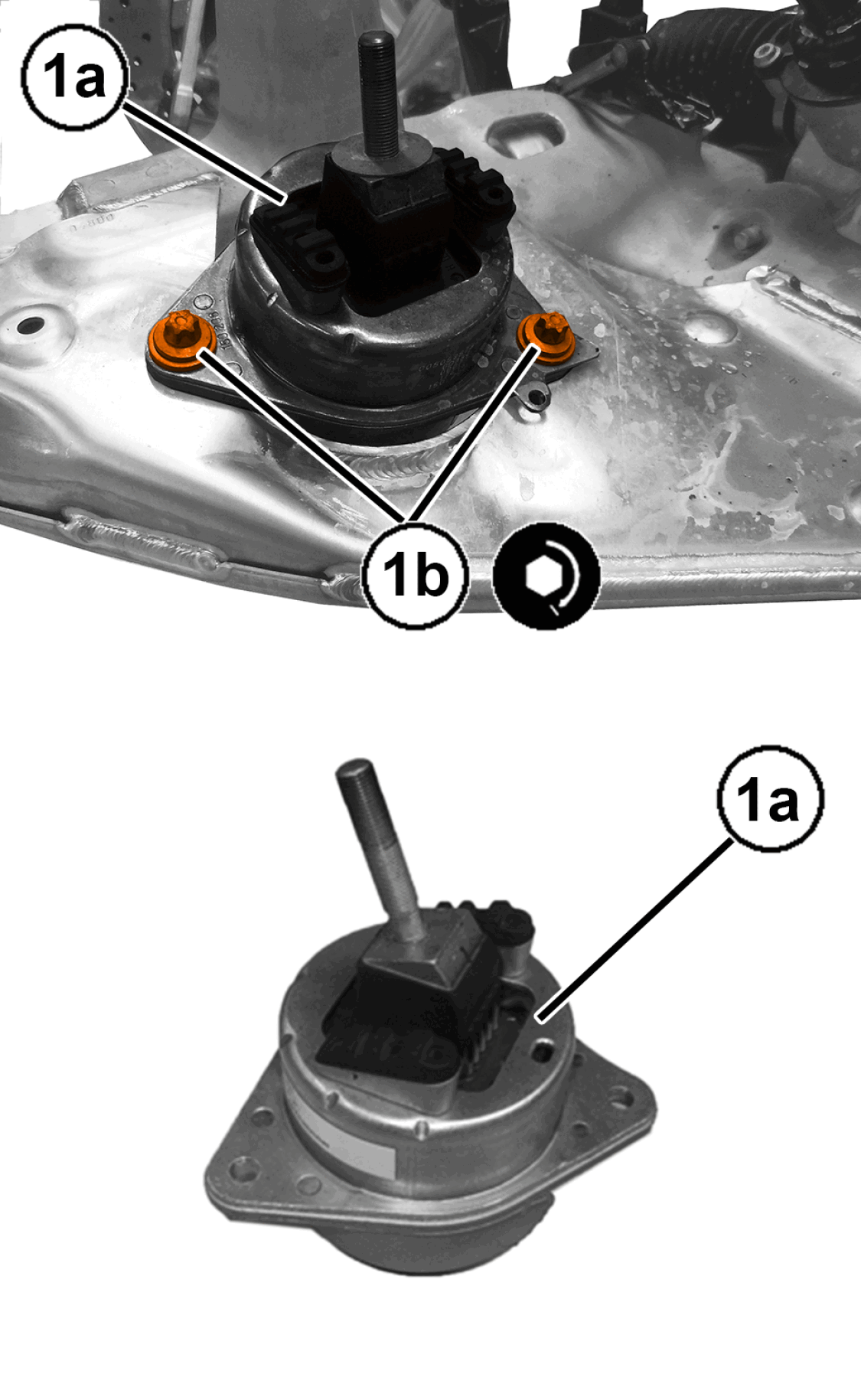

GC0196690Courtesy of CHRYSLER GROUP, LLC
  1. Working on both right and left sides, install engine mounts (1a) and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
